Top Link Standard Duty (Cat.0/0) Ball and Ball, Min. Length: 320mm.
Part Number: S.4419Categories: PTO (shaft), Linkage
Part Number: S.4419
Grade: Replacement
Part Details

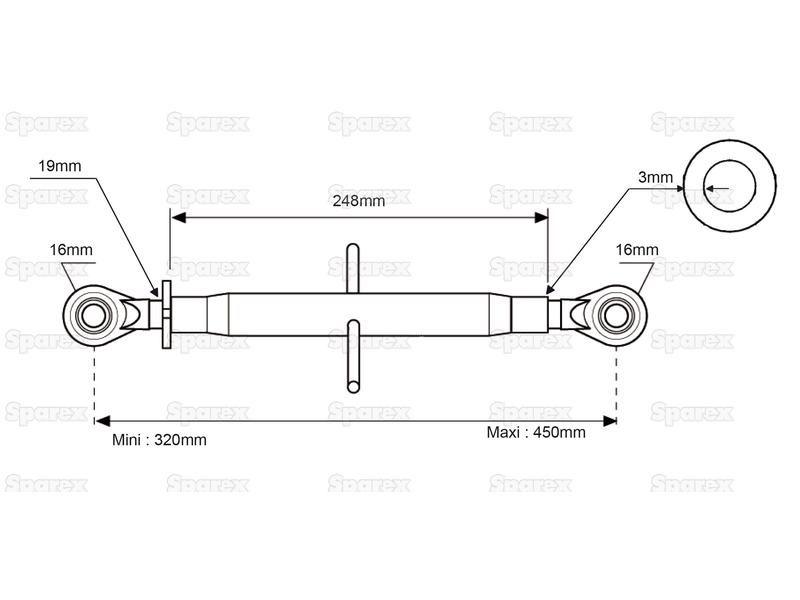

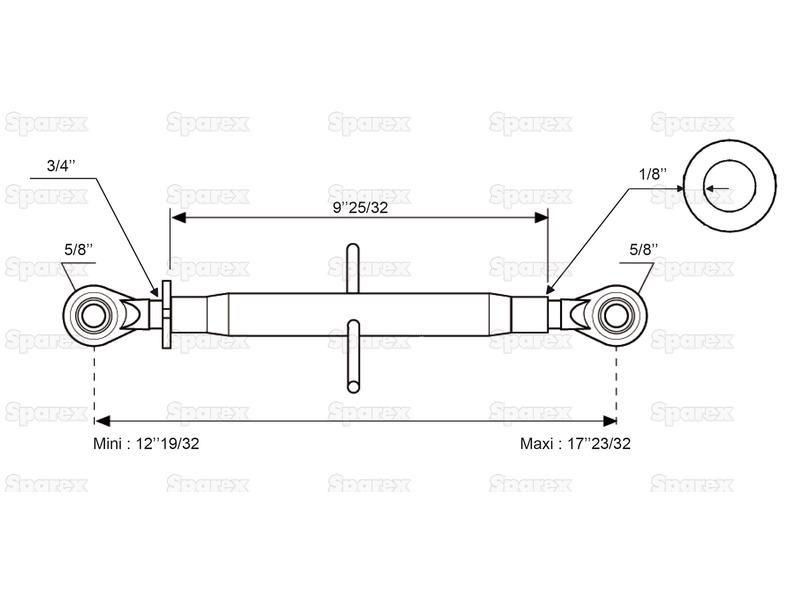

Top Link Standard Duty (Cat.0/0) Ball and Ball, Min. Length: 320mm. Tube length: 248mm,Min. Length: 320mm,Max. Length: 450mm,Thread size: 3/4''
Technical Information
| Brand | Sparex |
| Category | 0/0 |
| Category Implement End | 0 |
| Category Tractor End | 0 |
| Centre Tube | S.4421 |
| Centre Tube Size mm | 34 x 3 |
| Colour | Red |
| Implement End | Ball |
| Locking Collar | S.348 |
| Maximum Length ins | 17 27/32 |
| Maximum Length mm | 450 |
| Minimum Length ins | 12 19/32 |
| Minimum Length mm | 320 |
| Related Products | 1008, 15876, 333, 348, 4422, 4423 |
| Replacement Implement End | S.4423 |
| Replacement Tractor End | S.4422 |
| Suitable for Tractors up to hp kW | 30hp (22kW) |
| Tariff Code | 8708999790 |
| Thread size | 3/4'' |
| Thread type | UNC |
| Tommy Bar | S.333 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 25.4 |
| Tube Length ins | 9 3/4 |
| Tube length mm | 248 |
