Top link pin 19x58mm Cat. 1 for John Deere, Massey Ferguson, Valmet & Valtra, Challenger, Case IH
Part Number: S.15011Categories: PTO (shaft), Linkage
Part Number: S.15011
Grade: Replacement
Part Details

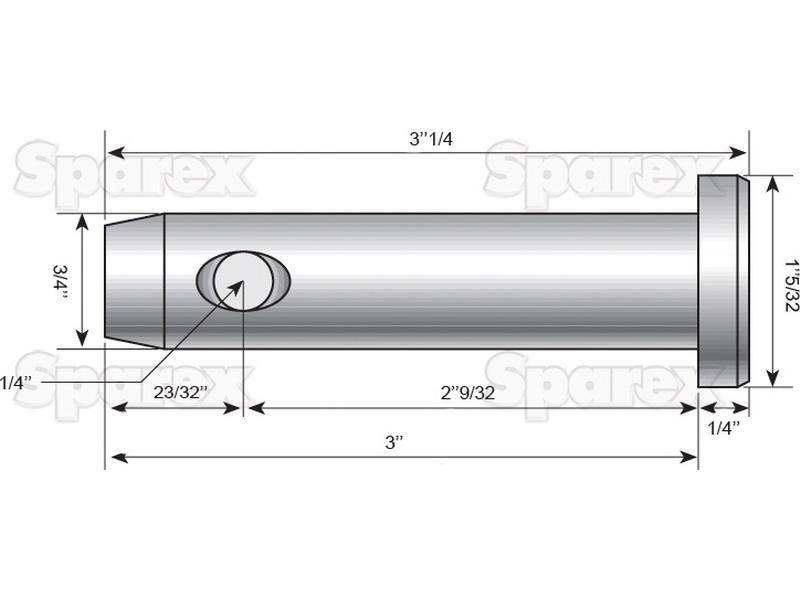

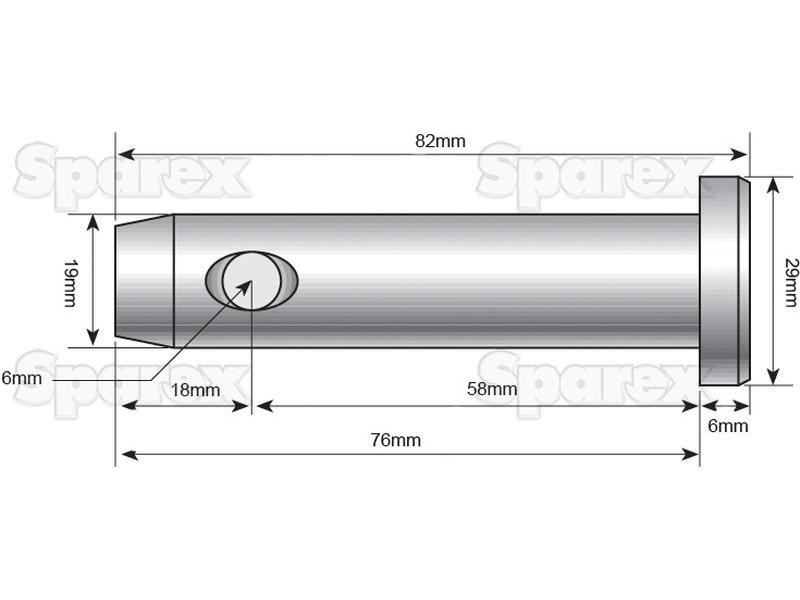

Top link pin 19x58mm Cat. 1 Pin Ø: 19mm, Working length:58mm, Overall length: 82mm, Head Ø: 29mm, Hole Ø: 6mm
Technical Information
| A Ø ins | 1/4 |
| A Ø mm | 6 |
| A ins | 3 7/32 |
| A mm | 82 |
| B Ø ins | 1 1/8 |
| B Ø mm | 29 |
| B ins | 3 |
| B mm | 76 |
| Brand | Sparex |
| C ins | 2 1/4 |
| C mm | 58 |
| Category | 1 |
| Head Ø ins | 1 5/32 |
| Head Ø mm | 29 |
| Hole Ø ins | 1/4 |
| Hole Ø mm | 6 |
| Overall length ins | 3 1/4 |
| Overall length mm | 82 |
| Pin Ø ins | 3/4 |
| Pin Ø mm | 19 |
| Pin Type | Standard |
| Tariff Code | 8708999790 |
| Working length ins | 2 9/32 |
| Working length mm | 58 |
Models
| Challenger |
|---|
| MT445B, MT455B, MT465B, MT475B, MT485D, MT515D, MT515E, MT525B, MT525D, MT535B, MT535D, MT545B, MT545D, MT545E, MT555B, MT565B, MT565D, MT575B, MT585B, MT585D, MT595B, MT595D, MT635B, MT645C, MT655B, MT655C, MT675C |
| John Deere |
| 5039D, 5055E, 5065E, 5075E, 5090E, 5100E |
| Massey Ferguson |
| 3050 (3000 Series), 3060 (3000 Series), 3065 (3000 Series), 3075 (3000 Series), 3085 (3000 Series), 3095 (3000 Series), 3120 (3000 Series), 3125 (3000 Series), 3635 (3600 Series), 3645 (3600 Series), 3655 (3600 Series), 3670 (3600 Series), 3690 (3600 Series), 5425 (5400 Series), 5435 (5400 Series), 5435 (5400 Series), 5445 (5400 Series), 5455 (5400 Series), 5460 (5400 Series), 5460SA, 5465 (5400 Series), 5470 (5400 Series), 5475, 5480 (5400 Series), 6110 (6100 Series), 6120 (6100 Series), 6130 (6100 Series), 6140 (6100 Series), 6150 (6100 Series), 6160 (6100 Series), 6170 (6100 Series), 6180 (6100 Series), 6190 (6100 Series), 6235 (6200 Series), 6245 (6200 Series), 6255 (6200 Series), 6260 (6200 Series), 6270 (6200 Series), 6280 (6200 Series), 6290 (6200 Series), 6445 (6400 Series), 6455 (6400 Series), 6460 (6400 Series), 6465 (6400 Series), 6470 (6400 Series), 6475 (6400 Series), 6480 (6400 Series), 6485 (6400 Series), 6490 (6400 Series), 6495 (6400 Series), 6497 (6400 Series), 6499 (6400 Series), 6612 DYNA 4, 6613 DYNA 4, 6613 DYNA 6, 6614 DYNA 6, 6614 DYNA VT, 6615 DYNA 4, 6615 DYNA 6, 6615 DYNA VT, 6616 DYNA 6, 6616 DYNA VT, 6712 S DYNA 4, 6713 S DYNA 4, 6713 S DYNA 6, 6713 S DYNA VT, 6714 S DYNA 4, 6714 S DYNA 6, 6714 S DYNA VT, 6715 S DYNA 4, 6715 S DYNA 6, 6715 S DYNA VT, 6716 S DYNA 6, 6716 S DYNA VT, 6718 S DYNA 6, 6718 S DYNA VT, 7465 (7400 Series), 7475 (7400 Series), 7480 (7400 Series), 7485 (7400 Series), 7490 (7400 Series), 7495 (7400 Series), 7497, 7499, 7614 DYNA 4, 7615 DYNA 4, 7615 DYNA 6, 7615 DYNA VT/DYNA STEP, 7616 DYNA 6, 7616 DYNA VT/DYNA STEP, 7618 DYNA 6, 7618 DYNA VT/DYNA STEP, 7619 DYNA 6, 7619 DYNA VT, 7620 DYNA 6, 7622 DYNA 6, 7622 DYNA VT, 7624 DYNA 6, 7624 DYNA VT, 7626 DYNA 6, 7714 DYNA 4, 7714 S DYNA 4, 7715 DYNA 4, 7715 DYNA 6, 7715 DYNA VT, 7715 S DYNA 4, 7715 S DYNA 6, 7715 S DYNA VT, 7716 DYNA 6, 7716 DYNA VT, 7716 S DYNA 6, 7716 S DYNA VT, 7718 DYNA 6, 7718 DYNA VT, 7718 S DYNA 6, 7718 S DYNA VT, 7719 DYNA 6, 7719 DYNA VT, 7719 S DYNA VT, 7720 DYNA VT, 7720 S DYNA VT, 7722 DYNA VT, 7722 S DYNA VT, 7724 DYNA VT, 7724 S DYNA VT, 7726 DYNA VT, 7726 S DYNA VT, 8110 (8100 Series), 8120 (8100 Series), 8130 (8100 Series), 8140 (8100 Series), 8150 (8100 Series), 8160 (8100 Series), 8170 (8100 Series), 8180 (8100 Series), 8210 (8200 Series), 8220 (8200 Series), 8230, 8240 (8200 Series), 8245, 8250 (8200 Series), 8260 (8200 Series), 8270 (8200 Series), 8280 (8200 Series), 8450 (8400 Series), 8460 (8400 Series), 8470 (8400 Series), 8480 (8400 Series), 8650, 8660, 8670, 8680, 8690 (8600 Series), 8727, 8727 S, 8730, 8730 S, 8732, 8732 S, 8735, 8735 S, 8737, 8737 S, 8740, 8740 S |
| Valmet & Valtra |
| N114E, N124, N134, N154E, N174, S232 (S Series), S233, S262 (S Series), S263, S274, S292 (S Series), S293, S294, S322 (S Series), S323, S324, S352 (S Series), S353, S354, S374, S394, T144, T154, T174E, T194, T214, T234, T254 |
Manufacturer Part Numbers
| Case IH |
|---|
| 47133051 |
| John Deere |
| R140960 |
| Massey Ferguson |
| 3019228X1 |
