Top link pin 19x116mm Cat. 1/2 for Case IH 574 (74 Series)
Part Number: S.110Categories: PTO (shaft), Linkage
Part Number: S.110
Grade: Replacement
Part Details

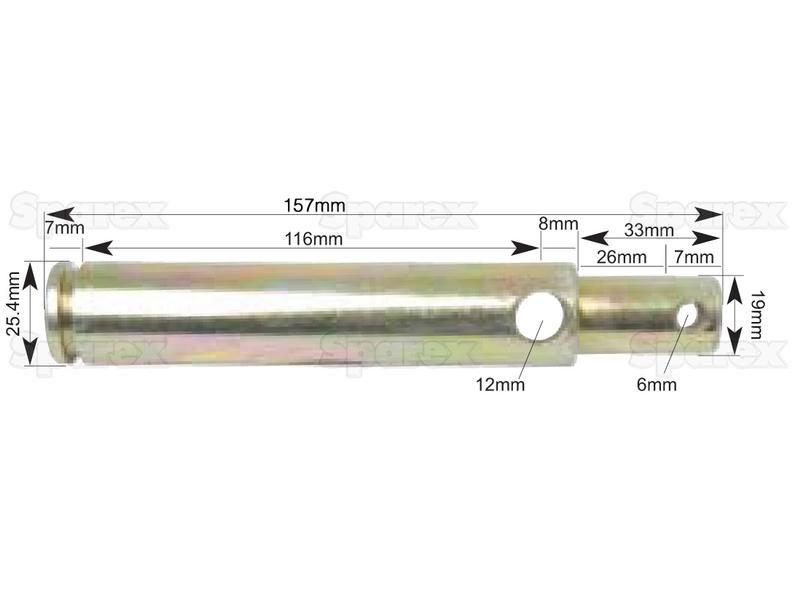

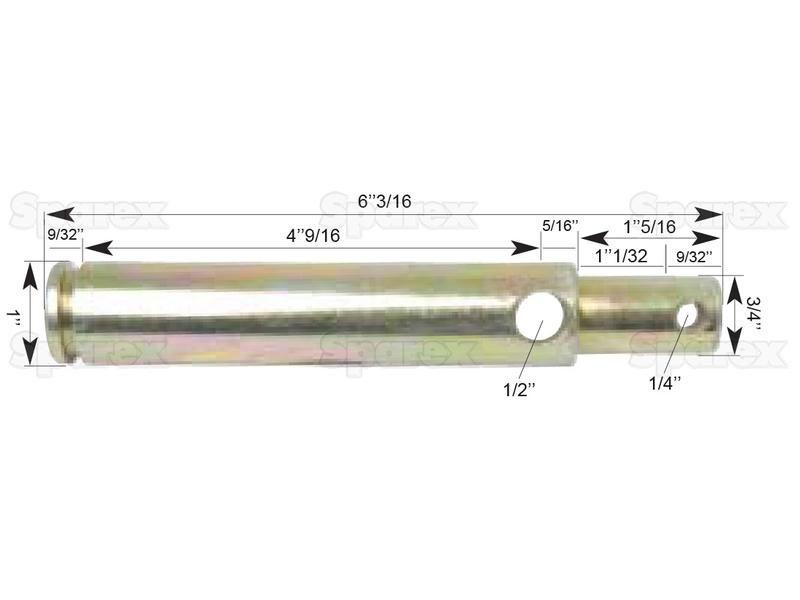

Top link pin 19x116mm Cat. 1/2 Pin Ø: 19mm, Working length:116mm, Overall length: 157mm, Head Ø: 25.4mm, Hole Ø: 12mm
Technical Information
| A ins | 6 3/16 |
| A mm | 157 |
| Brand | Sparex |
| Category | 1/2 |
| Head Ø ins | 1 |
| Head Ø mm | 25.4 |
| Hole Ø ins | 1/2 |
| Hole Ø mm | 12 |
| Overall length ins | 6 3/16 |
| Overall length mm | 157 |
| Pin Ø ins | 3/4 |
| Pin Ø mm | 19 |
| Pin Type | Standard |
| Tariff Code | 8708999790 |
| Working length ins | 4 9/16 |
| Working length mm | 116 |
Manufacturer Part Numbers
| Case IH |
|---|
| 130943A1, 1536396C1, 3074756R1, 528084R1, 704182R1 |
