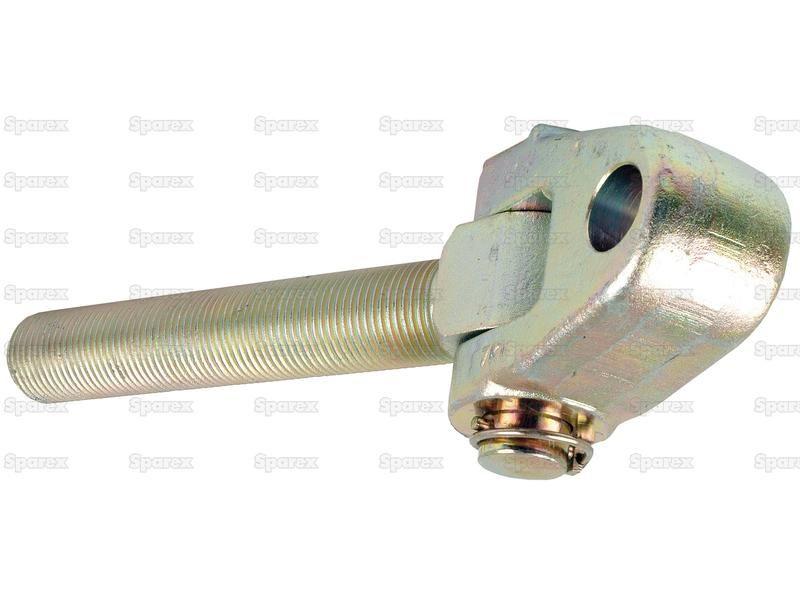

Top Link Knuckle Thread - Cat.3 - Thread size: M36x3 - RH
Part Number: S.29339Categories: PTO (shaft), Linkage
Part Number: S.29339
Grade: Replacement
Part Details
Top Link Knuckle Thread - Cat.3 - Thread size: M36x3 - RH Hole Ø: 32mm, Thread length:190mm, Overall length: 318mm
Technical Information
| Brand | Sparex |
| Category | 3 |
| End Radius ins | 1 17/64 |
| End Radius mm | 32 |
| Hole Ø ins | 1 1/4 |
| Hole Ø mm | 32 |
| Knuckle Bore Ø ins | 1 1/4 |
| Knuckle Bore Ø mm | 31.8 |
| Knuckle Width ins | 2 |
| Knuckle Width mm | 50.8 |
| LH or RH | RH |
| Overall length ins | 12 33/64 |
| Overall length mm | 318 |
| Related Products | 10288 |
| Tariff Code | 8708999790 |
| Thread length ins | 7 1/2 |
| Thread length mm | 190 |
| Thread size | M36x3 |
| Thread type | Metric |
