Top Link Heavy Duty (Spring Lock) (Cat.3/3) Knuckle and Q.R. Hook, Min. Length: 740mm.
Part Number: S.29796Categories: PTO (shaft), Linkage
Part Number: S.29796
Grade: Replacement
Part Details

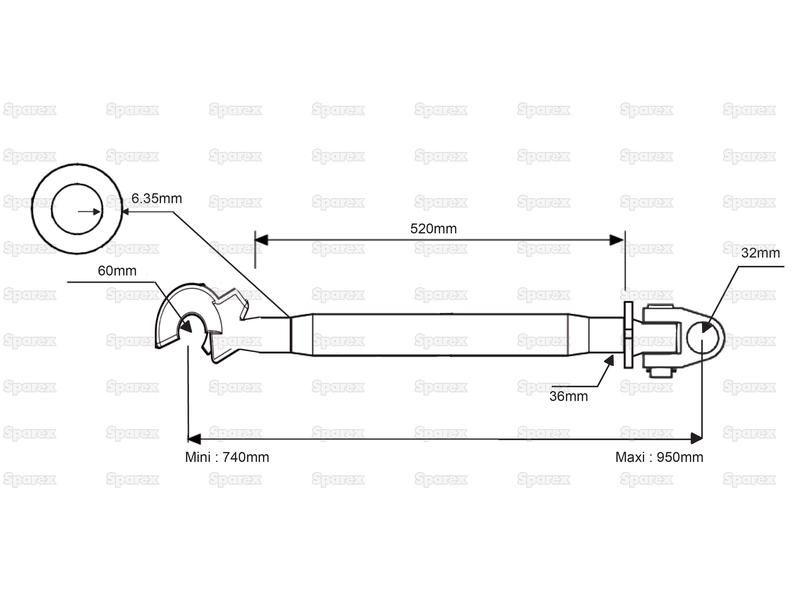

Top Link Heavy Duty (Spring Lock) (Cat.3/3) Knuckle and Q.R. Hook, Min. Length: 740mm. Tube length: 520mm,Min. Length: 740mm,Max. Length: 950mm,Thread size: M36 x 3
Technical Information
| Brand | Sparex |
| Category | 3/3 |
| Category Implement End | 3 |
| Category Tractor End | 3 |
| Centre Tube | S.29324 |
| Centre Tube Size mm | 60.3 x 6.35 |
| Colour | Black |
| Duty | Heavy |
| Implement End | Q.R. Hook |
| Knuckle Width mm | 51 |
| Locking Collar | Spring Clip |
| Maximum Length ins | 37 3/8 |
| Maximum Length mm | 950 |
| Minimum Length ins | 29 |
| Minimum Length mm | 740 |
| Related Products | 13986, 14636, 29324, 29327, 33004, 33010, 33017, 148196, 148197 |
| Release Harness | S.33017 |
| Replacement Implement End | S.29327 |
| Replacement Tractor End | S.13986 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Release Harness |
| Tariff Code | 8708999790 |
| Thread size | M36 x 3.00 |
| Thread type | Metric |
| Tommy Bar | Retained |
| Tractor End | Knuckle |
| Tube Length ins | 20 1/2 |
| Tube length mm | 520 |
