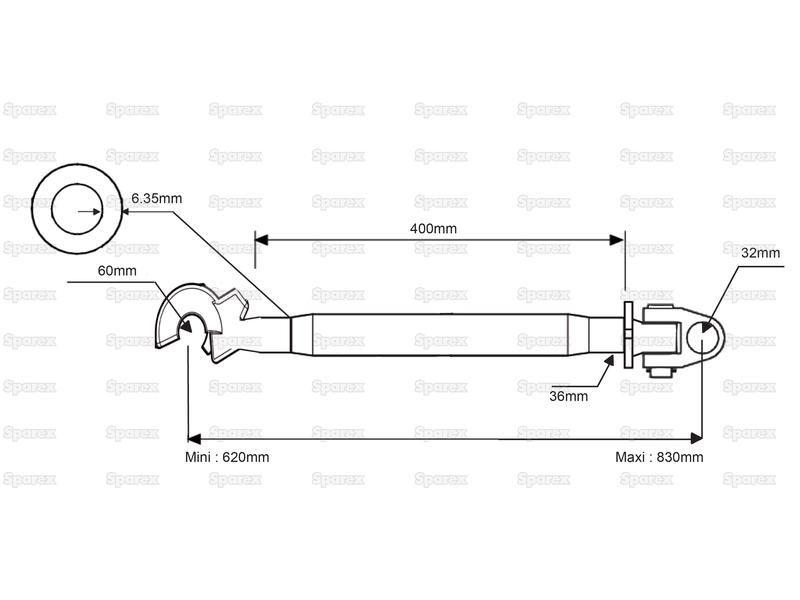

Top Link Heavy Duty (Spring Lock) (Cat.3/3) Knuckle and Q.R. Hook, Min. Length: 620mm. for Case IH, Fendt, Massey Ferguson
Part Number: S.29784Categories: PTO (shaft), Linkage
Part Number: S.29784
Grade: Replacement
Part Details
Top Link Heavy Duty (Spring Lock) (Cat.3/3) Knuckle and Q.R. Hook, Min. Length: 620mm. Tube length: 400mm,Min. Length: 620mm,Max. Length: 830mm,Thread size: M36 x 3
Technical Information
| Brand | Sparex |
| Category | 3/3 |
| Category Implement End | 3 |
| Category Tractor End | 3 |
| Centre Tube | S.29322 |
| Centre Tube Size mm | 60.3 x 6.35 |
| Colour | Black |
| Duty | Heavy |
| Implement End | Q.R. Hook |
| Knuckle Width mm | 51 |
| Locking Collar | Spring Clip |
| Maximum Length ins | 32 3/4 |
| Maximum Length mm | 830 |
| Minimum Length ins | 24 3/8 |
| Minimum Length mm | 620 |
| Related Products | 13986, 14636, 29322, 29327, 33004, 33010, 33017, 148196, 148197 |
| Release Harness | S.33017 |
| Replacement Implement End | S.29327 |
| Replacement Tractor End | S.13986 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Release Harness |
| Tariff Code | 8708999790 |
| Thread size | M36 x 3.00 |
| Thread type | Metric |
| Tommy Bar | Retained |
| Tractor End | Knuckle |
| Tube Length ins | 15 3/4 |
| Tube length mm | 400 |
Models
| Case IH |
|---|
| Puma 185 (Puma Series), Puma 200 (Puma Series), PUMA 220 |
| Fendt |
| 512 VARIO, 513 VARIO, 514 VARIO, 516 VARIO |
| Massey Ferguson |
| 6712, 6712 S DYNA 4, 6713 S DYNA 4, 6713 S DYNA 6, 6714 S DYNA 6, 6715 S DYNA 4, 6715 S DYNA 6, 6716 S DYNA 6, 6718 S DYNA 6, 7714 DYNA 4, 7714 S DYNA 4, 7715 DYNA 4, 7715 S DYNA 4, 7716 DYNA 6, 7716 S DYNA 6, 7718 DYNA 6, 7718 S DYNA 6, 7719 DYNA 6, 7719 S DYNA VT, 7720 DYNA VT, 7720 S DYNA VT, 7722 DYNA VT, 7722 S DYNA VT, 7724 DYNA VT, 7724 S DYNA VT, 7726 DYNA VT, 7726 S DYNA VT |
