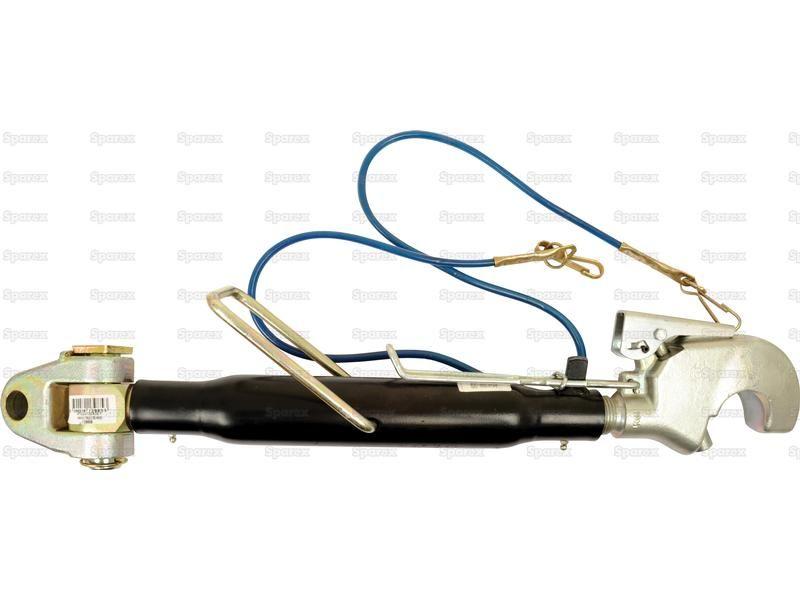

Top Link Heavy Duty (Spring Lock) (Cat.28mm/3) Knuckle and Q.R. Hook, Min. Length: 680mm. for Ford New Holland
Part Number: S.29788Categories: PTO (shaft), Linkage
Part Number: S.29788
Grade: Replacement
Part Details

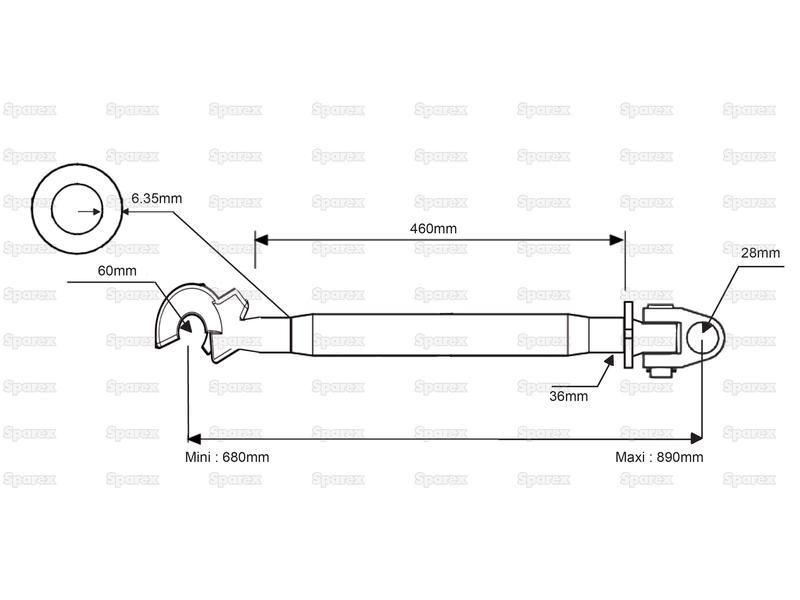

Top Link Heavy Duty (Spring Lock) (Cat.28mm/3) Knuckle and Q.R. Hook, Min. Length: 680mm. Tube length: 460mm,Min. Length: 680mm,Max. Length: 890mm,Thread size: M36 x 3
Technical Information
| Brand | Sparex |
| Category | 28mm/3 |
| Category Implement End | 3 |
| Category Tractor End | 28mm |
| Centre Tube | S.29323 |
| Centre Tube Size mm | 60.3 x 6.35 |
| Colour | Black |
| Duty | Heavy |
| Implement End | Q.R. Hook |
| Knuckle Width mm | 65 |
| Locking Collar | Spring Clip |
| Maximum Length ins | 35 |
| Maximum Length mm | 890 |
| Minimum Length ins | 26 3/4 |
| Minimum Length mm | 680 |
| Related Products | 13987, 14636, 29323, 29327, 33004, 33010, 33017, 148196, 148197 |
| Release Harness | S.33017 |
| Replacement Implement End | S.29327 |
| Replacement Tractor End | S.13987 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Release Harness |
| Tariff Code | 8708999790 |
| Thread size | M36x3 |
| Thread type | Metric |
| Tommy Bar | Retained |
| Tractor End | Knuckle |
| Tube Length ins | 18 7/64 |
| Tube length mm | 460 |
Models
| Ford New Holland |
|---|
| T7.170 (T7 Series), T7.175, T7.185 (T7 Series), T7.190, T7.200 (T7 Series), T7.210 (T7 Series) |
