Top Link Heavy Duty (Spring Lock) (Cat.28mm/3) Knuckle and Q.R. Hook, Min. Length: 620mm. for Case IH, Ford New Holland
Part Number: S.29781Categories: PTO (shaft), Linkage
Part Number: S.29781
Grade: Replacement
Part Details

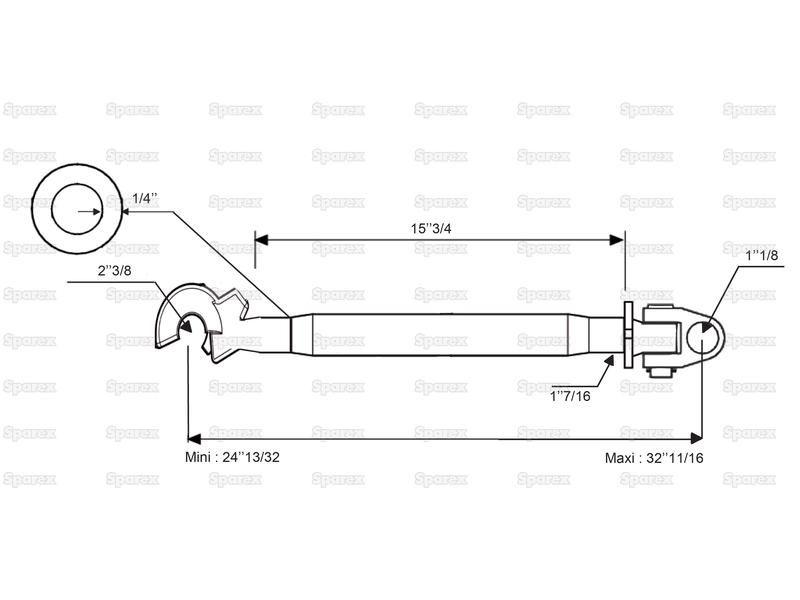

Top Link Heavy Duty (Spring Lock) (Cat.28mm/3) Knuckle and Q.R. Hook, Min. Length: 620mm. Tube length: 400mm,Min. Length: 620mm,Max. Length: 830mm,Thread size: M36 x 3
Technical Information
| Brand | Sparex |
| Category | 28mm/3 |
| Category Implement End | 3 |
| Category Tractor End | 28mm |
| Centre Tube | S.29322 |
| Centre Tube Size mm | 60.3 x 6.35 |
| Colour | Black |
| Duty | Heavy |
| Implement End | Q.R. Hook |
| Knuckle Width mm | 65 |
| Locking Collar | Spring Clip |
| Maximum Length ins | 32 3/4 |
| Maximum Length mm | 830 |
| Minimum Length ins | 24 3/8 |
| Minimum Length mm | 620 |
| Related Products | 13987, 14636, 29322, 29327, 33004, 33010, 33017, 148196, 148197 |
| Release Harness | S.33017 |
| Replacement Implement End | S.29327 |
| Replacement Tractor End | S.13987 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Release Harness |
| Tariff Code | 8708999790 |
| Thread size | M36 x 3.00 |
| Thread type | Metric |
| Tommy Bar | Retained |
| Tractor End | Knuckle |
| Tube Length ins | 15 3/4 |
| Tube length mm | 400 |
Models
| Case IH |
|---|
| Maxxum 100 (Maxxum Series), Maxxum 110 (Maxxum Series), Maxxum 115 (Maxxum Series), Maxxum 120 (Maxxum Series), Maxxum 125 (Maxxum Series), Maxxum 130 (Maxxum Series), MAXXUM 140, Puma 125 (Puma Series), Puma 130 (Puma Series), Puma 140 (Puma Series), Puma 145 (Puma Series), Puma 155 (Puma Series), PUMA 160, Puma 165 (Puma Series) |
| Ford New Holland |
| T6.120 (T6 Series), T6.140 (T6 Series), T6.150 (T6 Series), T6.155 (T6 Series), T6.160 (T6 Series), T6.165 (T6 Series), T6.175 (T6 Series) |
