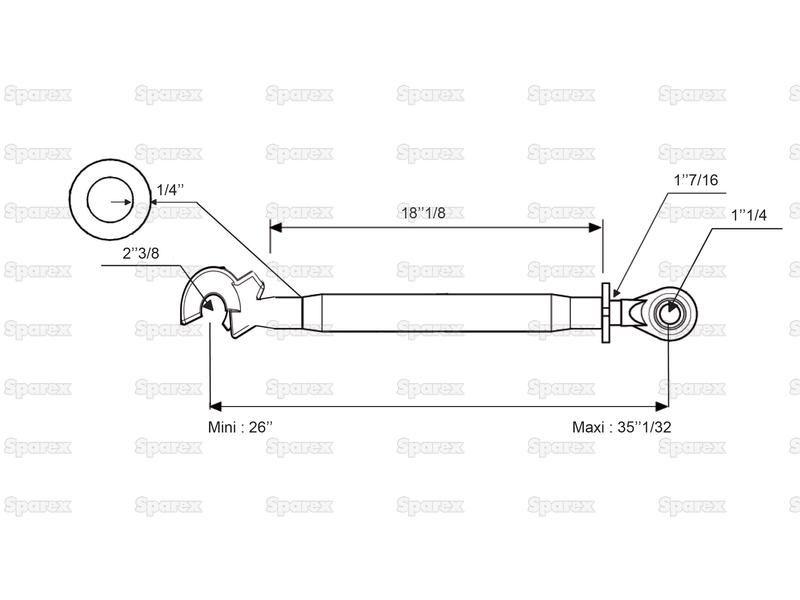

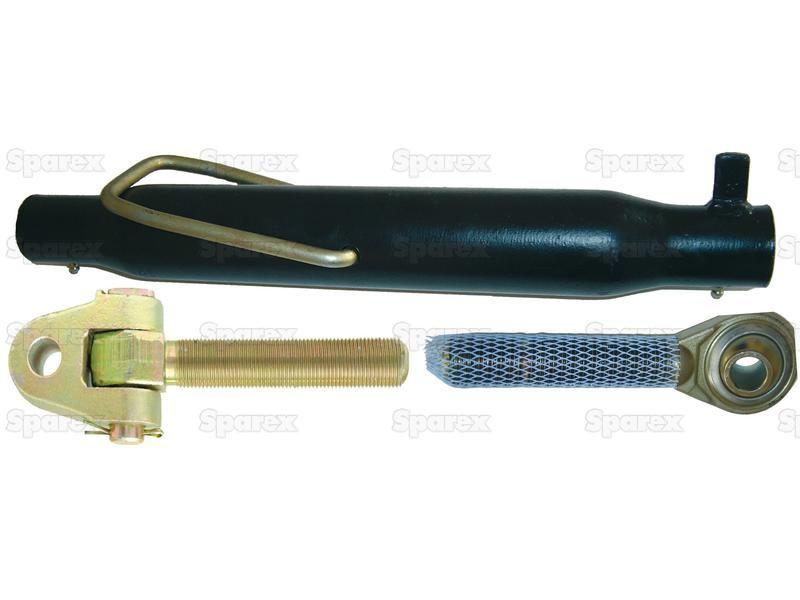

Top Link Heavy Duty (Cat.3/3) Ball and Q.R. Hook, Min. Length: 660mm.
Part Number: S.29595Categories: PTO (shaft), Linkage
Part Number: S.29595
Grade: Replacement
Part Details
Top Link Heavy Duty (Cat.3/3) Ball and Q.R. Hook, Min. Length: 660mm. Tube length: 460mm,Min. Length: 660mm,Max. Length: 890mm,Thread size: M36 x 3
Technical Information
| Brand | Sparex |
| Category | 3/3 |
| Category Implement End | 3 |
| Category Tractor End | 3 |
| Centre Tube | S.29323 |
| Centre Tube Size mm | 60.3 x 6.35 |
| Colour | Black |
| Duty | Heavy |
| Implement End | Q.R. Hook |
| Locking Collar | S.15553 |
| Maximum Length ins | 35 |
| Maximum Length mm | 890 |
| Minimum Length ins | 26 |
| Minimum Length mm | 660 |
| Related Products | 15553, 29323, 29327, 29330, 33004, 33010, 33017, 148196, 148197 |
| Release Harness | S.33017 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Tariff Code | 8708999790 |
| Thread size | M36 x 3.00 |
| Thread type | Metric |
| Tractor End | Ball |
| Tube Length ins | 18 7/64 |
| Tube length mm | 460 |
