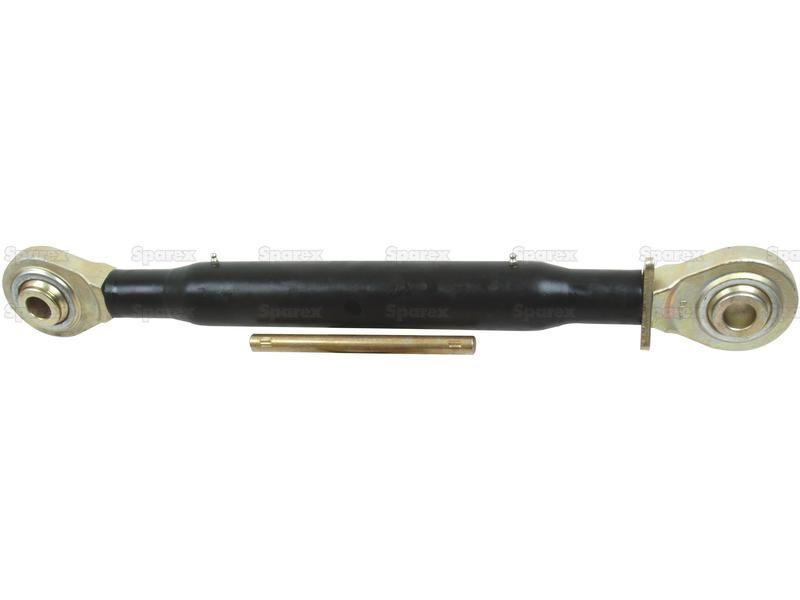

Top Link Heavy Duty (Cat.3/3) Ball and Ball, Min. Length: 670mm.
Part Number: S.52384Categories: PTO (shaft), Linkage
Part Number: S.52384
Grade: Replacement
Part Details
Top Link Heavy Duty (Cat.3/3) Ball and Ball, Min. Length: 670mm. Tube length: 485mm,Min. Length: 670mm,Max. Length: 895mm,Thread size: M40 x 3
Technical Information

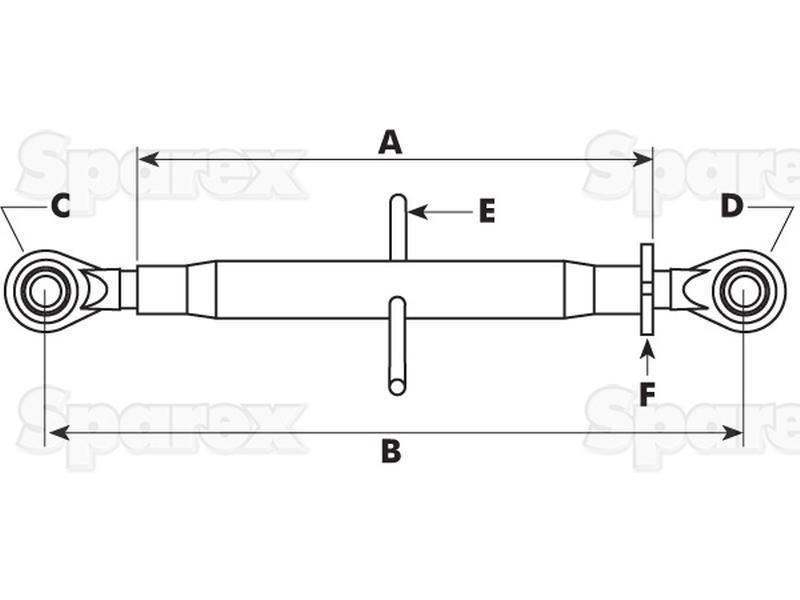

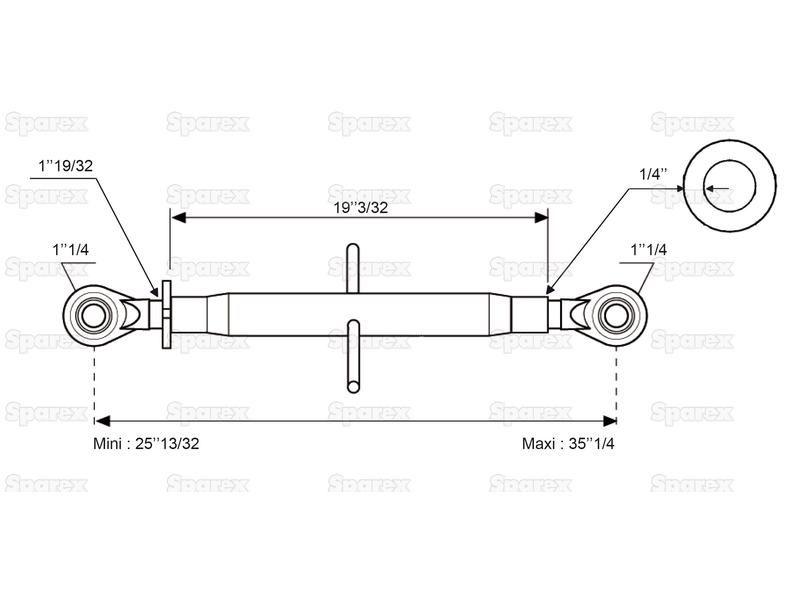

| A ins | 19 |
| A mm | 485 |
| B Max. ins | 35 5/8 |
| B Max. mm | 895 |
| B Min. ins | 0 |
| B Min. mm | 645 |
| B mm | 0 |
| Brand | Sparex |
| Category | 3/3 |
| Category Implement End | 3 |
| Category Tractor End | 3 |
| Centre Tube | S.52390 |
| Centre Tube Size mm | 60 x 6 |
| Colour | Black |
| Duty | Heavy |
| Implement End | Ball |
| Locking Collar | S.52391 |
| Maximum Length ins | 35 1/4 |
| Maximum Length mm | 895 |
| Minimum Length ins | 26 3/8 |
| Minimum Length mm | 670 |
| Related Products | 16025, 52387, 52388, 52390, 52391 |
| Replacement Implement End | S.52387 |
| Replacement Tractor End | S.52388 |
| Suitable for Tractors up to hp kW | 250hp (184kW) |
| Tariff Code | 8708999790 |
| Thread size | M40 x 3.00 |
| Thread type | Metric |
| Tommy Bar | S.16025 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 51 |
| Tube Length ins | 19 |
| Tube length mm | 485 |
