Top Link Heavy Duty (Cat.3/3) Ball and Ball, Min. Length: 530mm. for John Deere (AL176471, AL200986)

Part Number: S.150430Categories: PTO (shaft), Linkage
Top Link Heavy Duty (Cat.3/3) Ball and Ball, Min. Length: 530mm. for John Deere (AL176471, AL200986)
Top Link Heavy Duty (Cat.3/3) Ball and Ball, Min. Length: 530mm. for John Deere (AL176471, AL200986)

Part Number: S.150430

Grade: Replacement

Part Details

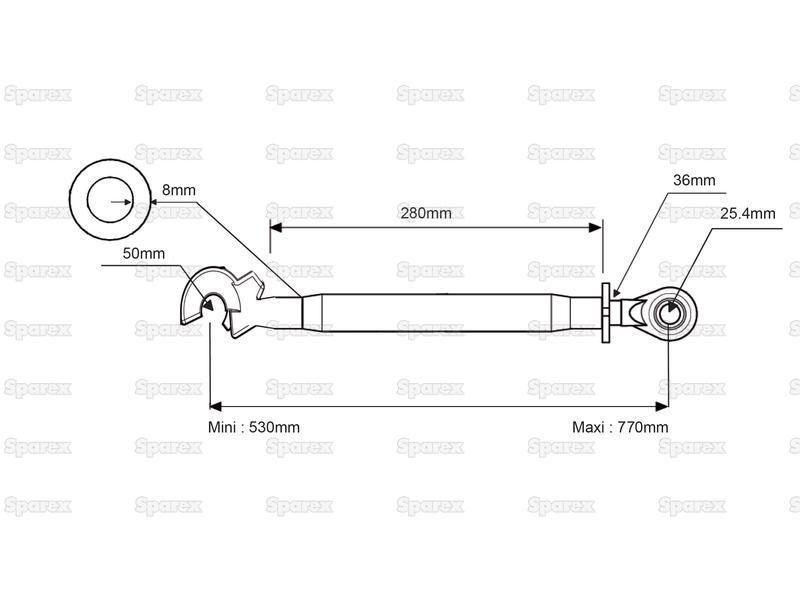

Top Link Heavy Duty (Cat.3/3) Ball and Ball, Min. Length: 530mm. Tube length: 280mm,Min. Length: 530mm,Max. Length: 770mm,Thread size: M36 x 4

Technical Information

Brand Sparex
Category 3/3
Category Implement End 3
Category Tractor End 3
Colour Green
Duty Heavy
Implement End Ball
Maximum Length ins 30 5/16
Maximum Length mm 770
Minimum Length ins 20 55/64
Minimum Length mm 530
Suitable for Tractors up to hp kW 180hp (135kW)
Tariff Code 8708999790
Thread size M36 x 4.00
Thread type Metric
Tractor End Ball
Tube Length ins 11 1/32
Tube length mm 280

Models

John Deere
6020 (6020 Series), 6090MC, 6090RC, 6100MC, 6100RC, 6105M, 6110MC, 6110RC, 6115M, 6120 (6020 Series), 6125M, 6130 (6030 Standard Series ), 6130M, 6140M, 6150M, 6200 (6000 Series), 6220 (6020 Series), 6230 (6030 Standard Series ), 6230 Premium (6030 Premium Series), 6300 (6000 Series), 6310 (6010 Series), 6320 (6020 Series), 6320SE, 6330 (6030 Standard Series ), 6330 Premium (6030 Premium Series), 6400 (6000 Series), 6410 (6010 Series), 6420 (6020 Series), 6420S, 6420SE, 6430 (6030 Standard Series ), 6430 Premium (6030 Premium Series), 6506 (6000 Series), 6510 (6010 Series), 6510SE, 6520 (6020 Series), 6520SE, 6530 (6030 Standard Series ), 6530 Premium (6030 Premium Series), 6600 (6000 Series), 6610 (6010 Series), 6610SE, 6620 (6020 Series), 6620SE, 6630 (6030 Standard Series ), 6630 Premium (6030 Premium Series), 6800 (6000 Series), 6900 (6000 Series), 7130 (7030 Series), 7130 Premium (7030 Series), 7200 (Forage Harvesters - 7000 Series), 7230 (7030 Series), 7230 Premium (7030 Series), 7800 (7000 Series)

Manufacturer Part Numbers

John Deere
AL176471, AL200986
