Top Link Heavy Duty (Cat.2/2) Ball and Q.R. Hook, Min. Length: 560mm.
Part Number: S.74056Categories: PTO (shaft), Linkage
Part Number: S.74056
Grade: Replacement
Part Details

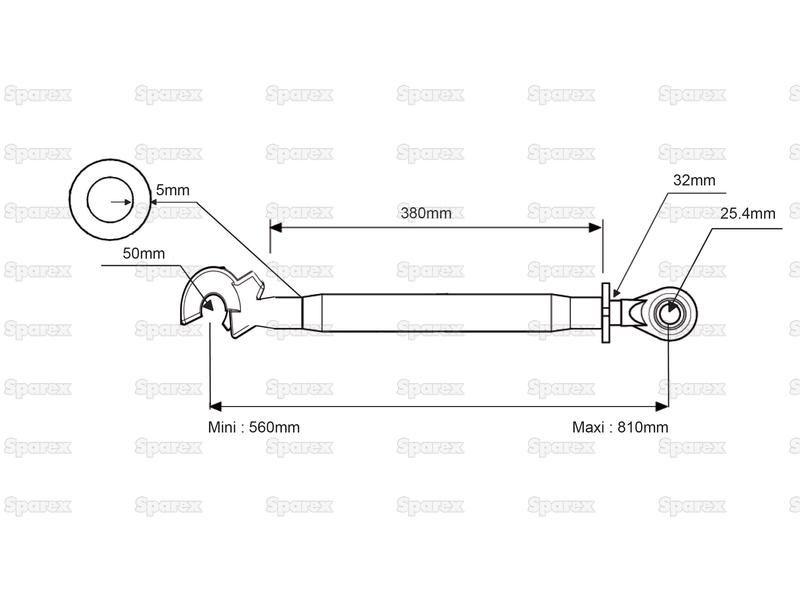

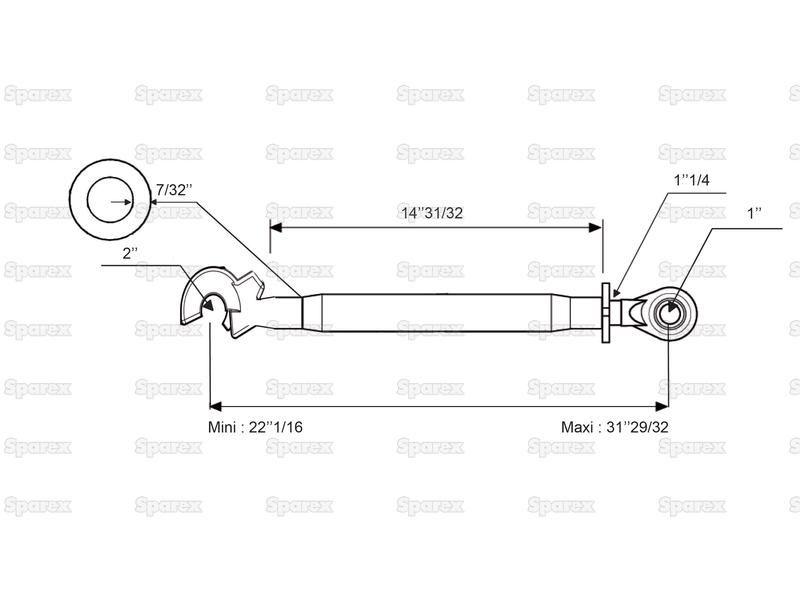

Top Link Heavy Duty (Cat.2/2) Ball and Q.R. Hook, Min. Length: 560mm. Tube length: 380mm,Min. Length: 560mm,Max. Length: 810mm,Thread size: 1 1/4''
Technical Information
| Brand | Spenco |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube | S.16077 |
| Centre Tube Size mm | 48.5 x 5 with grease nipples |
| Colour | Black |
| Duty | Heavy |
| Implement End | Q.R. Hook |
| Locking Collar | S.15553 |
| Maximum Length ins | 31 5/8 |
| Maximum Length mm | 810 |
| Minimum Length ins | 22 3/4 |
| Minimum Length mm | 560 |
| Related Products | 15553, 16025, 16076, 16077, 33008, 33017, 33024, 33048, 148199 |
| Release Harness | S.33017 |
| Replacement Implement End | S.33024 |
| Replacement Tractor End | S.16076 |
| Suitable for Tractors up to hp kW | 133hp (100kW) |
| Supplied with | Release Harness |
| Tariff Code | 8708999790 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
| Tommy Bar | S.16025 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 44.5 |
| Tube Length ins | 15 |
| Tube length mm | 380 |
