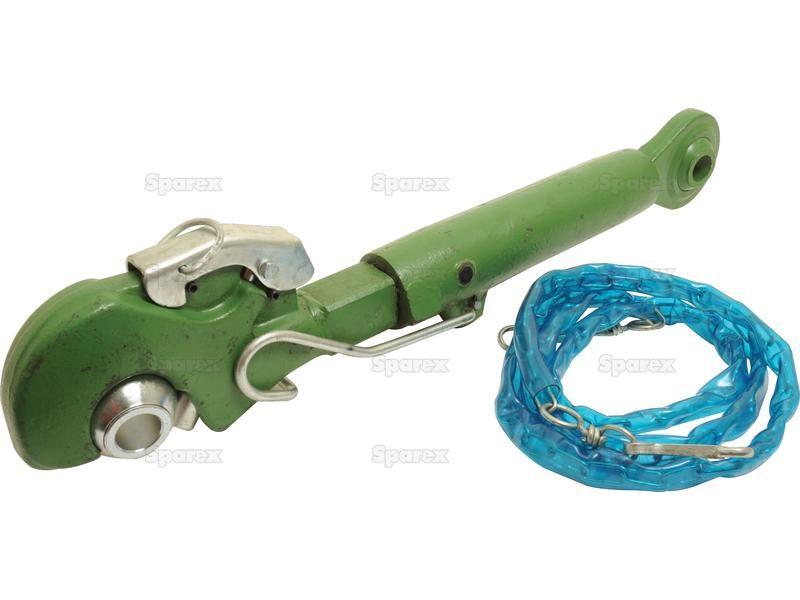

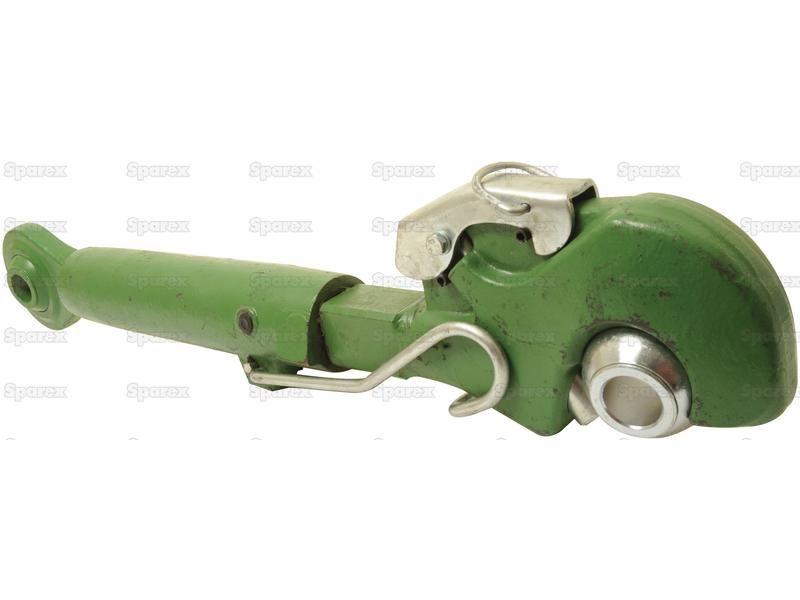

Top Link Heavy Duty (Cat.2/2) Ball and Q.R. Hook, Min. Length: 510mm. for John Deere (AL159871, AL176473, AL215047, AL78065)

Part Number: S.28782Categories: PTO (shaft), Linkage
Top Link Heavy Duty (Cat.2/2) Ball and Q.R. Hook, Min. Length: 510mm. for John Deere (AL159871, AL176473, AL215047, AL78065)
Top Link Heavy Duty (Cat.2/2) Ball and Q.R. Hook, Min. Length: 510mm. for John Deere (AL159871, AL176473, AL215047, AL78065)
Top Link Heavy Duty (Cat.2/2) Ball and Q.R. Hook, Min. Length: 510mm. for John Deere (AL159871, AL176473, AL215047, AL78065)
Top Link Heavy Duty (Cat.2/2) Ball and Q.R. Hook, Min. Length: 510mm. for John Deere (AL159871, AL176473, AL215047, AL78065)
Top Link Heavy Duty (Cat.2/2) Ball and Q.R. Hook, Min. Length: 510mm. for John Deere (AL159871, AL176473, AL215047, AL78065)

Part Number: S.28782

Grade: Replacement

Part Details

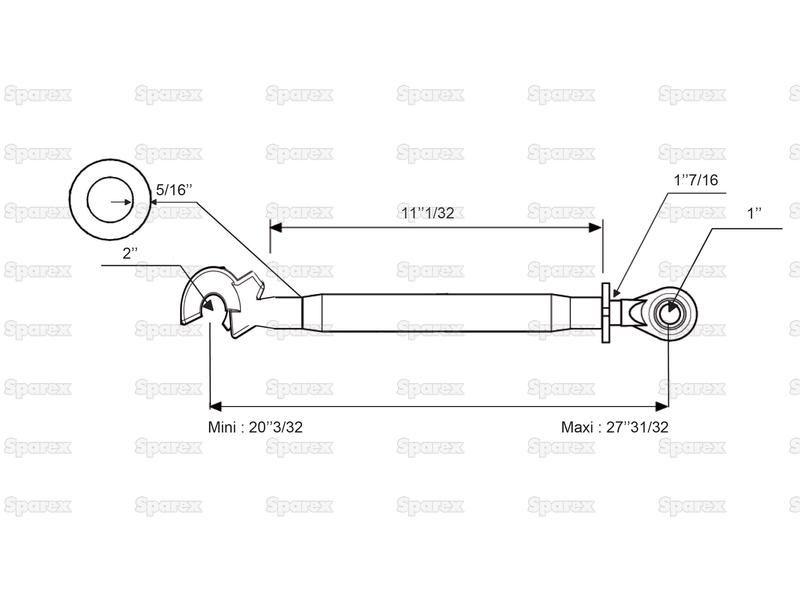

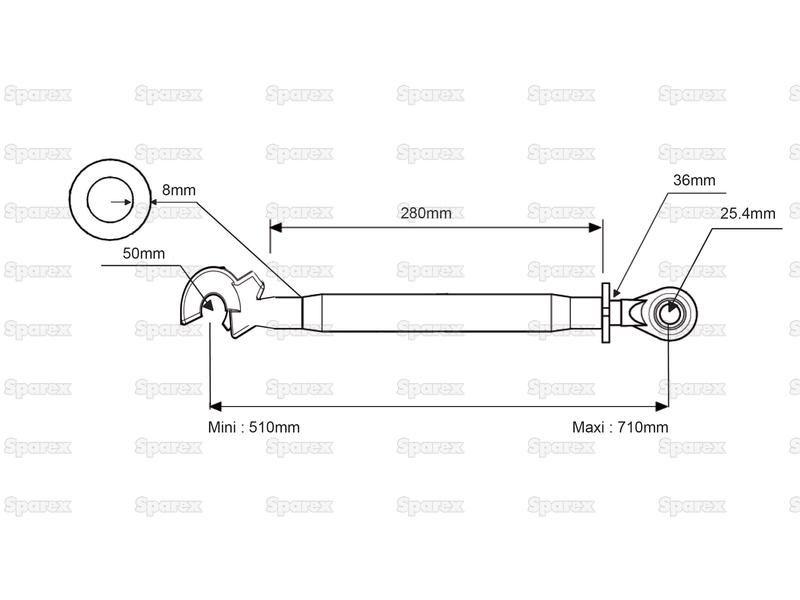

Top Link Heavy Duty (Cat.2/2) Ball and Q.R. Hook, Min. Length: 510mm. Tube length: 280mm,Min. Length: 510mm,Max. Length: 710mm,Thread size: M36 x 4

Technical Information

Brand Sparex
Category 2/2
Category Implement End 2
Category Tractor End 2
Centre Tube Size mm 280
Colour Green
Duty Heavy
Implement End Q.R. Hook
Maximum Length ins 28
Maximum Length mm 710
Minimum Length ins 20
Minimum Length mm 510
Related Products 33008, 33017, 33048, 148199
Release Harness S.33017
Suitable for Tractors up to hp kW 180hp (135kW)
Supplied with Release Harness & Cat. 2 & 3 Balls
Tariff Code 8708999790
Thread size M36 x 4.00
Thread type Metric
Tractor End Ball
Tube Length ins 11
Tube length mm 280

Models

John Deere
5045E, 5050E, 5055E, 5065E, 5075E, 5076E, 5078E, 5080G, 5080GF, 5080GV, 5082E, 5083E, 5085E, 5090E, 5090G, 5090GF, 5090GV, 5093E, 5100E, 5100GF, 5100GV, 5101E, 5103E, 6010 (6010 Series), 6010SE, 6020 (6020 Series), 6020SE, 6090MC, 6090RC, 6100 (6000 Series), 6100D, 6100MC, 6100RC, 6105M, 6110 (6010 Series), 6110D, 6110J, 6110MC, 6110RC, 6110SE, 6115M, 6120 (6020 Series), 6120SE, 6125M, 6130 (6030 Standard Series ), 6130D, 6130J, 6200 (6000 Series), 6200SE, 6210 (6010 Series), 6210SE, 6220 (6020 Series), 6220SE, 6230 (6030 Standard Series ), 6230 Premium (6030 Premium Series), 6300 (6000 Series), 6300SE, 6310 (6010 Series), 6310S, 6320 (6020 Series), 6320L, 6320SE, 6330 (6030 Standard Series ), 6330 Premium (6030 Premium Series), 6400 (6000 Series), 6400SE, 6405 (6000 Series), 6410 (6010 Series), 6410S, 6415 (6015 Series), 6420 (6020 Series), 6420L, 6420SE, 6430 (6030 Standard Series ), 6430 Premium (6030 Premium Series), 6500 (Self Propelled Sprayers - 6000 Series), 6506 (6000 Series), 6510 (6010 Series), 6510S, 6520 (6020 Series), 6520SE, 6530 (6030 Standard Series ), 6600 (6000 Series), 6605 (6000 Series), 6610 (6010 Series), 6610SE, 6615 (6015 Series), 6620 (6020 Series), 6620SE, 7130 Premium (7030 Series), 7230 Premium (7030 Series)

Manufacturer Part Numbers

John Deere
AL159871, AL176473, AL215047, AL78065
