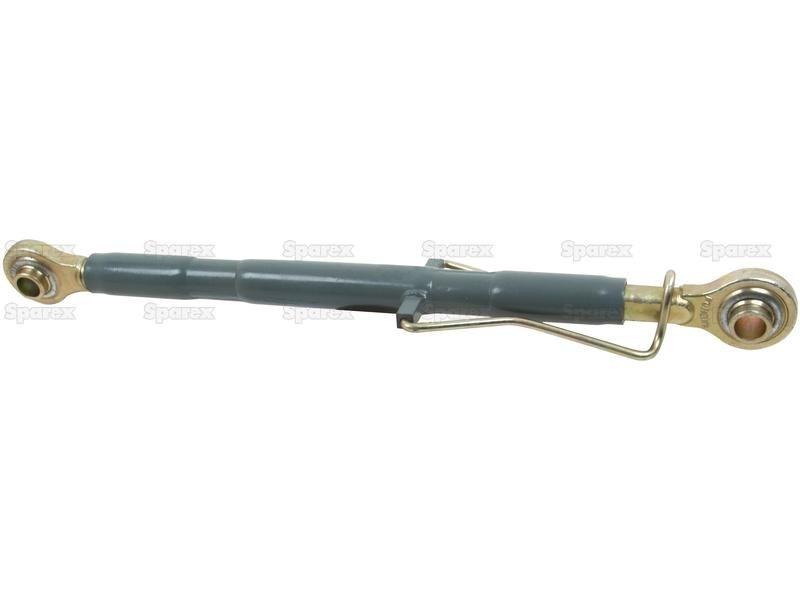

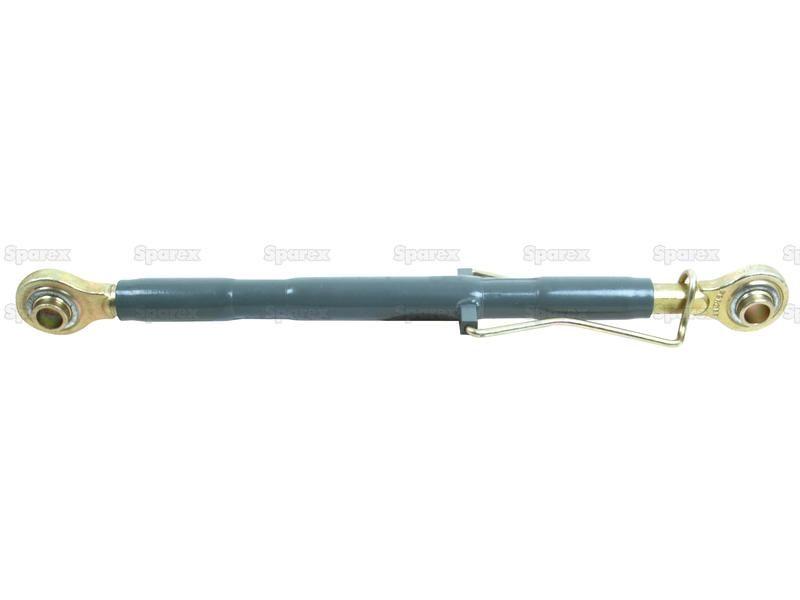

Top Link Heavy Duty (Cat.2/2) Ball and Ball, 1 1/4'', Min. Length: 680mm. for Massey Ferguson 565 (500 Series)
Part Number: S.15347Categories: PTO (shaft), Linkage
Part Number: S.15347
Grade: Replacement
Part Details

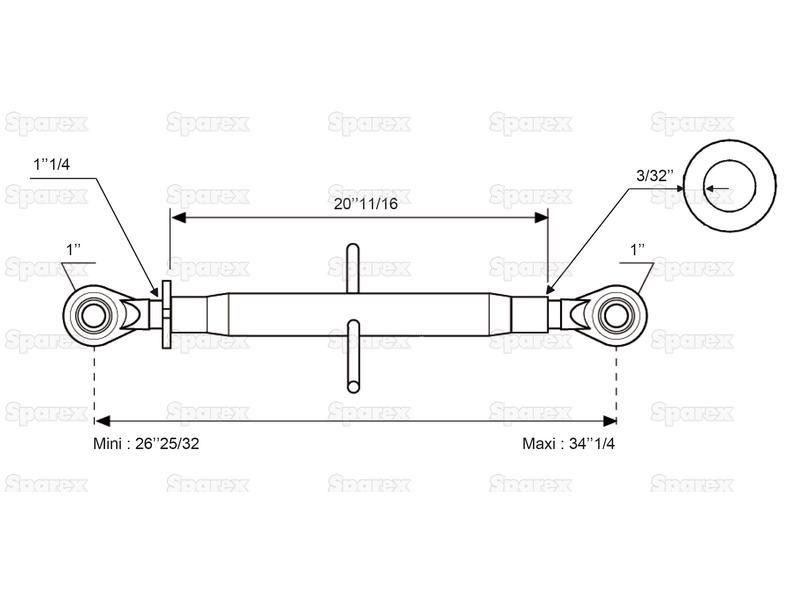

Top Link Heavy Duty (Cat.2/2) Ball and Ball, 1 1/4'', Min. Length: 680mm. Tube length: 525mm,Min. Length: 680mm,Max. Length: 870mm,Thread size: 1 1/4''
Technical Information
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Centre Tube | S.15348 |
| Centre Tube Size mm | 44 x 2.5 |
| Colour | Grey |
| Duty | Heavy |
| Implement End | Ball |
| Locking Collar | S.15351 |
| Maximum Length ins | 34 1/4 |
| Maximum Length mm | 870 |
| Minimum Length ins | 25 |
| Minimum Length mm | 680 |
| Related Products | 15351, 81, 119246, 119248 |
| Replacement Implement End | S.15350 |
| Replacement Tractor End | S.15349 |
| Suitable for Tractors up to hp kW | 133hp (100kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
| Tommy Bar | S.15351 |
| Tractor End | Ball |
| Tube Length ins | 20 5/8 |
| Tube length mm | 525 |
Manufacturer Part Numbers
| Case IH |
|---|
| 1660050R91 |
| Landini |
| 1660050M91, 1660050M94 |
| Massey Ferguson |
| 1660050M91, 1660050M94, 1660050M95, 3147681M91, 3808294M91, 3808658M91, 6264541M91, 893439M91 |
