Top Link Heavy Duty (Cat.20mm/2) Ball and Q.R CBM Hook, Min. Length: 560mm.
Part Number: S.33104Categories: PTO (shaft), Linkage
Part Number: S.33104
Grade: Replacement
Part Details

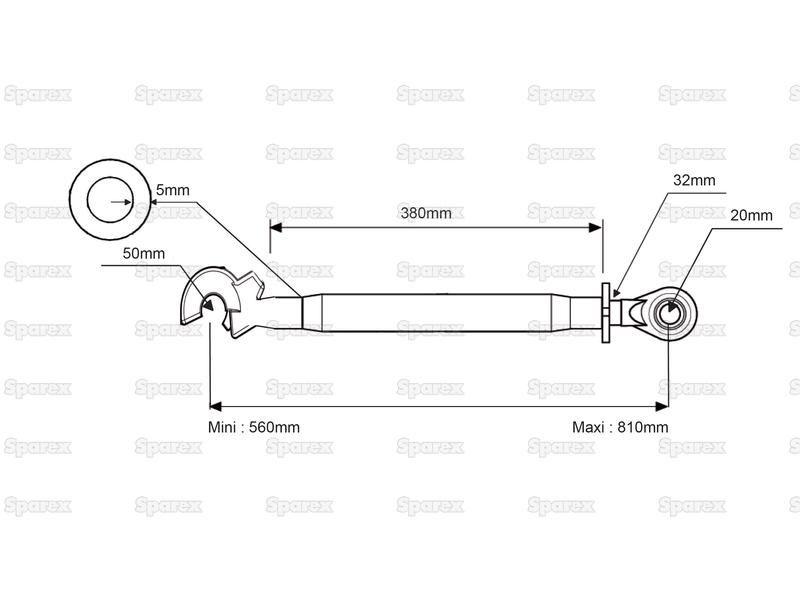

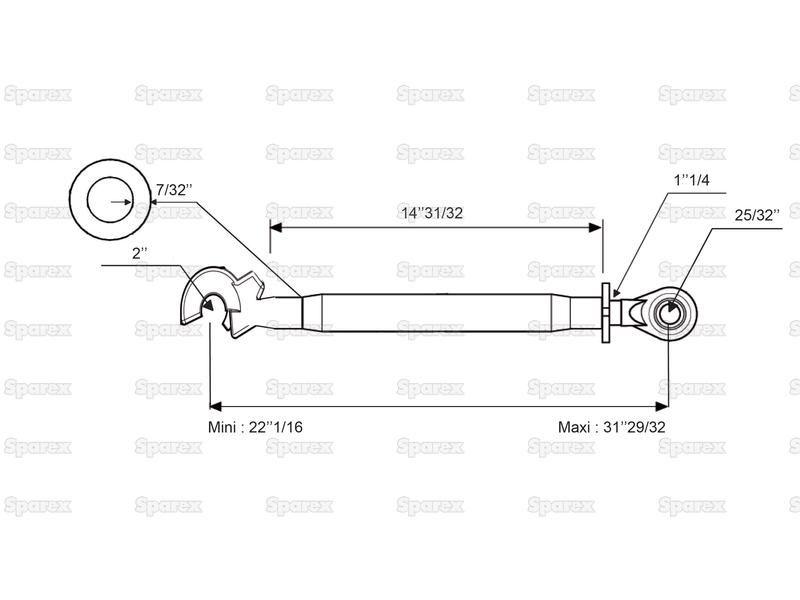

Top Link Heavy Duty (Cat.20mm/2) Ball and Q.R CBM Hook, Min. Length: 560mm. Tube length: 380mm,Min. Length: 560mm,Max. Length: 810mm,Thread size: 1 1/4''
Technical Information
| A ins | 15 |
| A mm | 380 |
| B Max. ins | 31 1/8 |
| B Max. mm | 810 |
| B Min. ins | 22 3/4 |
| B Min. mm | 560 |
| B mm | 0 |
| Brand | Sparex |
| Category | 20mm/2 |
| Category Implement End | 2 |
| Category Tractor End | 20mm |
| Colour | Black |
| Duty | Heavy |
| Implement End | Q.R CBM Hook |
| Locking Collar | S.15553 |
| Maximum Length ins | 31 5/8 |
| Maximum Length mm | 810 |
| Minimum Length ins | 22 3/4 |
| Minimum Length mm | 560 |
| Related Products | 15553, 33008, 33017, 33024, 33048, 148199 |
| Release Harness | S.33017 |
| Replacement Implement End | S.33024 |
| Suitable for Tractors up to hp kW | 100hp (75kW) |
| Supplied with | Release Harness |
| Tariff Code | 8708999790 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
| Tractor End | Ball |
| Tube Length ins | 15 |
| Tube length mm | 380 |
