Top Link (Cat. 1/2) with Ball
Part Number: S.15845Categories: PTO (shaft), Linkage
Part Number: S.15845
Grade: Replacement
Part Details

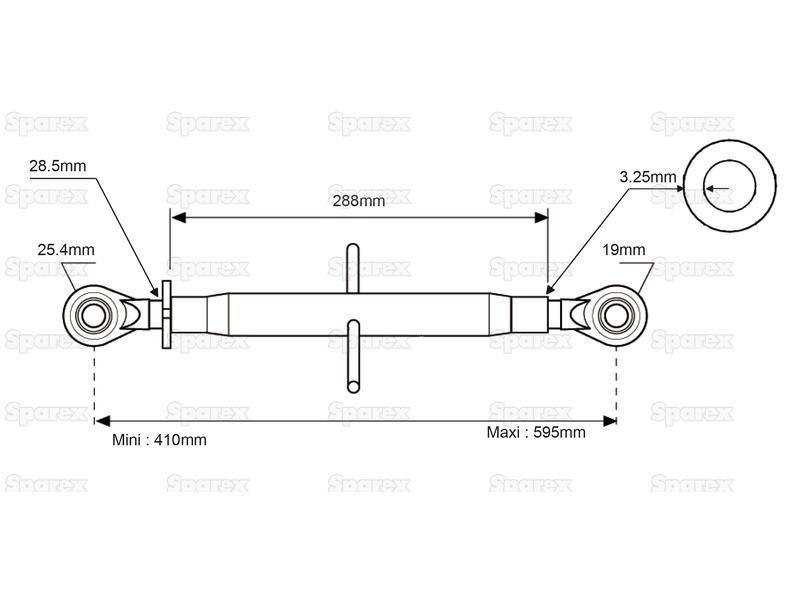

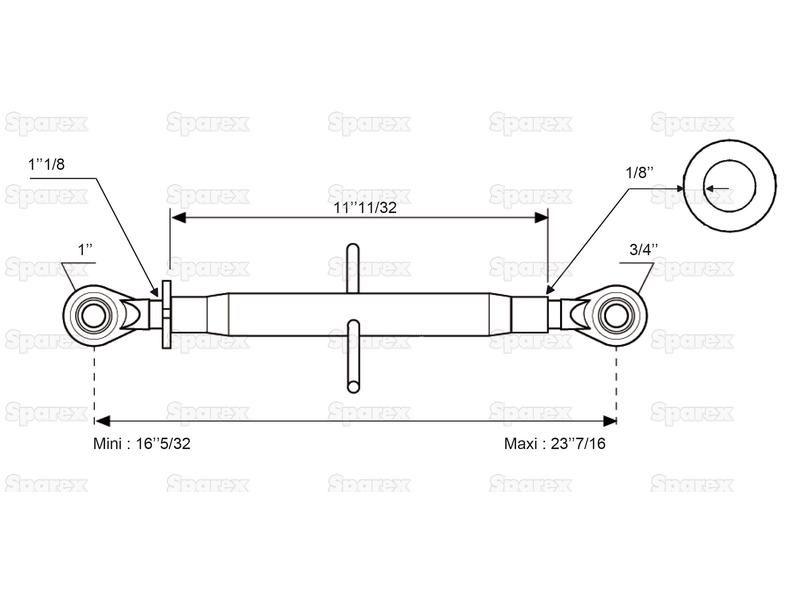

Top Link (Cat. 1/2) with Ball • Minimum/Maximum Length: 413mm/601mm.• Thread: 1 1/8" UNC.
Technical Information
| A ins | 11 1/4 |
| A mm | 288 |
| B Max. ins | 23 7/16 |
| B Max. mm | 595 |
| B Min. ins | 16 1/32 |
| B Min. mm | 410 |
| B mm | 0 |
| Brand | Spenco |
| Category | 1/2 |
| Category Implement End | 2 |
| Category Tractor End | 1 |
| Centre Tube Size mm | 42 x 3.25 |
| Colour | Zinc |
| Duty | Standard |
| Implement End | Ball |
| Locking Collar | S.348 |
| Maximum Length ins | 23 7/16 |
| Maximum Length mm | 595 |
| Minimum Length ins | 16 1/32 |
| Minimum Length mm | 410 |
| Suitable for Tractors up to hp kW | 56hp (42kW) |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tommy Bar | S.333 |
| Tractor End | Ball |
| Tractor End Ball Width mm | 44.5 |
| Tube Length ins | 11 1/4 |
| Tube length mm | 288 |
| Type | Standard |
