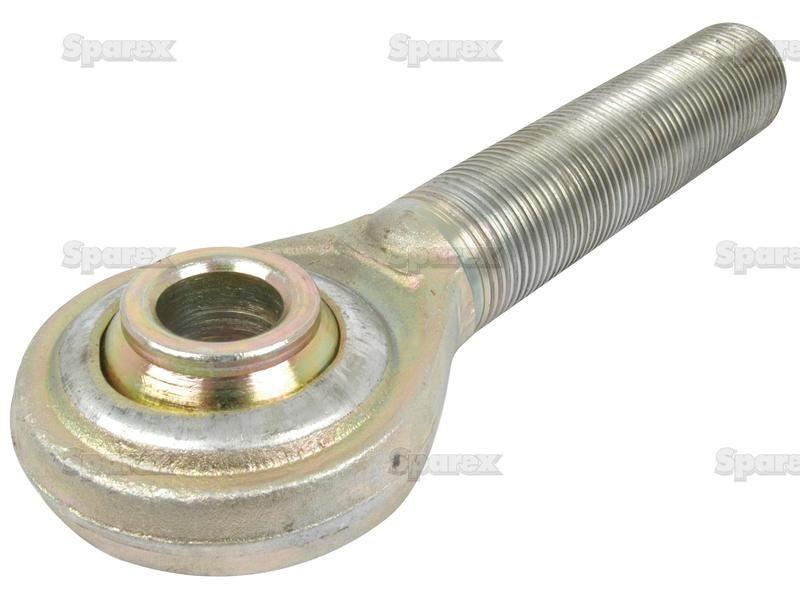

Top Link Ball End - M40x3 Metric - Cat.2
Part Number: S.52385Categories: PTO (shaft), Linkage
Part Number: S.52385
Grade: Replacement
Part Details
Top Link Ball End - M40x3 Metric - Cat.2 Ball Bore Ø:25.4mm, Thread length:190mm, Overall length:314mm
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Sparex |
| Category | 2 |
| End Radius ins | 1 7/8 |
| End Radius mm | 48 |
| LH or RH | RH |
| Overall length ins | 12 23/64 |
| Overall length mm | 314 |
| Tariff Code | 8708999790 |
| Thread length ins | 7 1/2 |
| Thread length mm | 190 |
| Thread size | M40x3 |
| Thread type | Metric |
| Working length ins | 10 1/2 |
| Working length mm | 266 |
