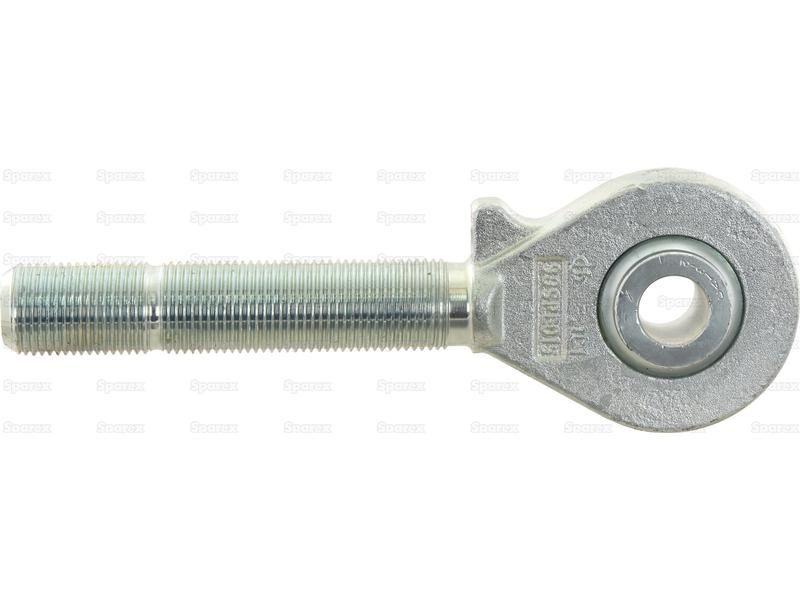

Top Link Ball End - M36x3 Metric - Cat.2
Part Number: S.29331Categories: PTO (shaft), Linkage
Part Number: S.29331
Grade: Replacement
Part Details
Top Link Ball End - M36x3 Metric - Cat.2 Ball Bore Ø:25.4mm, Thread length:165mm, Overall length:256mm
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width mm | 44.5 |
| Brand | Sparex |
| Category | 2 |
| End Radius ins | 1 27/64 |
| End Radius mm | 36 |
| LH or RH | RH |
| Overall length ins | 10 5/64 |
| Overall length mm | 256 |
| Tariff Code | 8708999790 |
| Thread length mm | 165 |
| Thread size | M36x3 |
| Thread type | Metric |
| Working length ins | 8 21/32 |
| Working length mm | 220 |
