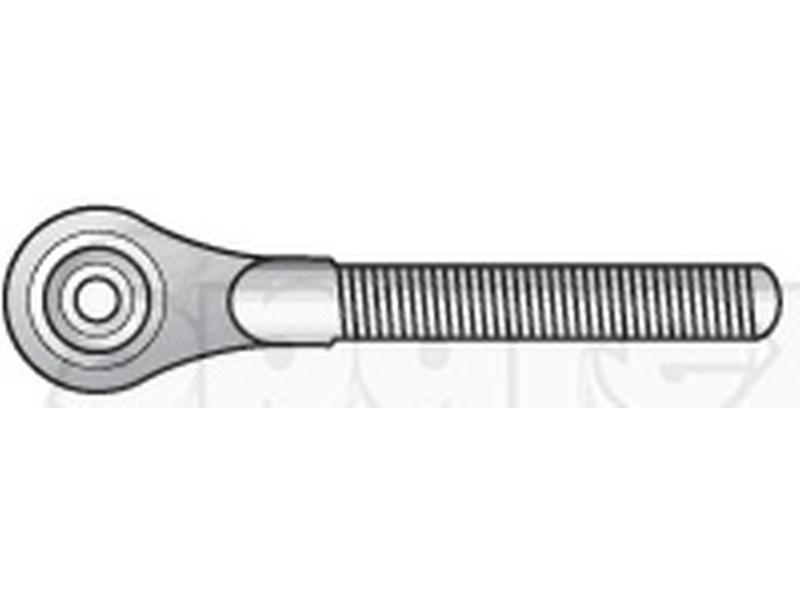

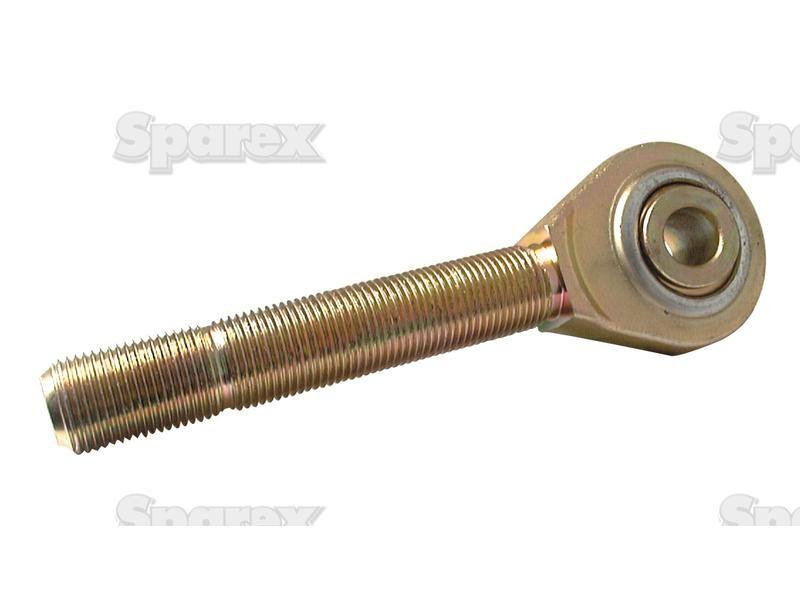

Top Link Ball End - M36x3 Metric - Cat.2
Part Number: S.16846Categories: PTO (shaft), Linkage
Part Number: S.16846
Grade: Replacement
Part Details

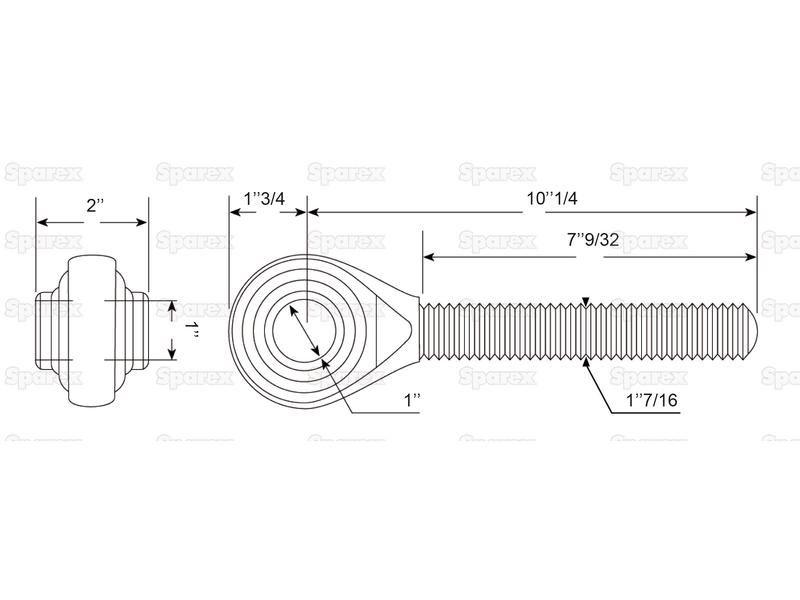

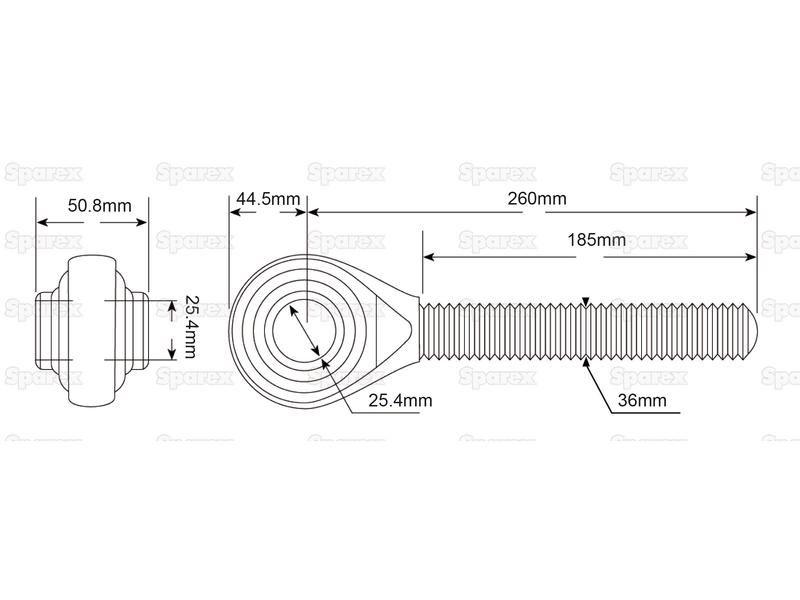

Top Link Ball End - M36x3 Metric - Cat.2 Ball Bore Ø:25.4mm, Thread length:185mm, Overall length:304mm
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Sparex |
| Category | 2 |
| End Radius ins | 1 3/4 |
| End Radius mm | 44.5 |
| LH or RH | LH |
| Notes | One Side Swaged. |
| Overall length ins | 11 31/32 |
| Overall length mm | 304 |
| Tariff Code | 8708999790 |
| Thread length ins | 7 1/4 |
| Thread length mm | 185 |
| Thread size | M36x3 |
| Thread type | Metric |
| Working length ins | 10 1/4 |
| Working length mm | 260 |
