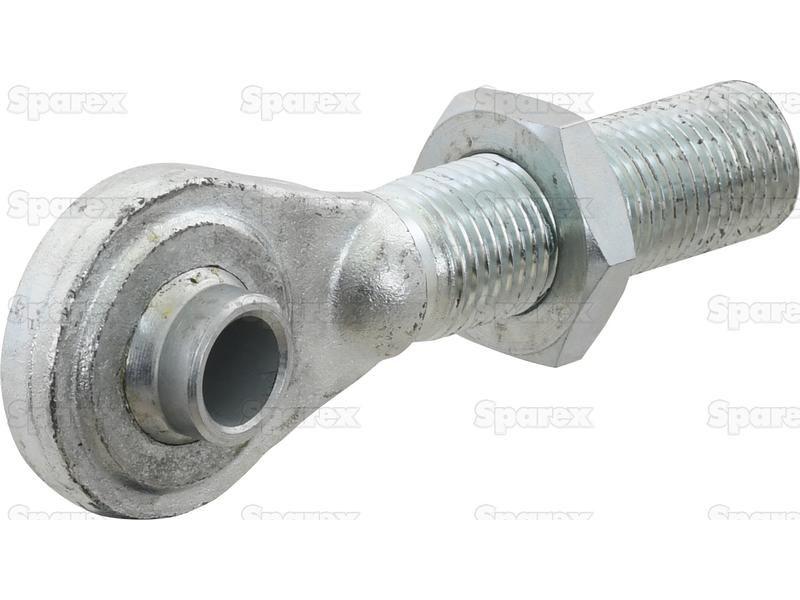

Top Link Ball End - M30x3 Metric - Cat.1
Part Number: S.32948Categories: PTO (shaft), Linkage
Part Number: S.32948
Grade: Replacement
Part Details
Top Link Ball End - M30x3 Metric - Cat.1 Ball Bore Ø:19mm, Thread length:60mm, Overall length:148mm
Technical Information
| Ball Bore Ø ins | 3/4 |
| Ball Bore Ø mm | 19 |
| Ball Width mm | 44.5 |
| Brand | Sparex |
| Category | 1 |
| End Radius ins | 1 1/8 |
| End Radius mm | 28.6 |
| LH or RH | LH |
| Overall length ins | 5 53/64 |
| Overall length mm | 148 |
| Tariff Code | 8708999790 |
| Thread length ins | 2 23/64 |
| Thread length mm | 60 |
| Thread size | M30x3 |
| Thread type | Metric |
| Working length ins | 4 23/32 |
| Working length mm | 120 |
