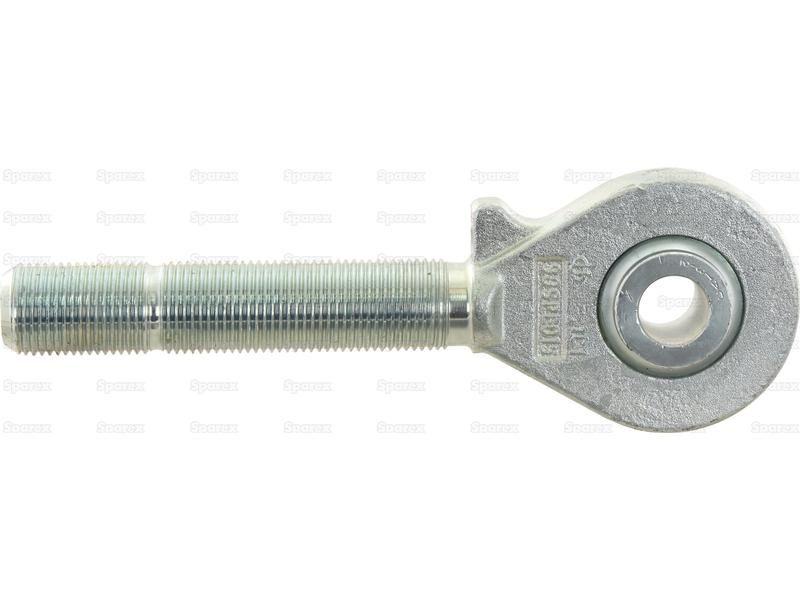

Top Link Ball End - M30x3 Metric - Cat.1
Part Number: S.29430Categories: PTO (shaft), Linkage
Part Number: S.29430
Grade: Replacement
Part Details
Top Link Ball End - M30x3 Metric - Cat.1 Ball Bore Ø:19mm, Thread length:175mm, Overall length:261mm
Technical Information
| Ball Bore Ø ins | 3/4 |
| Ball Bore Ø mm | 19 |
| Ball Width mm | 44.5 |
| Brand | Sparex |
| Category | 1 |
| End Radius ins | 1 27/64 |
| End Radius mm | 36 |
| LH or RH | LH |
| Overall length ins | 10 9/32 |
| Overall length mm | 261 |
| Related Products | 29423, 29420, 29421, 29422, 29424, 29425, 29426, 29427, 29428 |
| Tariff Code | 8708999790 |
| Thread length mm | 175 |
| Thread size | M30x3 |
| Thread type | Metric |
| Working length ins | 8 55/64 |
| Working length mm | 225 |
