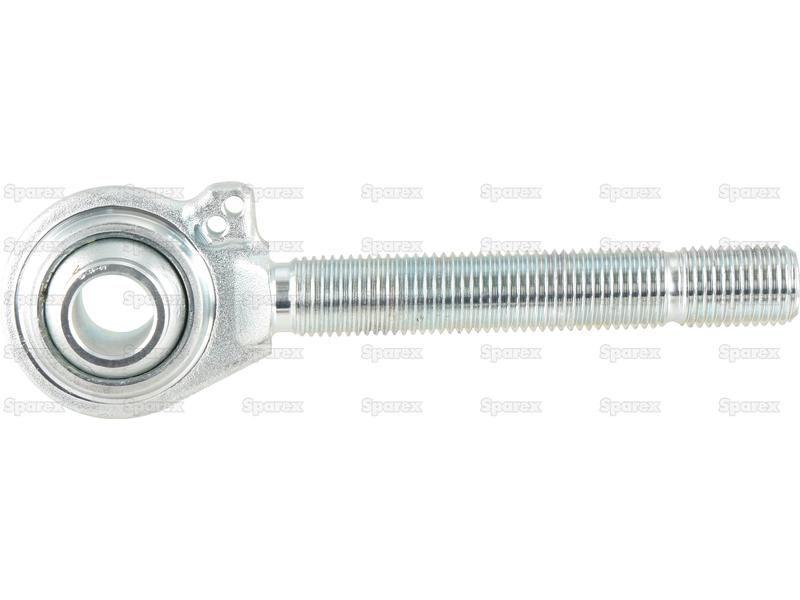

Top Link Ball End - M27x3 Metric - Cat.2
Part Number: S.148209Categories: PTO (shaft), Linkage
Part Number: S.148209
Grade: Replacement
Part Details
Top Link Ball End - M27x3 Metric - Cat.2 Ball Bore Ø:25.4mm, Thread length:160mm, Overall length:257mm
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Sparex |
| Category | 2 |
| End Radius ins | 131/64 |
| End Radius mm | 37.75 |
| LH or RH | LH |
| Overall length ins | 10 1/8 |
| Overall length mm | 257 |
| Related Products | 148211 |
| Tariff Code | 8708999790 |
| Thread length ins | 6 19/64 |
| Thread length mm | 160 |
| Thread size | M27x3 |
| Thread type | Metric |
| Working length ins | 8 21/32 |
| Working length mm | 220 |
