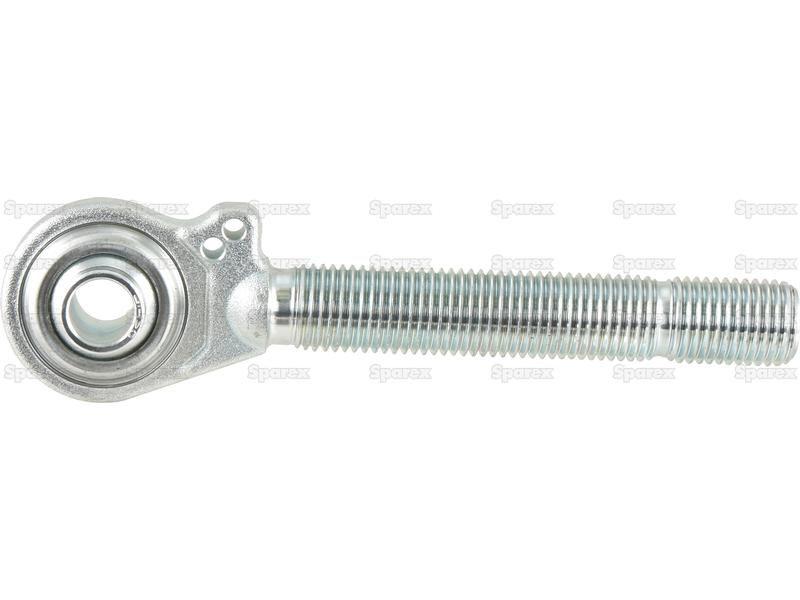

Top Link Ball End - M27x3 Metric - Cat.1
Part Number: S.148210Categories: PTO (shaft), Linkage
Part Number: S.148210
Grade: Replacement
Part Details
Top Link Ball End - M27x3 Metric - Cat.1 Ball Bore Ø:19mm, Thread length:160mm, Overall length:241mm
Technical Information
| Ball Bore Ø ins | 3/4 |
| Ball Bore Ø mm | 19 |
| Ball Width ins | 147/64 |
| Ball Width mm | 44.5 |
| Brand | Sparex |
| Category | 1 |
| End Radius ins | 17/32 |
| End Radius mm | 31 |
| LH or RH | LH |
| Overall length ins | 9 31/64 |
| Overall length mm | 241 |
| Related Products | 148212 |
| Tariff Code | 8708999790 |
| Thread length ins | 619/64 |
| Thread length mm | 160 |
| Thread size | M27x3 |
| Thread type | Metric |
| Working length ins | 8 17/64 |
| Working length mm | 210 |
