Top Link - Ball End (Cat.22mm)
Part Number: S.295Categories: PTO (shaft), Linkage
Part Number: S.295
Grade: Replacement
Part Details

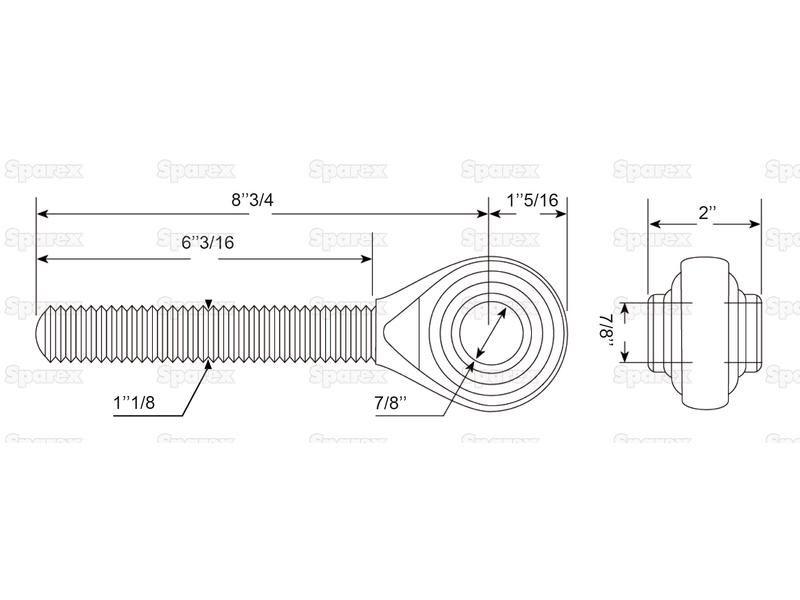

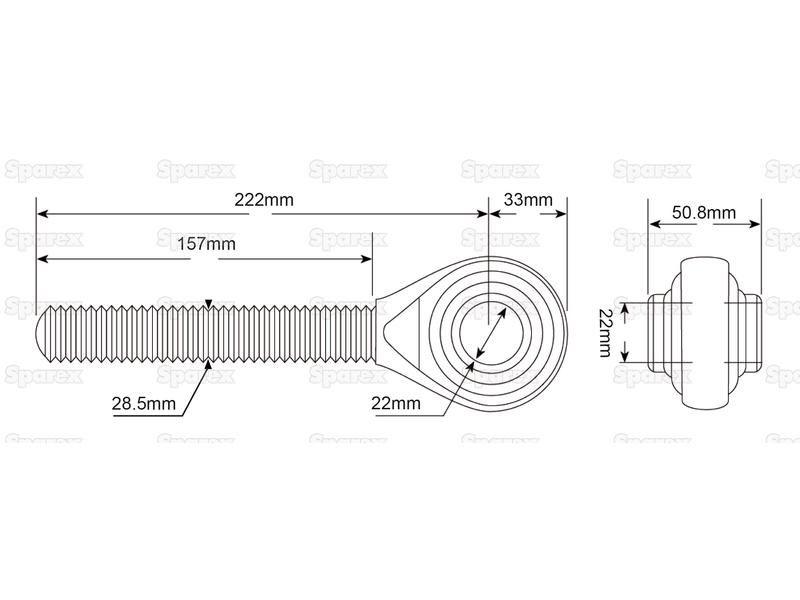

Top Link - Ball End (Cat.22mm) Length: 222mm (8 3/4'')Thread length: 157mm (6 3/16'')Thread size: 1 1/8'''' UNCBall Bore Ø: 22mm (7/8'')
Technical Information
| Ball Bore Ø ins | 7/8 |
| Ball Bore Ø mm | 22 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Spenco |
| Category | 22mm |
| End Radius ins | 1 5/16 |
| End Radius mm | 33 |
| LH or RH | RH |
| Overall length ins | 10 3/64 |
| Overall length mm | 255 |
| Tariff Code | 8708999790 |
| Thread length ins | 6 3/16 |
| Thread length mm | 157 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Working length ins | 8 3/4 |
| Working length mm | 222 |
