Top Link - Ball End (Cat.22mm)
Part Number: S.17188Categories: PTO (shaft), Linkage
Part Number: S.17188
Grade: Replacement
Part Details

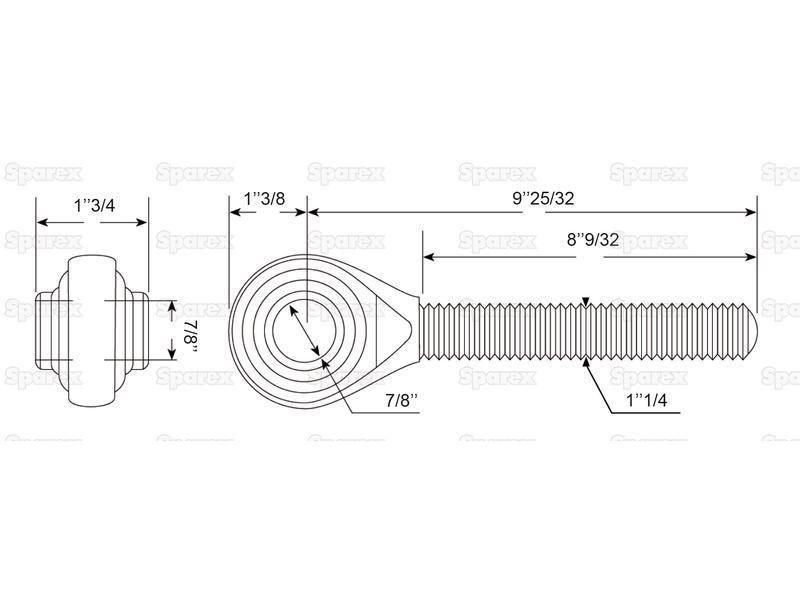

Top Link - Ball End (Cat.22mm) Length: 248mm (9 3/4'')Thread length: 210mm (8 1/4'')Thread size: 1 1/4'''' UNCBall Bore Ø: 22mm (7/8'')
Technical Information
| Ball Bore Ø ins | 7/8 |
| Ball Bore Ø mm | 22 |
| Ball Width ins | 1 3/4 |
| Ball Width mm | 44.5 |
| Brand | Spenco |
| Category | 22mm |
| End Radius ins | 1 3/8 |
| End Radius mm | 35 |
| LH or RH | LH |
| Notes | 1 Side Swaged/Hardened Balls |
| Overall length ins | 11 9/64 |
| Overall length mm | 283 |
| Tariff Code | 8708999790 |
| Thread length ins | 8 1/4 |
| Thread length mm | 210 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
| Working length ins | 9 3/4 |
| Working length mm | 248 |
