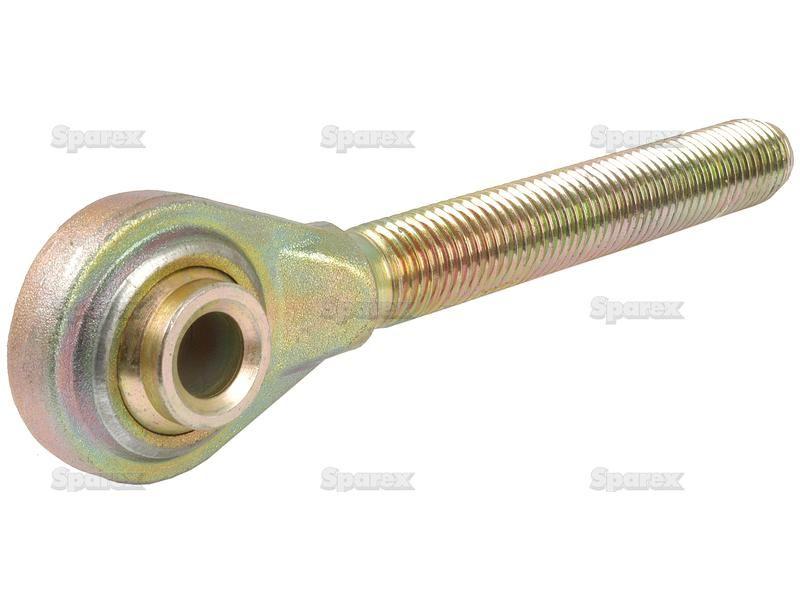

Top Link Ball End - 1 1/8'' UNC - Cat.20mm for John Deere 940 (40 Series)

Part Number: S.4262Categories: PTO (shaft), Linkage
Top Link Ball End - 1 1/8'' UNC - Cat.20mm for John Deere 940 (40 Series)
Top Link Ball End - 1 1/8'' UNC - Cat.20mm for John Deere 940 (40 Series)
Top Link Ball End - 1 1/8'' UNC - Cat.20mm for John Deere 940 (40 Series)
Top Link Ball End - 1 1/8'' UNC - Cat.20mm for John Deere 940 (40 Series)
Top Link Ball End - 1 1/8'' UNC - Cat.20mm for John Deere 940 (40 Series)
Top Link Ball End - 1 1/8'' UNC - Cat.20mm for John Deere 940 (40 Series)

Part Number: S.4262

Grade: Replacement

Part Details

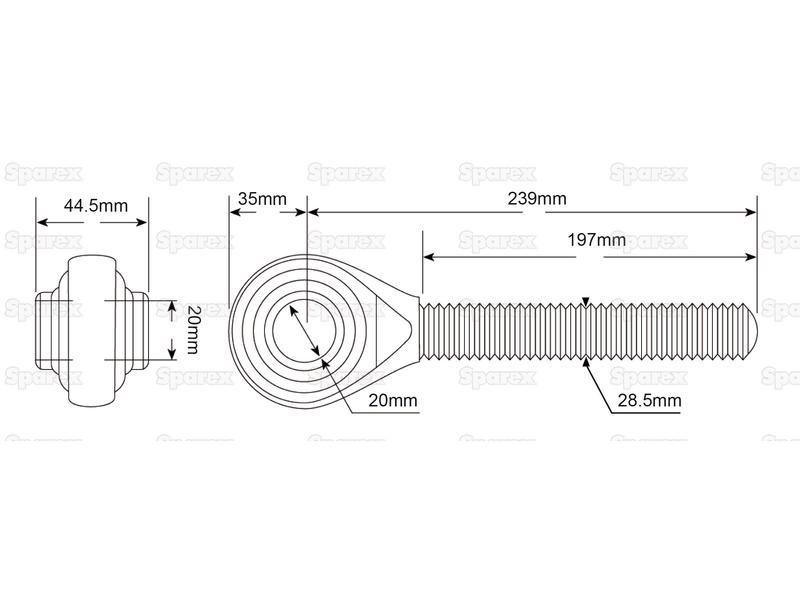

Top Link Ball End - 1 1/8'' UNC - Cat.20mm Ball Bore Ø:20mm, Thread length:197mm, Overall length:274mm

Technical Information

Ball Bore Ø ins 25/32
Ball Bore Ø mm 20
Ball Width ins 1 3/4
Ball Width mm 44.5
Brand Spenco
Category 20mm
End Radius ins 1 3/8
End Radius mm 35
LH or RH LH
Notes S-AL39172
Overall length ins 10 25/32
Overall length mm 274
Tariff Code 8708999790
Thread length ins 7 1/4
Thread length mm 197
Thread size 1 1/8''
Thread type UNC
Working length ins 9 7/16
Working length mm 239

Manufacturer Part Numbers

John Deere
AL39172, AL67293, AT23759
