Top Link - Ball End (Cat.2) Lely (9.1087.0013.3)
Part Number: S.346Categories: PTO (shaft), Linkage
Part Number: S.346
Grade: Replacement
Part Details

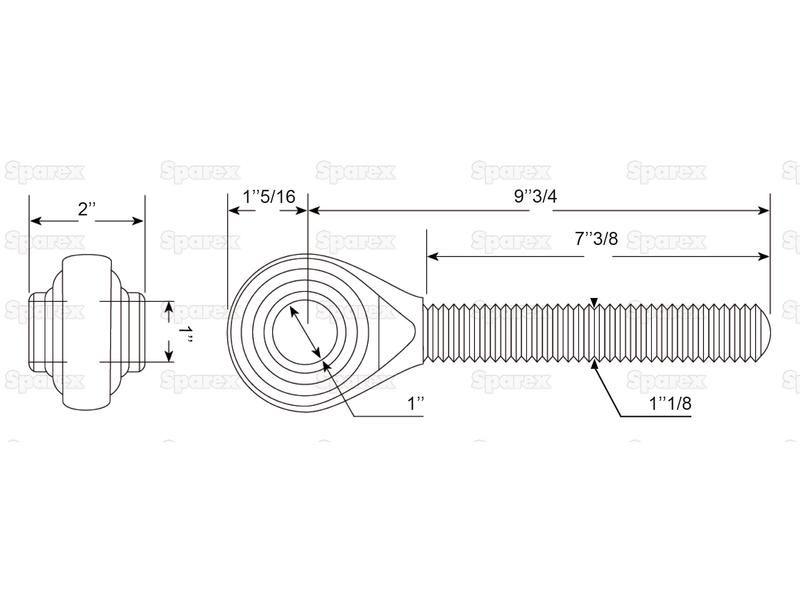

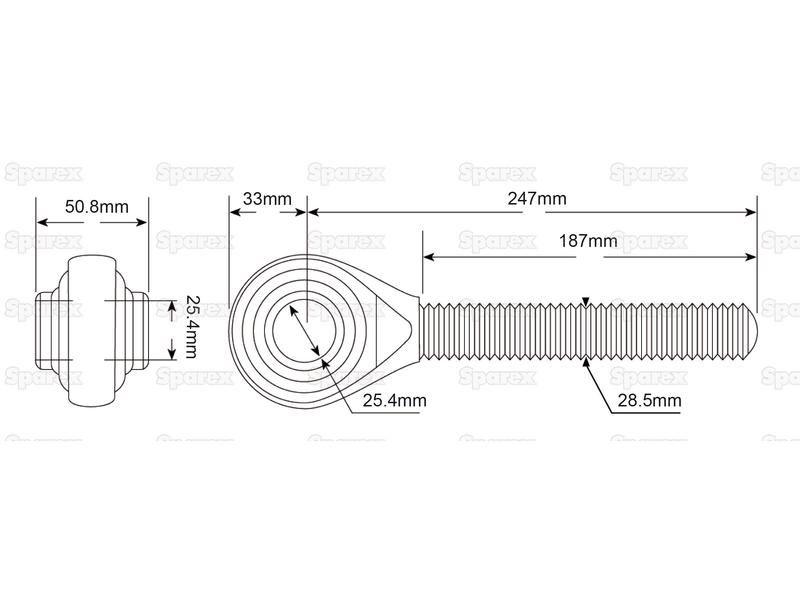

Top Link - Ball End (Cat.2) Length: 247mm (9 3/4'')Thread length: 187mm (7 3/8'')Thread size: 1 1/8'''' UNCBall Bore Ø: 25.4mm (1'')
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Spenco |
| Category | 2 |
| Duty | Standard |
| End Radius ins | 1 5/16 |
| End Radius mm | 33 |
| Finish | Zinc Plated |
| Length ins | 9 3/4 |
| Length mm | 247 |
| LH or RH | LH |
| Tariff Code | 8708999790 |
| Thread length ins | 7 3/8 |
| Thread length mm | 187 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
Manufacturer Part Numbers
| Lely |
|---|
| 9.1087.0013.3 |
