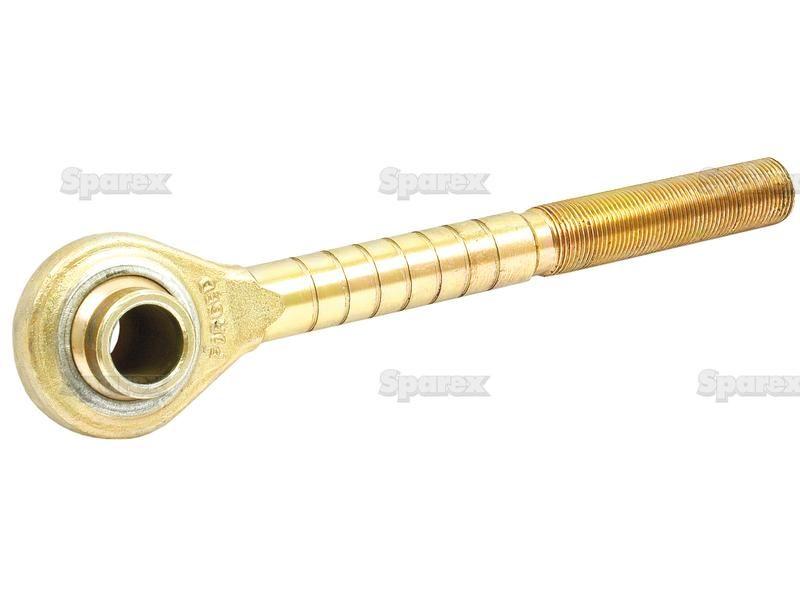

Top Link Ball End - 1 1/16'' UNF - Cat.2 for Massey Ferguson
Part Number: S.442Categories: PTO (shaft), Linkage
Part Number: S.442
Grade: Replacement
Part Details

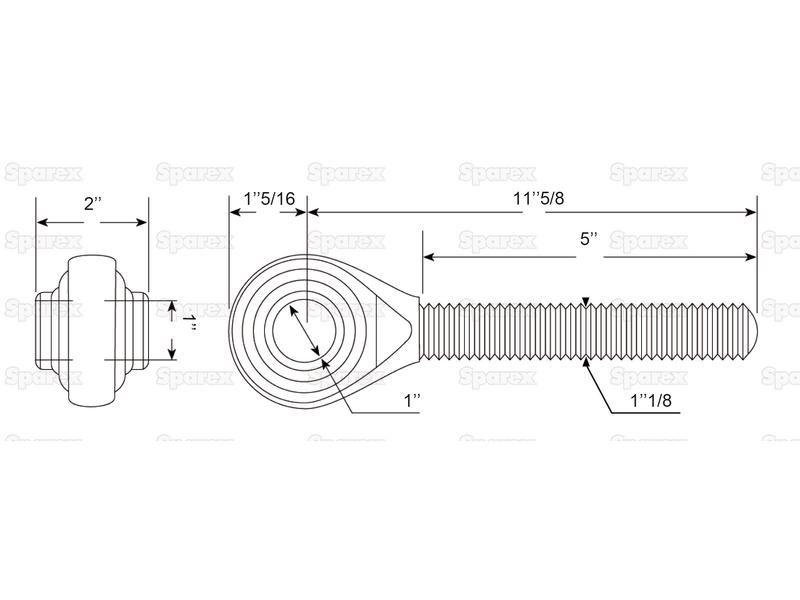

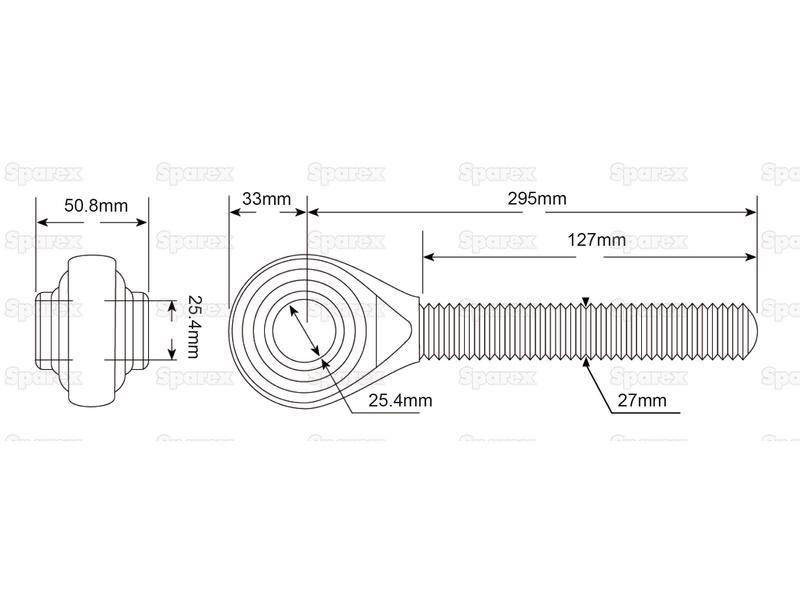

Top Link Ball End - 1 1/16'' UNF - Cat.2 Ball Bore Ø:25.4mm, Thread length:127mm, Overall length:328mm
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Spenco |
| Category | 2 |
| End Radius ins | 1 5/16 |
| End Radius mm | 33 |
| LH or RH | LH |
| Notes | 183615M93 |
| Overall length ins | 12 29/32 |
| Overall length mm | 328 |
| Related Products | 443 |
| Tariff Code | 8708999790 |
| Thread length ins | 5 |
| Thread length mm | 127 |
| Thread size | 1 1/16'' |
| Thread type | UNF |
| Working length ins | 11 5/8 |
| Working length mm | 295 |
Models
| Massey Ferguson |
|---|
| 1080 (1000 N.A. Series), 155 (100 Series), 165 (100 Series), 168 (100 Series), 175 (100 Series), 178 (100 Series), 185 (100 Series), 188 (100 Series), 243 (200 Series), 250 (200 Series), 253 (200 Series), 260 (200 Series), 263 (200 Series), 265 (200 Series), 275 (200 Series), 290 (200 Series), 30B (Industrial Tractors), 30D (Industrial Tractors), 342 (300 Series), 350 (300 Series), 352 (300 Series), 355 (300 Series), 360 (300 Series), 362 (300 Series), 365 (300 Series), 372 (300 Series), 375 (300 Series), 375E BRAZILIAN, 382 (300 Series), 390 (300 Series), 390E BRAZILIAN, 390T, 40B (Industrial Tractors), 40E (Industrial Tractors), 425 BRAZILIAN, 435 BRAZILIAN, 50 (Industrial Tractors), 560 (500 Series), 565 (500 Series), 575 (500 Series), 590 (500 Series), 65 (Pre 100 Series (1947 - 65)), 675 (600 Series), 690 (600 Series), 698 (600 Series), 698T, 699 (600 Series), 765 (Pre 100 Series (1947 - 65)), 865 (Pre 100 Series (1947 - 65)) |
Manufacturer Part Numbers
| Massey Ferguson |
|---|
| 183615M92, 183615M93 |
