Top Link Ball End - 1 1/8'' UNC - Cat.2 for John Deere 940 (40 Series)

Part Number: S.4263Categories: PTO (shaft), Linkage
Top Link Ball End - 1 1/8'' UNC - Cat.2 for John Deere 940 (40 Series)
Top Link Ball End - 1 1/8'' UNC - Cat.2 for John Deere 940 (40 Series)
Top Link Ball End - 1 1/8'' UNC - Cat.2 for John Deere 940 (40 Series)
Top Link Ball End - 1 1/8'' UNC - Cat.2 for John Deere 940 (40 Series)
Top Link Ball End - 1 1/8'' UNC - Cat.2 for John Deere 940 (40 Series)
Top Link Ball End - 1 1/8'' UNC - Cat.2 for John Deere 940 (40 Series)
Top Link Ball End - 1 1/8'' UNC - Cat.2 for John Deere 940 (40 Series)
Top Link Ball End - 1 1/8'' UNC - Cat.2 for John Deere 940 (40 Series)

Part Number: S.4263

Grade: Replacement

Part Details

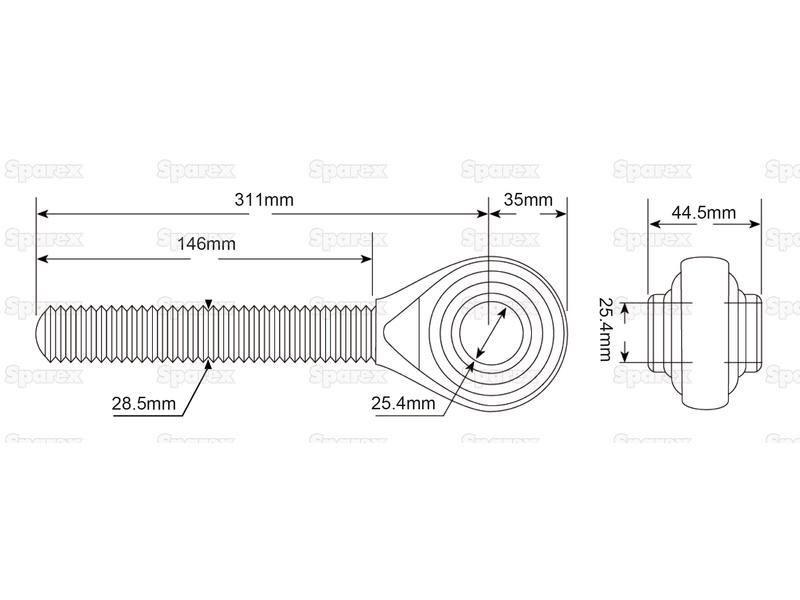

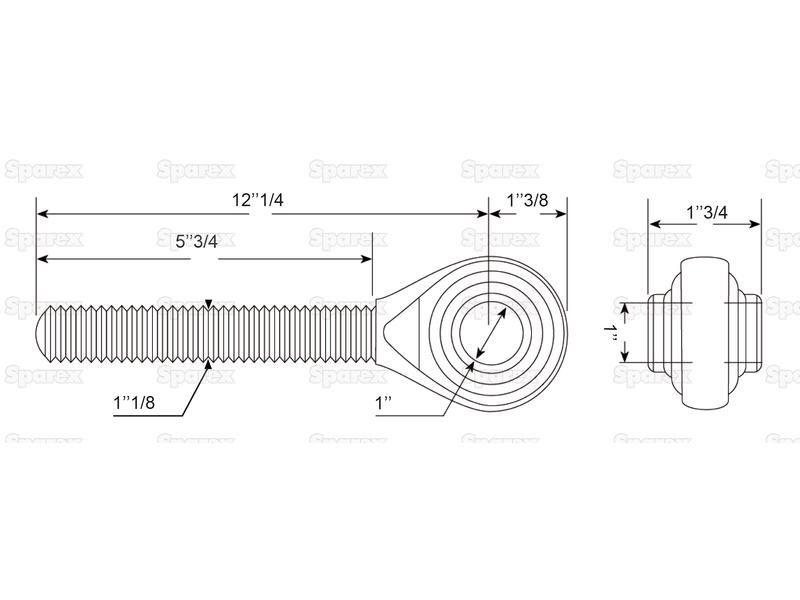

Top Link Ball End - 1 1/8'' UNC - Cat.2 Ball Bore Ø:25.4mm, Thread length:146mm, Overall length:346mm

Technical Information

Ball Bore Ø ins 1
Ball Bore Ø mm 25.4
Ball Width ins 1 3/4
Ball Width mm 44.5
Brand Spenco
Category 2
End Radius ins 1 3/8
End Radius mm 35
LH or RH RH
Notes S-AL39171
Overall length ins 13 5/8
Overall length mm 346
Tariff Code 8708999790
Thread length ins 5 3/4
Thread length mm 146
Thread size 1 1/8''
Thread type UNC
Working length ins 12 1/4
Working length mm 311

Manufacturer Part Numbers

John Deere
AL18136, AL39171, AL67292
