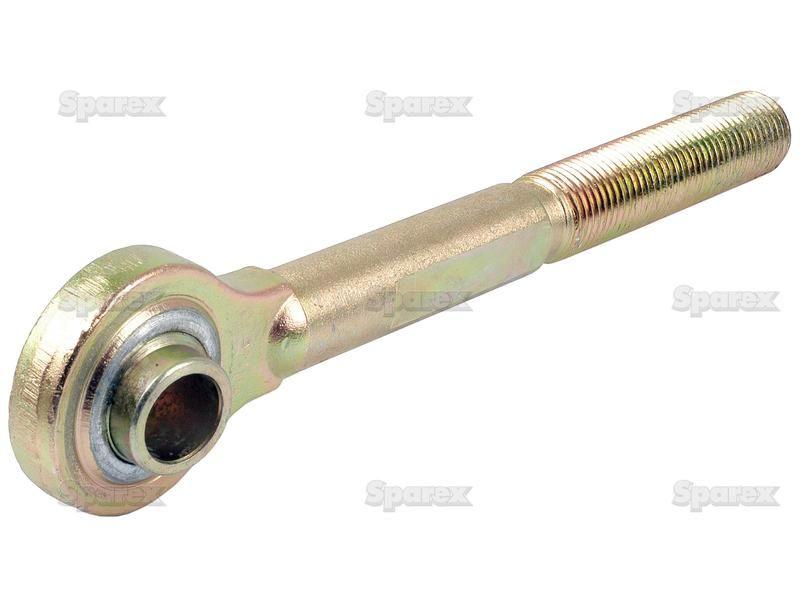

Top Link Ball End - 1 1/4'' UNC - Cat.2 for Ford New Holland
Part Number: S.3634Categories: PTO (shaft), Linkage
Part Number: S.3634
Grade: Replacement
Part Details

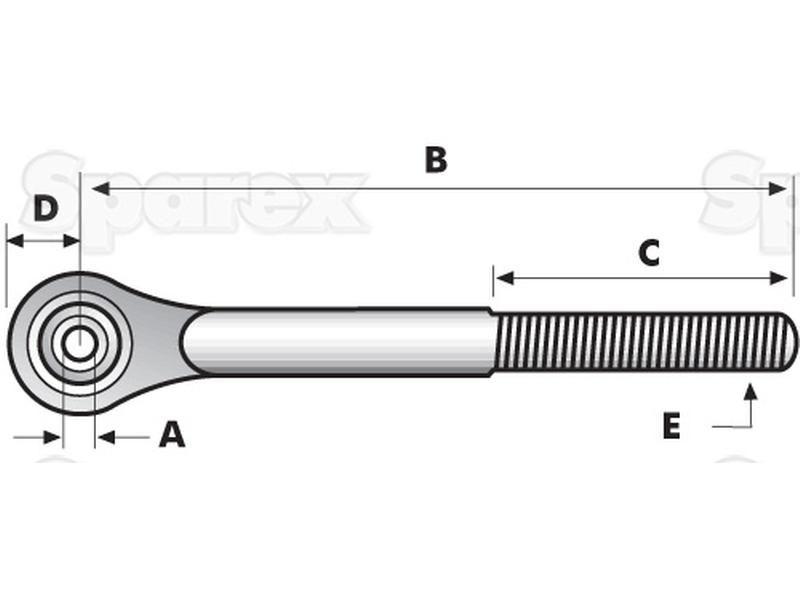

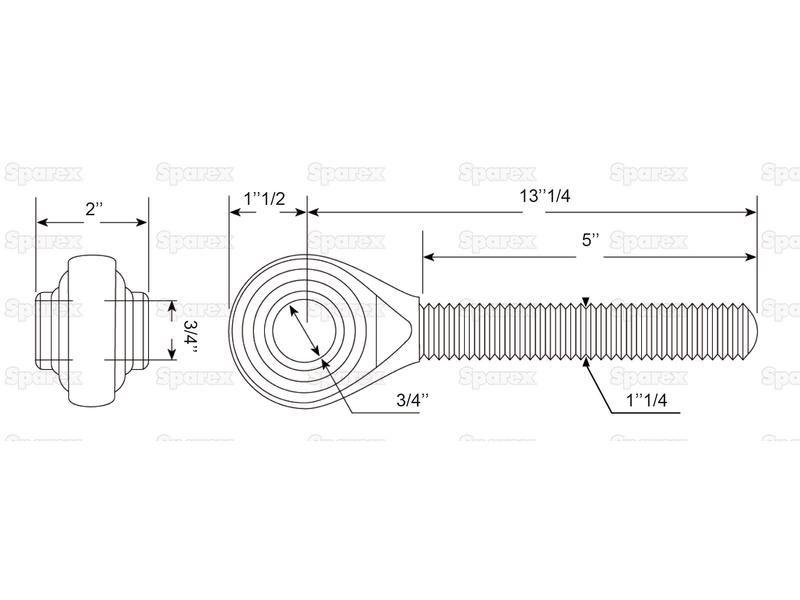

Top Link Ball End - 1 1/4'' UNC - Cat.2 Ball Bore Ø:25.4mm, Thread length:127mm, Overall length:374mm
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Spenco |
| Category | 2 |
| End Radius ins | 1 1/2 |
| End Radius mm | 38 |
| LH or RH | LH |
| Notes | D0NN A914B |
| Overall length ins | 14 23/32 |
| Overall length mm | 374 |
| Tariff Code | 8708999790 |
| Thread length ins | 5 |
| Thread length mm | 127 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
| Working length ins | 13 1/4 |
| Working length mm | 336 |
Models
| Ford New Holland |
|---|
| 2810 (10 Series), 2910 (10 Series), 3000 (1000 Series), 3055 (1000 Series), 3230 (30 Series), 3430 (30 Series), 3550 (Industrial), 3900 (100 Series), 3910 (10 Series), 3930 (30 Series), 4100 (1000 Series), 4110 (10 Series), 4140 (1000 Series), 4200 (1000 Series), 4330 (30 Series), 4340 (40 Series), 4400 (Industrial), 4410 (10 Series), 4500 (Industrial), 4600 (100 Series), 4610 (10 Series), 5000 (1000 Series), 5100 (1000 Series), 5110 (10 Series), 5200 (1000 Series), 5340 (40 Series), 5600 (100 Series), 5610 (10 Series), 5900 (100 Series), 6410 (10 Series), 6600 (100 Series), 6610 (10 Series), 6700 (100 Series), 6710 (10 Series), 6810 (10 Series), 7000 (1000 Series), 7100 (1000 Series), 7200 (1000 Series), 7410 (10 Series), 7600 (100 Series), 7610 (10 Series), 7630, 7700 (100 Series), 7710 (10 Series) |
Manufacturer Part Numbers
| Case IH |
|---|
| 82001389 |
| Ford New Holland |
| 81824144, 82001389, D0NNA914B |
