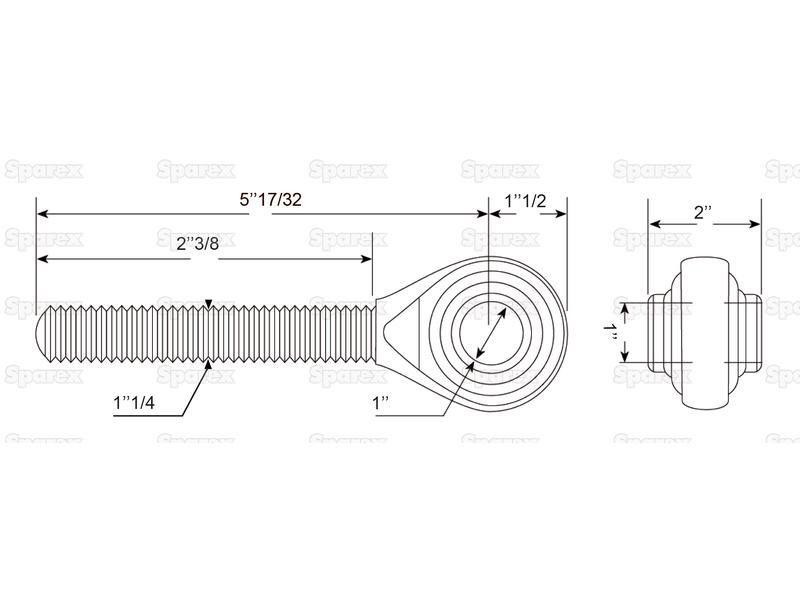

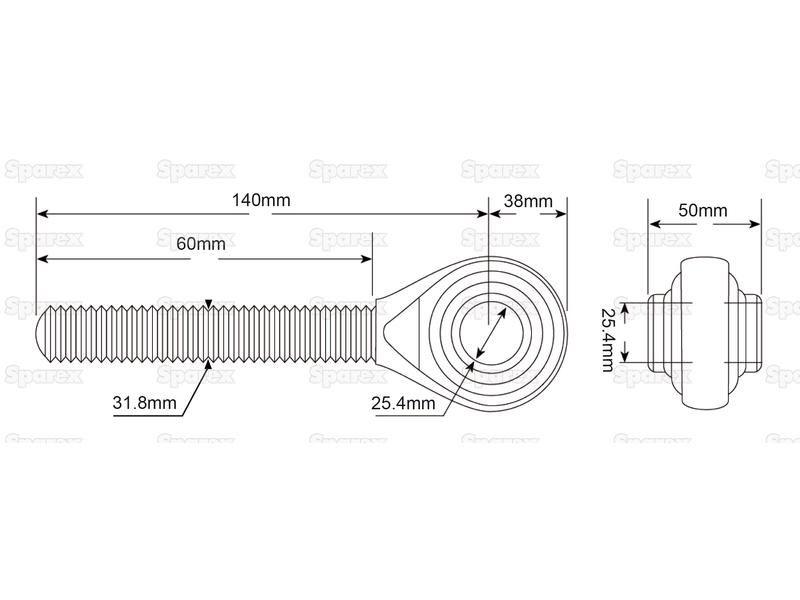

Top Link - Ball End (Cat.2)
Part Number: S.4201Categories: PTO (shaft), Linkage
Part Number: S.4201
Grade: Replacement
Part Details
Top Link - Ball End (Cat.2) Length: 140mm ('')Thread length: mm ('')Thread size: 1 1/4'''' UNCBall Bore Ø: mm ('')
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width mm | 2 |
| Brand | Spenco |
| Category | 2 |
| End Radius ins | 1 1/2 |
| End Radius mm | 38 |
| LH or RH | RH |
| Overall length ins | 7 1/64 |
| Overall length mm | 178 |
| Tariff Code | 8708999790 |
| Thread length mm | 60 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
| Working length ins | 5 33/64 |
| Working length mm | 140 |
