Top Link - Ball End (Cat.2)
Part Number: S.3942Categories: PTO (shaft), Linkage
Part Number: S.3942
Grade: Replacement
Part Details

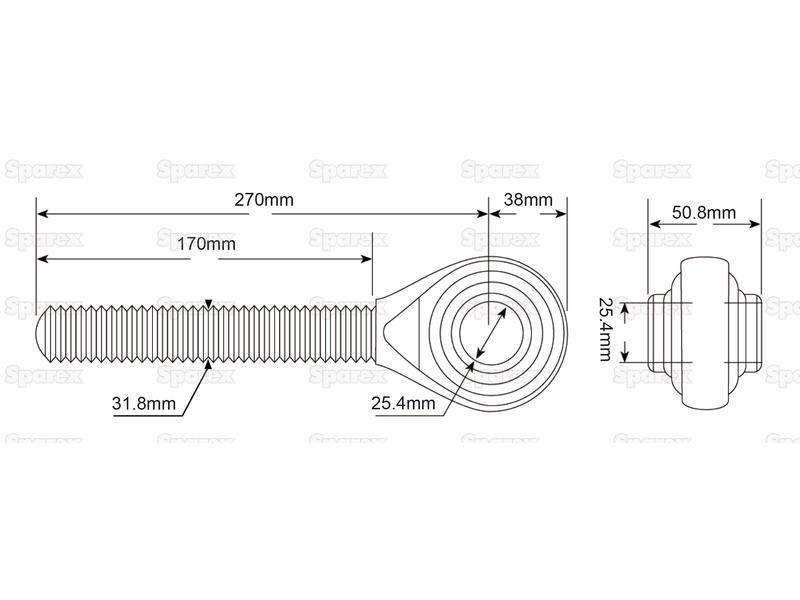

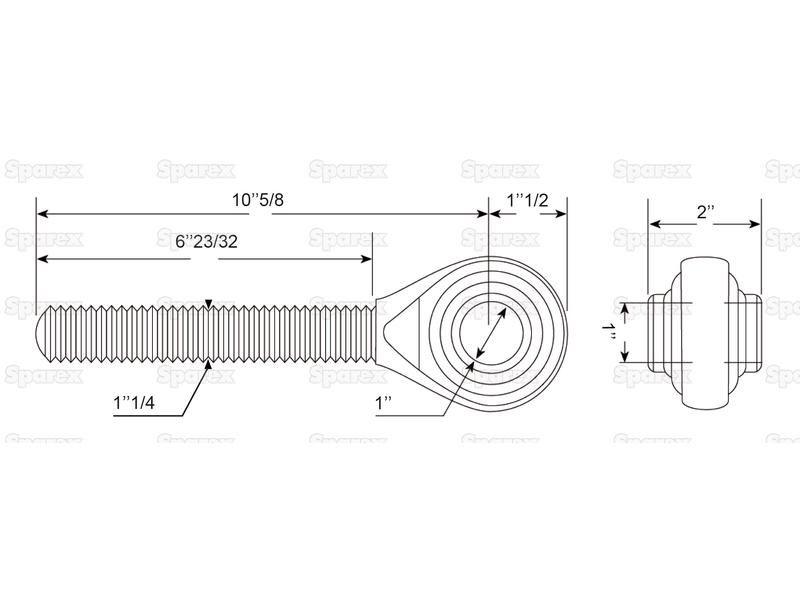

Top Link - Ball End (Cat.2) Length: 270mm (10 5/8'')Thread length: 170mm (6 11/16'')Thread size: 1 1/4'''' UNCBall Bore Ø: 25.4mm (1'')
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Spenco |
| Category | 2 |
| End Radius ins | 1 1/2 |
| End Radius mm | 38 |
| LH or RH | RH |
| Overall length ins | 12 1/8 |
| Overall length mm | 308 |
| Tariff Code | 8708999790 |
| Thread length ins | 6 11/16 |
| Thread length mm | 170 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
| Working length ins | 10 5/8 |
| Working length mm | 270 |
