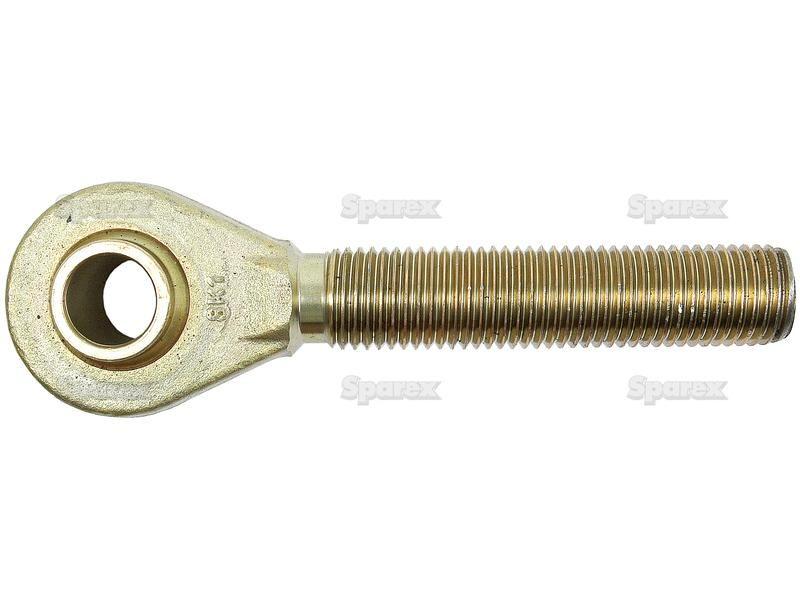

Top Link - Ball End (Cat.2)
Part Number: S.17610Categories: PTO (shaft), Linkage
Part Number: S.17610
Grade: Replacement
Part Details

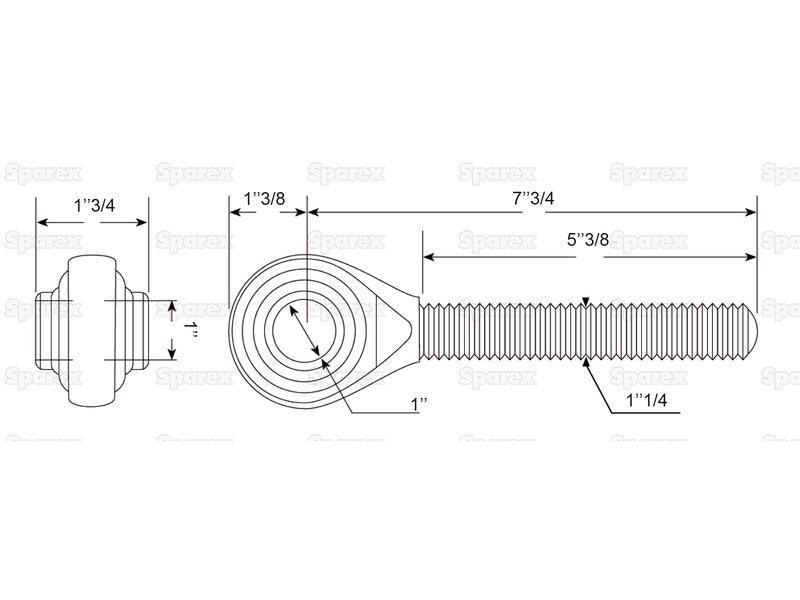

Top Link - Ball End (Cat.2) Length: 197mm (7 3/4'')Thread length: 136mm (5 3/8'')Thread size: 1 1/4'''' UNCBall Bore Ø: 25.4mm (1'')
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 1 3/4 |
| Ball Width mm | 44.5 |
| Brand | Spenco |
| Category | 2 |
| End Radius ins | 1 3/8 |
| End Radius mm | 35 |
| LH or RH | LH |
| Notes | 1 Side Swaged/Hardened Balls |
| Overall length ins | 9 9/64 |
| Overall length mm | 232 |
| Tariff Code | 8708999790 |
| Thread length ins | 5 3/8 |
| Thread length mm | 136 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
| Working length ins | 7 3/4 |
| Working length mm | 197 |
