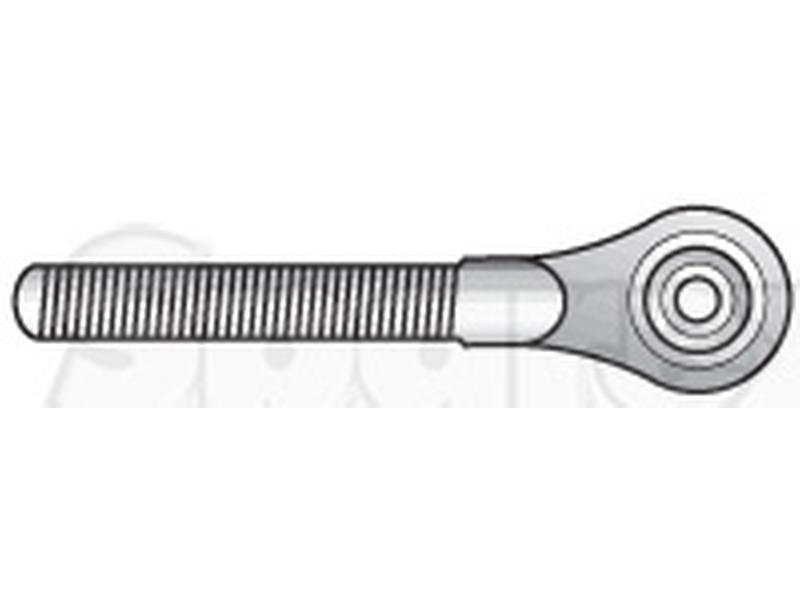

Top Link - Ball End (Cat.2)
Part Number: S.16847Categories: PTO (shaft), Linkage
Part Number: S.16847
Grade: Replacement
Part Details

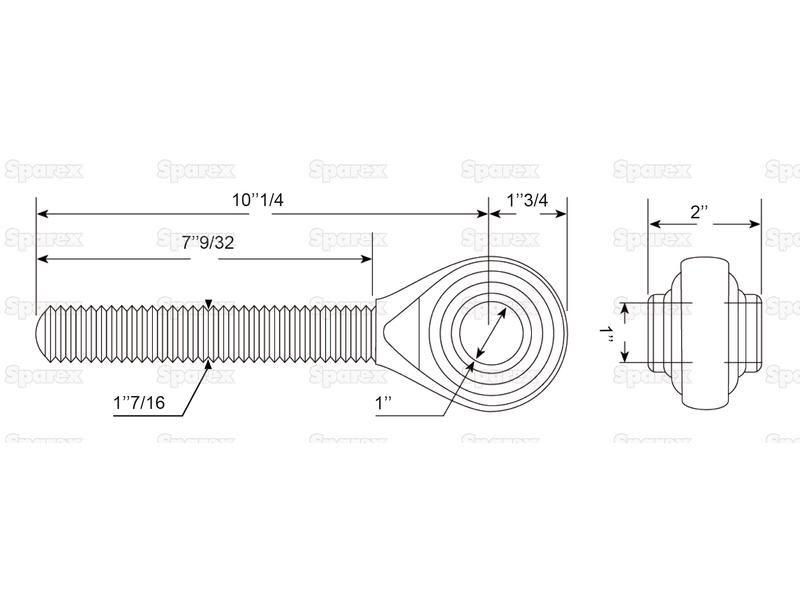

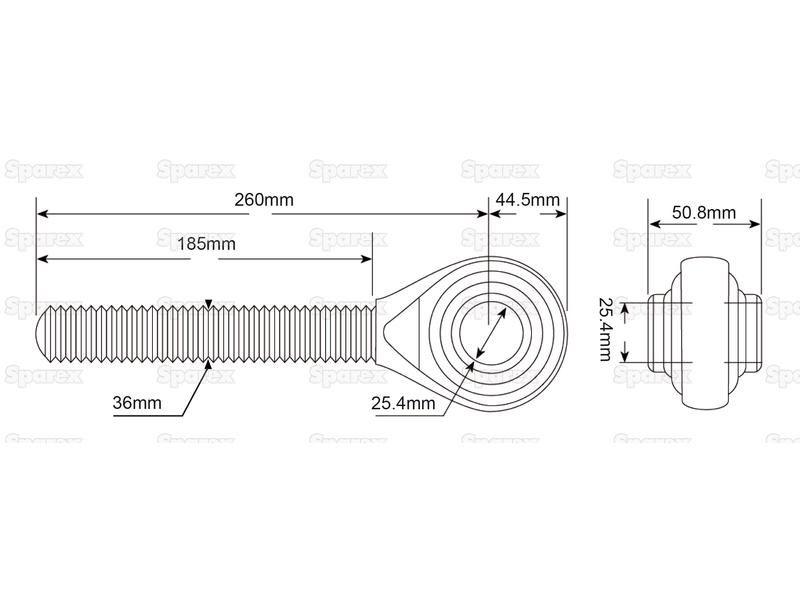

Top Link - Ball End (Cat.2) Length: 260mm (10 1/4'')Thread length: 185mm (7 1/4'')Thread size: M36x3'' MetricBall Bore Ø: 25.4mm (1'')
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Sparex |
| Category | 2 |
| End Radius ins | 1 3/4 |
| End Radius mm | 44.5 |
| Finish | Zinc & Gold Passivate |
| Length ins | 10 1/4 |
| Length mm | 260 |
| LH or RH | RH |
| Notes | One Side Swaged. |
| Tariff Code | 8708999790 |
| Thread length ins | 7 1/4 |
| Thread length mm | 185 |
| Thread size | M36 x 3.00 |
| Thread type | Metric |
