Top Link - Ball End (Cat.2)
Part Number: S.16075Categories: PTO (shaft), Linkage
Part Number: S.16075
Grade: Replacement
Part Details

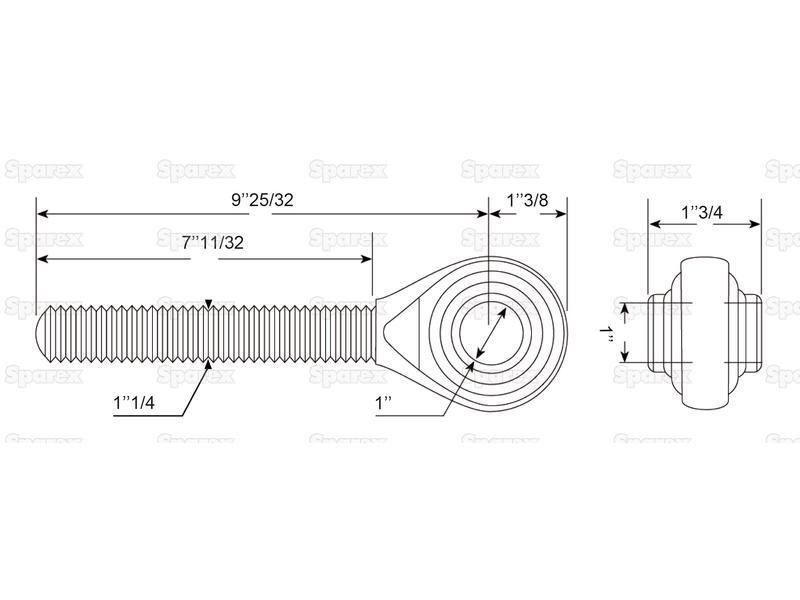

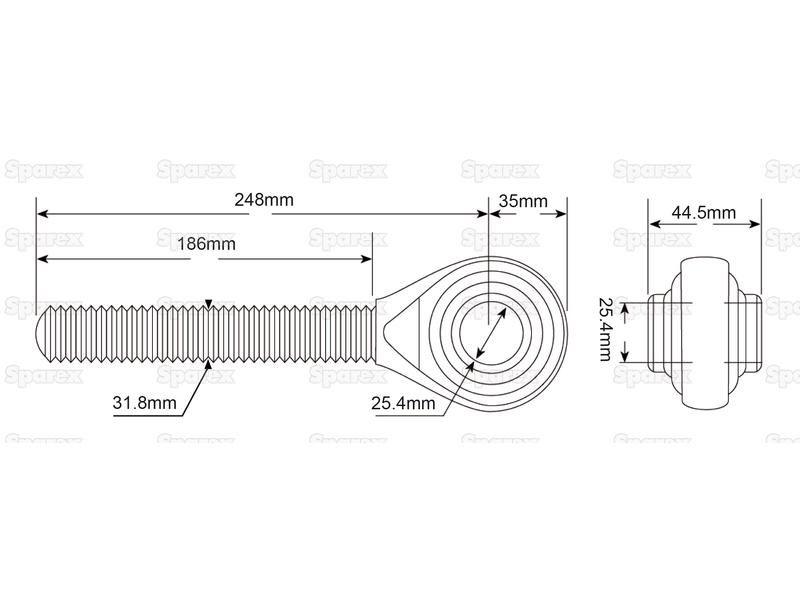

Top Link - Ball End (Cat.2) Length: 248mm (9 3/4'')Thread length: 186mm (7 5/16'')Thread size: 1 1/4'''' UNCBall Bore Ø: 25.4mm (1'')
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 1 3/4 |
| Ball Width mm | 44.5 |
| Brand | Spenco |
| Category | 2 |
| End Radius ins | 1 3/8 |
| End Radius mm | 35 |
| Finish | Zinc & Gold Passivate |
| Length ins | 9 3/4 |
| Length mm | 248 |
| LH or RH | RH |
| Notes | 1 Side Swaged/Hardened Balls |
| Tariff Code | 8708999790 |
| Thread length ins | 7 5/16 |
| Thread length mm | 186 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
