Top Link - Ball End (Cat.2)
Part Number: S.15857Categories: PTO (shaft), Linkage
Part Number: S.15857
Grade: Replacement
Part Details

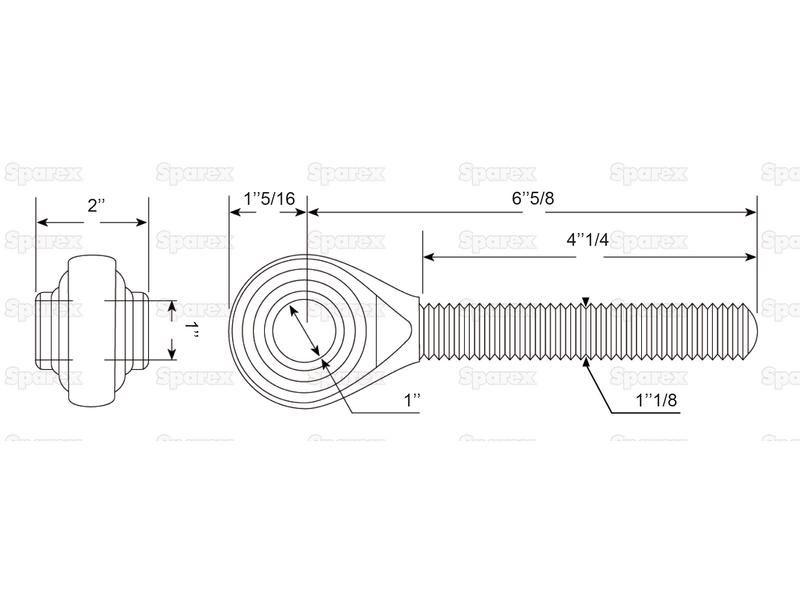

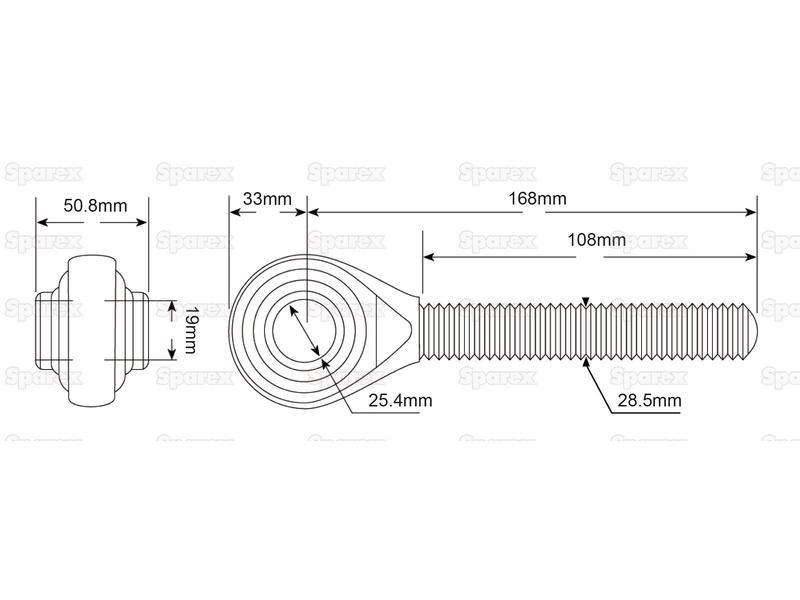

Top Link - Ball End (Cat.2) Length: 168mm (6 5/8'')Thread length: 108mm (4 1/4'')Thread size: 1 1/8'''' UNCBall Bore Ø: 25.4mm (1'')
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Spenco |
| Category | 2 |
| End Radius ins | 1 5/16 |
| End Radius mm | 33 |
| LH or RH | LH |
| Overall length ins | 7 29/32 |
| Overall length mm | 201 |
| Tariff Code | 8708999790 |
| Thread length ins | 4 1/4 |
| Thread length mm | 108 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Working length ins | 6 5/8 |
| Working length mm | 168 |
