Top Link - Ball End (Cat.2)
Part Number: S.15555Categories: PTO (shaft), Linkage
Part Number: S.15555
Grade: Replacement
Part Details

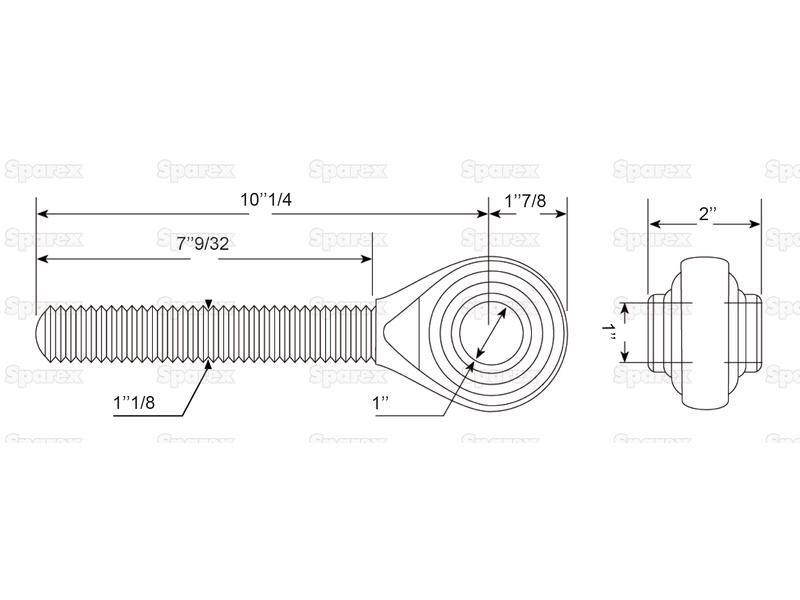

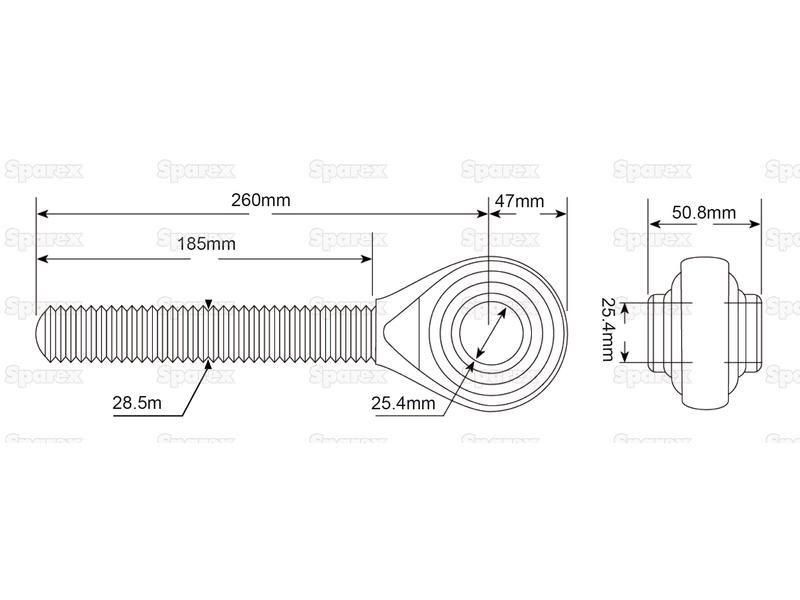

Top Link - Ball End (Cat.2) Length: 260mm (10 1/4'')Thread length: 185mm (7 /4c='')Thread size: 1 3/8'''' UNCBall Bore Ø: 25.4mm (1'')
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Spenco |
| Category | 2 |
| End Radius ins | 1 3/4 |
| End Radius mm | 44.5 |
| LH or RH | RH |
| Overall length ins | 11 31/32 |
| Overall length mm | 304 |
| Tariff Code | 8708999790 |
| Thread length ins | 7 /4c= |
| Thread length mm | 185 |
| Thread size | 1 3/8'' |
| Thread type | UNC |
| Working length ins | 10 1/4 |
| Working length mm | 260 |
