Top Link Ball End - 1 1/16'' UNF - Cat.1 for Massey Ferguson

Part Number: S.449Categories: PTO (shaft), Linkage
Top Link Ball End - 1 1/16'' UNF - Cat.1 for Massey Ferguson
Top Link Ball End - 1 1/16'' UNF - Cat.1 for Massey Ferguson
Top Link Ball End - 1 1/16'' UNF - Cat.1 for Massey Ferguson
Top Link Ball End - 1 1/16'' UNF - Cat.1 for Massey Ferguson
Top Link Ball End - 1 1/16'' UNF - Cat.1 for Massey Ferguson
Top Link Ball End - 1 1/16'' UNF - Cat.1 for Massey Ferguson
Top Link Ball End - 1 1/16'' UNF - Cat.1 for Massey Ferguson

Part Number: S.449

Grade: Replacement

Part Details

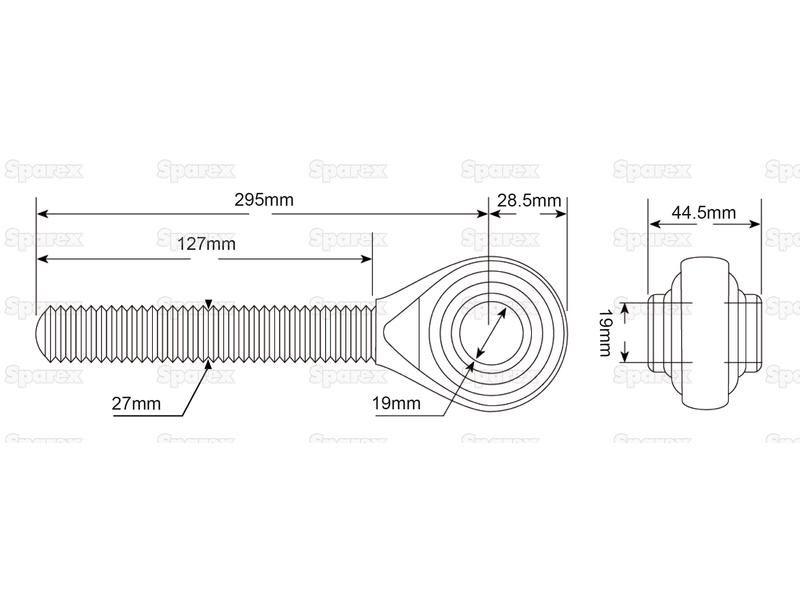

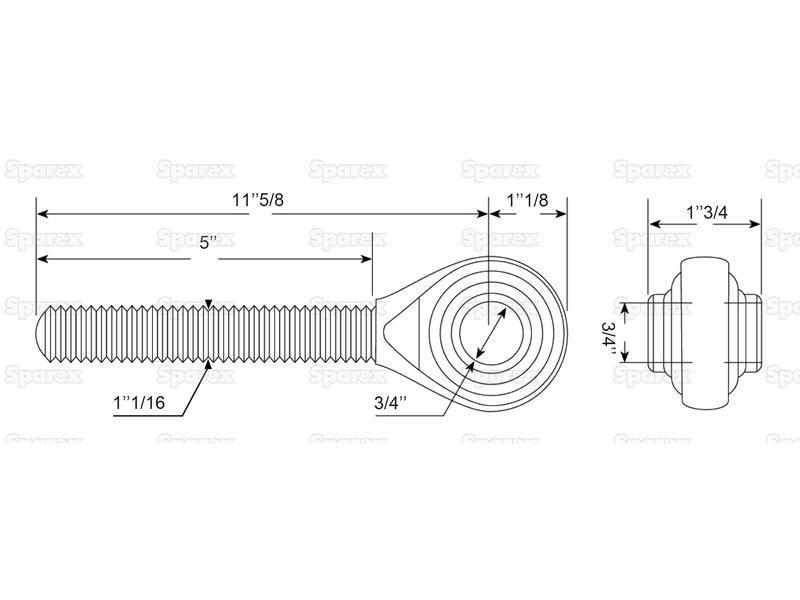

Top Link Ball End - 1 1/16'' UNF - Cat.1 Ball Bore Ø:19mm, Thread length:127mm, Overall length:323mm

Technical Information

Ball Bore Ø ins 3/4
Ball Bore Ø mm 19
Ball Width ins 1 3/4
Ball Width mm 44.5
Brand Spenco
Category 1
End Radius ins 1 1/8
End Radius mm 28.5
LH or RH RH
Notes 184079M91
Overall length ins 12 23/32
Overall length mm 323
Related Products 448
Tariff Code 8708999790
Thread length ins 5
Thread length mm 127
Thread size 1 1/16''
Thread type UNF
Working length ins 11 5/8
Working length mm 295

Models

Massey Ferguson
1080 (1000 N.A. Series), 133 (100 Series), 135 (100 Series), 135 GAS / 135 PETROL, 140 (100 Series), 145 (100 Series), 148 (100 Series), 152 (100 Series), 155 (100 Series), 158 (100 Series), 165 (100 Series), 168 (100 Series), 175 (100 Series), 178 (100 Series), 185 (100 Series), 188 (100 Series), 20C (Industrial Tractors), 20D (Industrial Tractors), 20F (Industrial Tractors), 230 (200 Series), 235 (200 Series), 240 (200 Series), 245 (200 Series), 250 (200 Series), 253 (200 Series), 255 (200 Series), 260 (200 Series), 265 (200 Series), 275 (200 Series), 290 (200 Series), 30B (Industrial Tractors), 30D (Industrial Tractors), 30E (Industrial Tractors), 340 (300 Series), 342 (300 Series), 35 (Pre 100 Series (1947 - 65)), 35 GAS / 35 PETROL, 350 (300 Series), 355 (300 Series), 35X (Pre 100 Series (1947 - 65)), 360 (300 Series), 362 (300 Series), 365 (300 Series), 372 (300 Series), 375 (300 Series), 375E BRAZILIAN, 382 (300 Series), 390 (300 Series), 390E BRAZILIAN, 390T, 40B (Industrial Tractors), 40E (Industrial Tractors), 50 (Industrial Tractors), 550 (500 Series), 560 (500 Series), 565 (500 Series), 575 (500 Series), 590 (500 Series), 65 (Pre 100 Series (1947 - 65)), 675 (600 Series), 690 (600 Series), 698 (600 Series), 698T, 699 (600 Series), 765 (Pre 100 Series (1947 - 65)), 865 (Pre 100 Series (1947 - 65)), FE35 (Pre 100 Series (1947 - 65))

Manufacturer Part Numbers

Massey Ferguson
184079M91
