Top Link - Ball End (Cat.1)
Part Number: S.343Categories: PTO (shaft), Linkage
Part Number: S.343
Grade: Replacement
Part Details

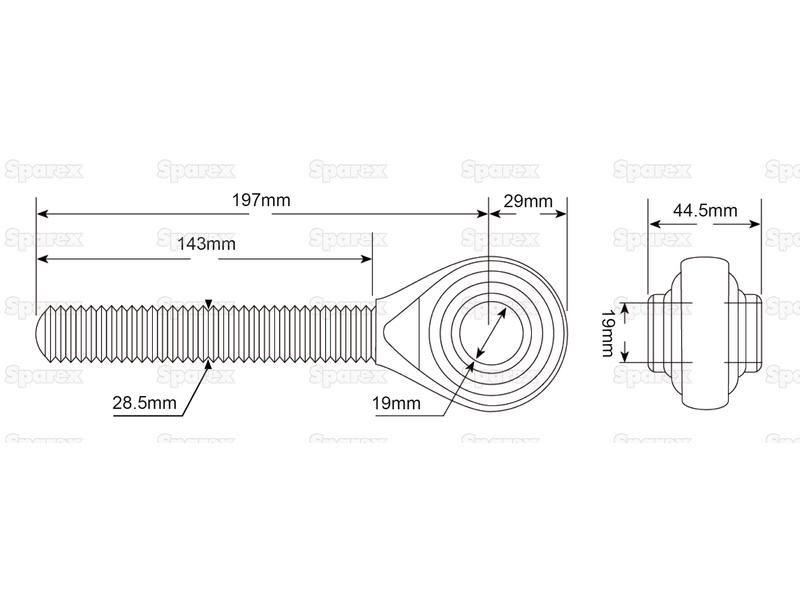

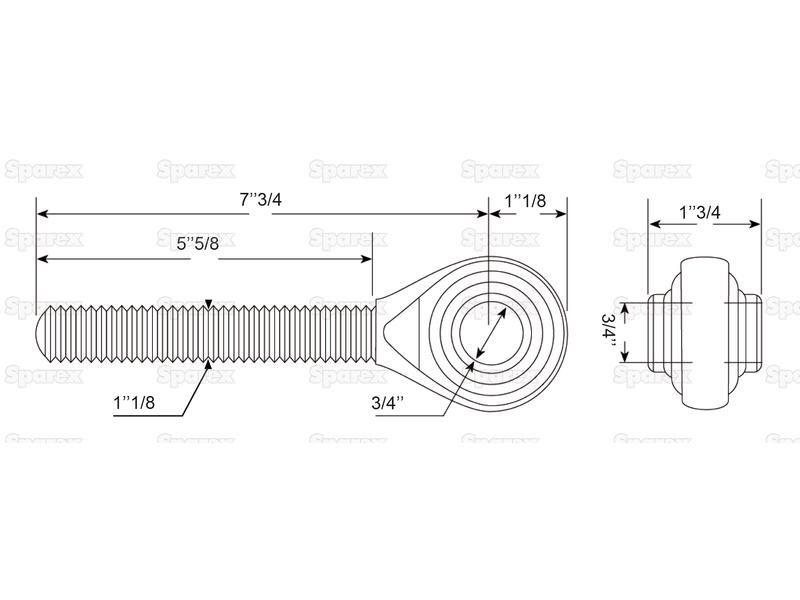

Top Link - Ball End (Cat.1) Length: 197mm (7 3/4'')Thread length: 143mm (5 5/8'')Thread size: 1 1/8'''' UNCBall Bore Ø: 19mm (3/4'')
Technical Information
| Ball Bore Ø ins | 3/4 |
| Ball Bore Ø mm | 19 |
| Ball Width ins | 1 3/4 |
| Ball Width mm | 44.5 |
| Brand | Sparex |
| Category | 1 |
| Duty | Standard |
| End Radius ins | 1 1/8 |
| End Radius mm | 28.6 |
| Finish | Zinc Plated |
| Length ins | 7 3/4 |
| Length mm | 197 |
| LH or RH | RH |
| Related Products | 342 |
| Tariff Code | 8708999790 |
| Thread length ins | 5 5/8 |
| Thread length mm | 143 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
