Top Link - Ball End (Cat.1)
Part Number: S.15838Categories: PTO (shaft), Linkage
Part Number: S.15838
Grade: Replacement
Part Details

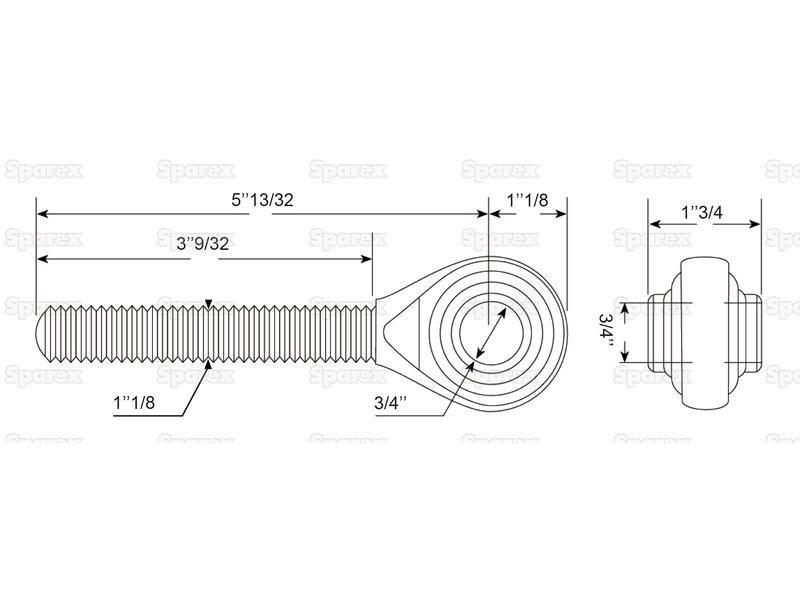

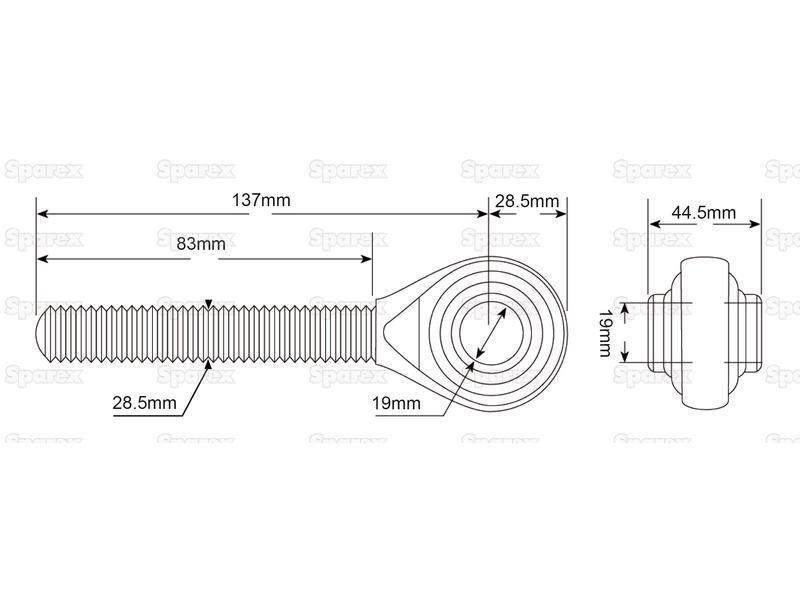

Top Link - Ball End (Cat.1) Length: 137mm (5 3/8'')Thread length: 83mm (3 1/4'')Thread size: 1 1/8'''' UNCBall Bore Ø: 19mm (3/4'')
Technical Information
| Ball Bore Ø ins | 3/4 |
| Ball Bore Ø mm | 19 |
| Ball Width ins | 1 3/4 |
| Ball Width mm | 44.5 |
| Brand | Spenco |
| Category | 1 |
| End Radius ins | 1 1/8 |
| End Radius mm | 28.6 |
| LH or RH | RH |
| Overall length ins | 6 1/2 |
| Overall length mm | 165 |
| Related Products | 15837 |
| Tariff Code | 8708999790 |
| Thread length ins | 3 1/4 |
| Thread length mm | 83 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Working length ins | 5 3/8 |
| Working length mm | 137 |
