Top Link Ball End - 3/4 UNC - Cat.0
Part Number: S.4423Categories: PTO (shaft), Linkage
Part Number: S.4423
Grade: Replacement
Part Details

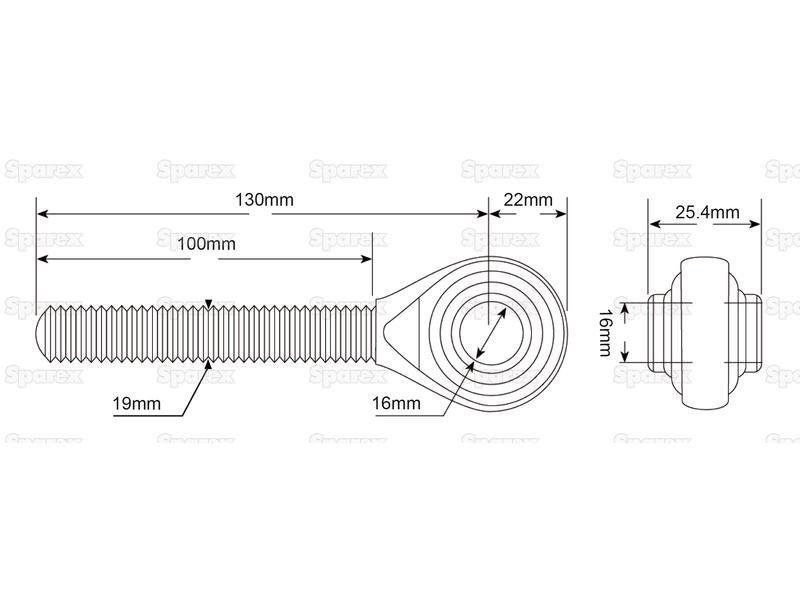

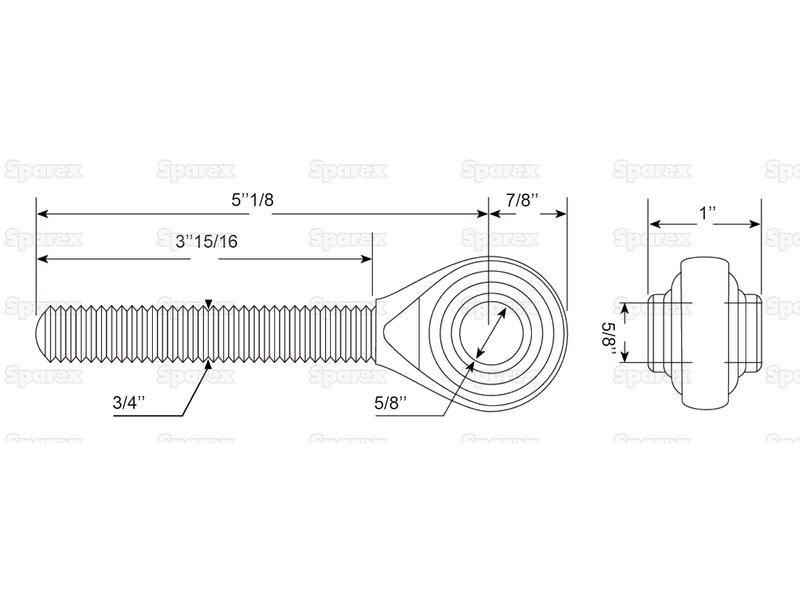

Top Link Ball End - 3/4 UNC - Cat.0 Ball Bore Ø:16mm, Thread length:100mm, Overall length:152mm
Technical Information
| Ball Bore Ø ins | 5/8 |
| Ball Bore Ø mm | 16 |
| Ball Width ins | 1 |
| Ball Width mm | 25.4 |
| Brand | Sparex |
| Category | 0 |
| End Radius ins | 7/8 |
| End Radius mm | 22 |
| LH or RH | RH |
| Overall length ins | 5 63/64 |
| Overall length mm | 152 |
| Related Products | 4422 |
| Tariff Code | 8708999790 |
| Thread length ins | 3 15/16 |
| Thread length mm | 100 |
| Thread size | 3/4 |
| Thread type | UNC |
| Working length ins | 5 1/8 |
| Working length mm | 130 |
