Top Link Ball End - 1 1/8'' UNC - Cat.2
Part Number: S.5407Categories: PTO (shaft), Linkage
Part Number: S.5407
Grade: Replacement
Part Details

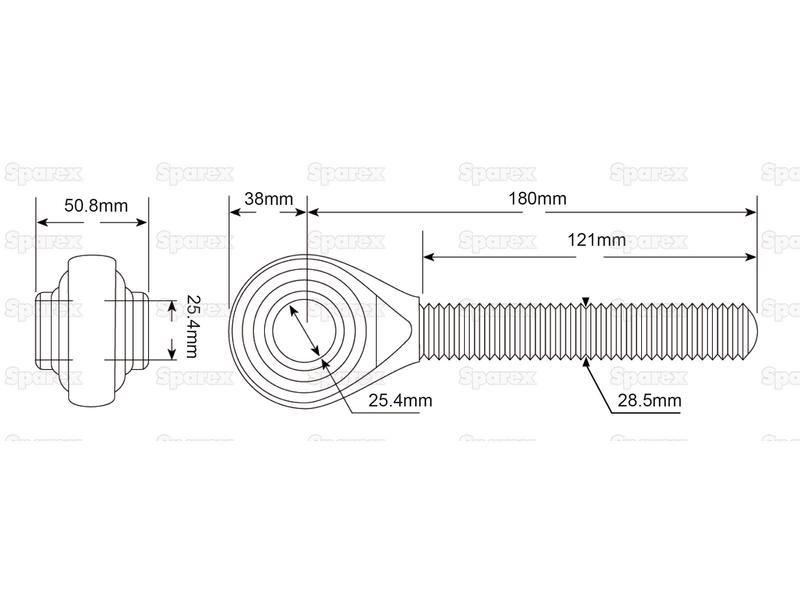

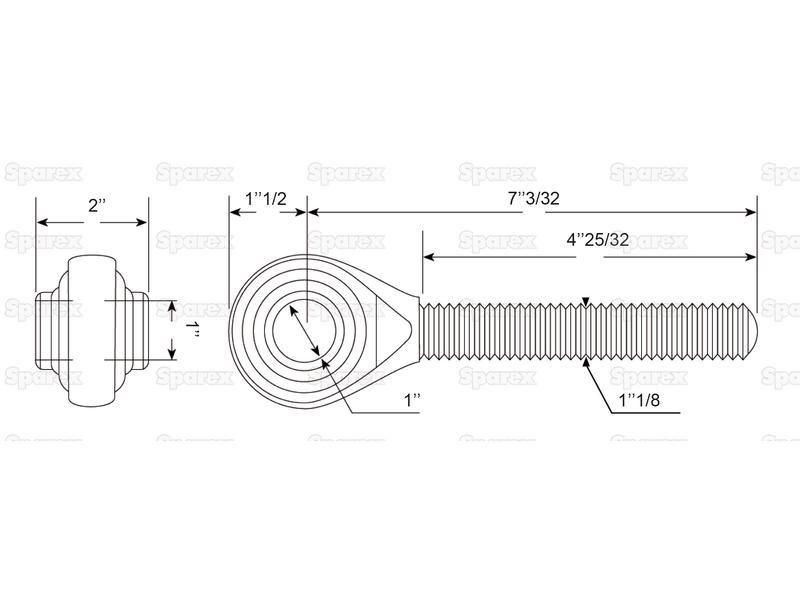

Top Link Ball End - 1 1/8'' UNC - Cat.2 Ball Bore Ø:25.4mm, Thread length:121mm, Overall length:218mm
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Sparex |
| Category | 2 |
| End Radius ins | 1 1/2 |
| End Radius mm | 38 |
| LH or RH | LH |
| Overall length ins | 8 37/64 |
| Overall length mm | 218 |
| Tariff Code | 8708999790 |
| Thread length ins | 4 3/4 |
| Thread length mm | 121 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Working length ins | 7 3/32 |
| Working length mm | 180 |
