Top Link Ball End - 1 1/8'' UNC - Cat.2
Part Number: S.384Categories: PTO (shaft), Linkage
Part Number: S.384
Grade: Replacement
Part Details

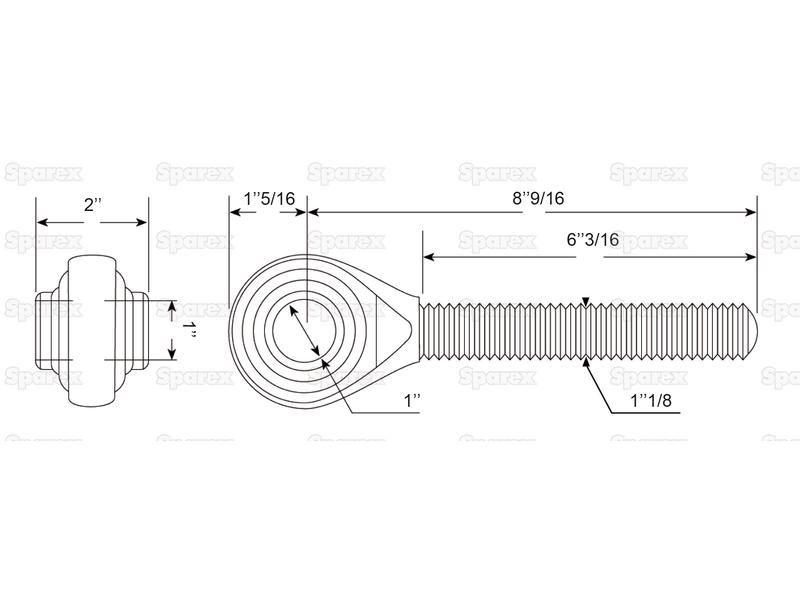

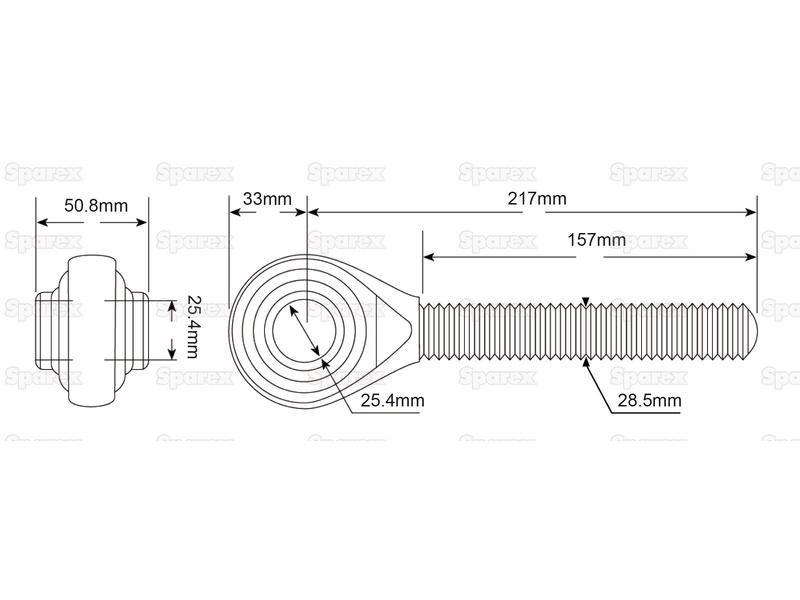

Top Link Ball End - 1 1/8'' UNC - Cat.2 Ball Bore Ø:25.4mm, Thread length:157mm, Overall length:250mm
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 2 |
| Ball Width mm | 50.8 |
| Brand | Sparex |
| Category | 2 |
| End Radius ins | 1 5/16 |
| End Radius mm | 33 |
| LH or RH | LH |
| Overall length ins | 9 27/32 |
| Overall length mm | 250 |
| Tariff Code | 8708999790 |
| Thread length ins | 6 3/16 |
| Thread length mm | 157 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Working length ins | 8 9/16 |
| Working length mm | 217 |
