Top Link Ball End - 1 1/8'' UNC - Cat.2
Part Number: S.292Categories: PTO (shaft), Linkage
Part Number: S.292
Grade: Replacement
Part Details

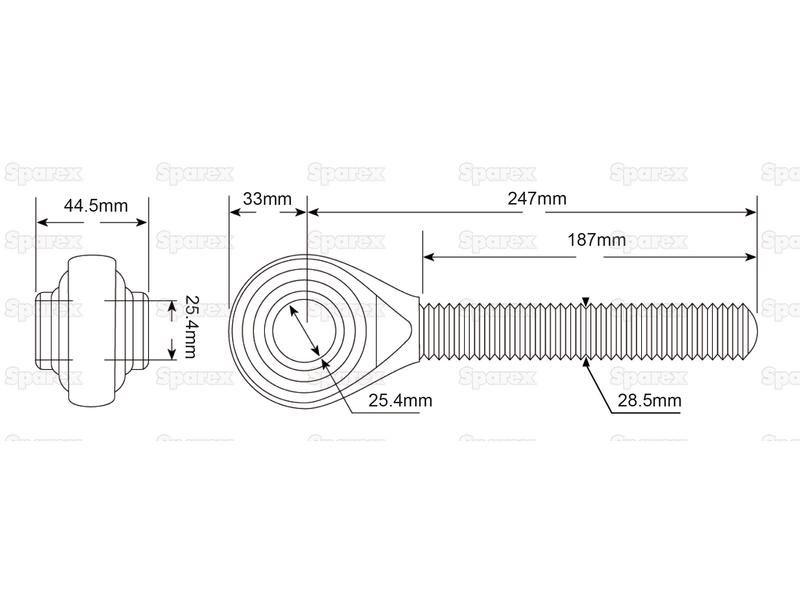

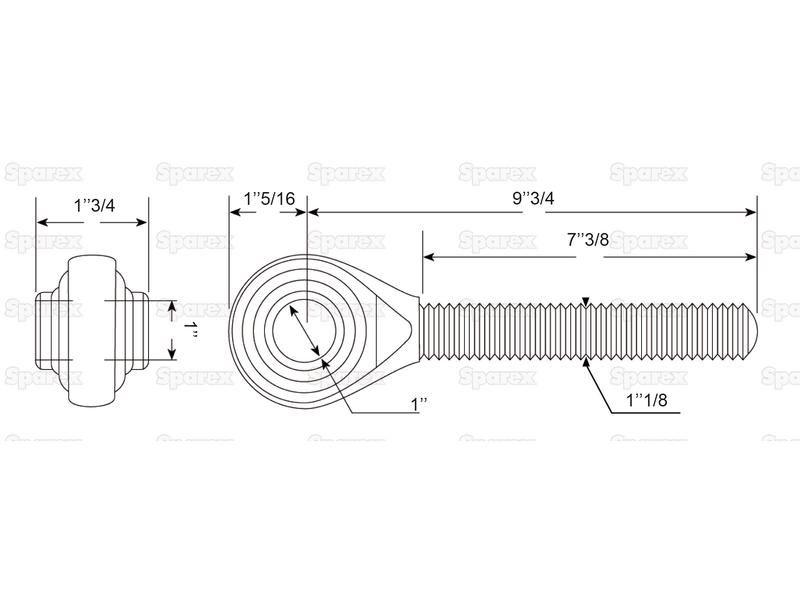

Top Link Ball End - 1 1/8'' UNC - Cat.2 Ball Bore Ø:25.4mm, Thread length:187mm, Overall length:280mm
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width ins | 1 3/4 |
| Ball Width mm | 44.5 |
| Brand | Sparex |
| Category | 2 |
| End Radius ins | 1 5/16 |
| End Radius mm | 33 |
| LH or RH | LH |
| Overall length ins | 11 1/32 |
| Overall length mm | 280 |
| Tariff Code | 8708999790 |
| Thread length ins | 7 3/8 |
| Thread length mm | 187 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Working length ins | 9 3/4 |
| Working length mm | 247 |
