Top Link Ball End - 1 1/8'' UNC - Cat.1
Part Number: S.291Categories: PTO (shaft), Linkage
Part Number: S.291
Grade: Replacement
Part Details

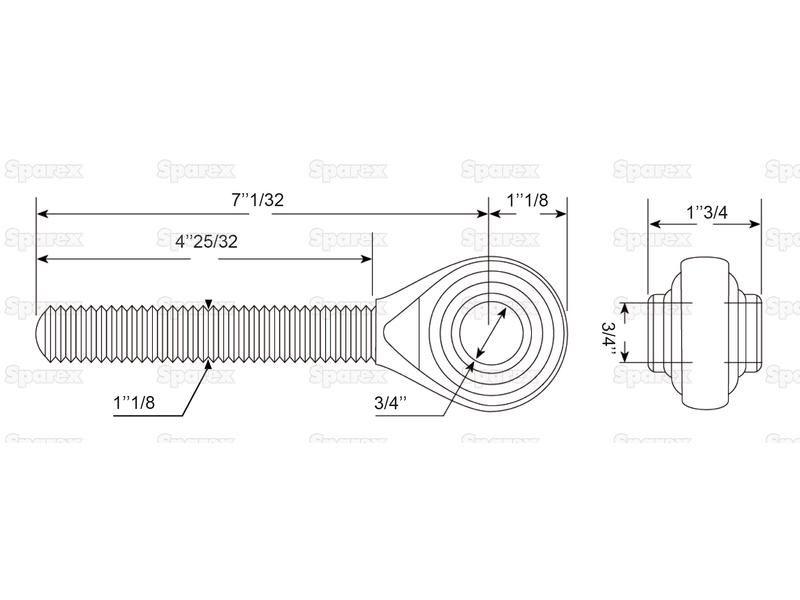

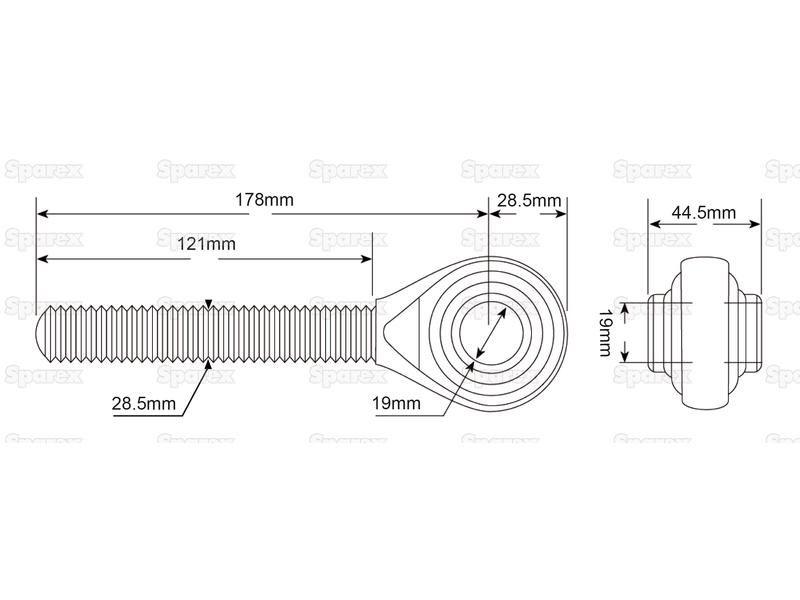

Top Link Ball End - 1 1/8'' UNC - Cat.1 Ball Bore Ø:19mm, Thread length:121mm, Overall length:206mm
Technical Information
| Ball Bore Ø ins | 3/4 |
| Ball Bore Ø mm | 19 |
| Ball Width ins | 1 3/4 |
| Ball Width mm | 44.5 |
| Brand | Sparex |
| Category | 1 |
| End Radius ins | 1 1/8 |
| End Radius mm | 28.6 |
| LH or RH | RH |
| Overall length ins | 8 7/64 |
| Overall length mm | 206 |
| Related Products | 290 |
| Tariff Code | 8708999790 |
| Thread length ins | 4 3/4 |
| Thread length mm | 121 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Working length ins | 7 |
| Working length mm | 178 |
