Top Link Ball End - 1 1/4'' UNC - Cat.2
Part Number: S.4916075Categories: PTO (shaft), Linkage
Part Number: S.4916075
Grade: Replacement
Part Details

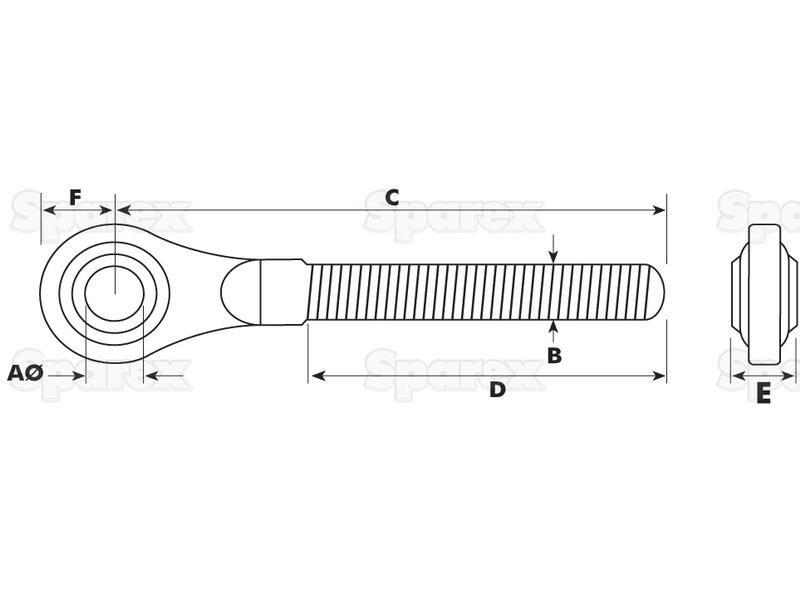

Top Link Ball End - 1 1/4'' UNC - Cat.2 Ball Bore Ø:25.4mm, Thread length:186mm, Overall length:276mm
Technical Information
| Ball Bore Ø ins | 1 |
| Ball Bore Ø mm | 25.4 |
| Ball Width mm | 44.5 |
| Brand | Sparex |
| Category | 2 |
| End Radius ins | 1 |
| End Radius mm | 25.4 |
| LH or RH | RH |
| Overall length ins | 10 55/64 |
| Overall length mm | 276 |
| Related Products | 4916074 |
| Tariff Code | 8708999790 |
| Thread length mm | 186 |
| Thread size | 1 1/4'' |
| Thread type | UNC |
| Working length ins | 9 7/8 |
| Working length mm | 251 |
