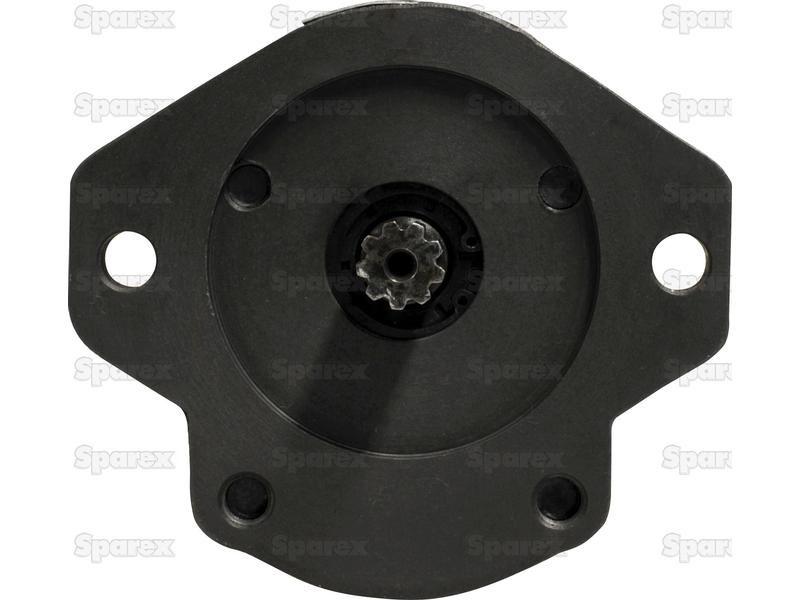

Tandem Hydraulic Pump for Case IH

Part Number: S.34568Categories: Hydraulics
Tandem Hydraulic Pump for Case IH
Tandem Hydraulic Pump for Case IH
Tandem Hydraulic Pump for Case IH
Tandem Hydraulic Pump for Case IH

Part Number: S.34568

Grade: Replacement

Part Details

Tandem Hydraulic Pump

Technical Information

Brand Sparex

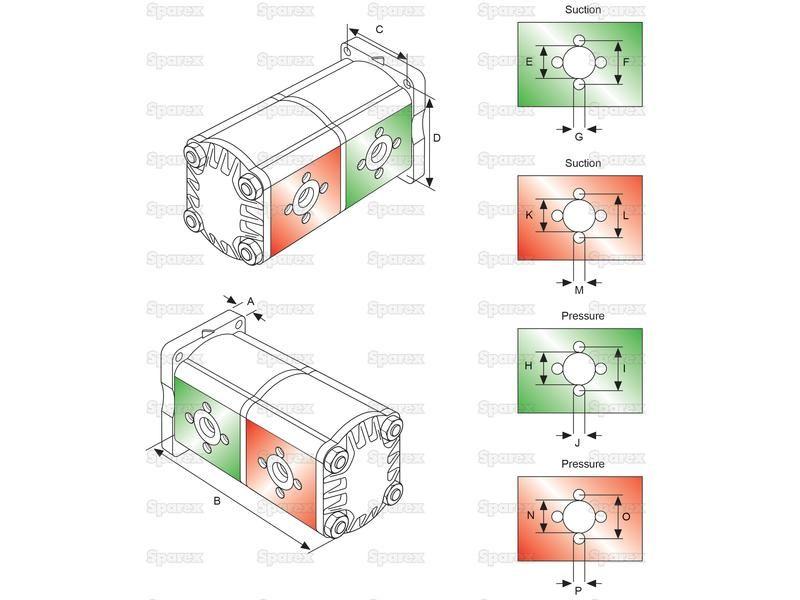

Diagram specifications A: , - B (mm): 216.6, - C: 106, - D: , - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M6, - K: 20, - L: 40, - M: M6, - N: 15, - O: 35, - P: M6.
Front inlet hole fixing hole size M6
Front inlet hole fixing hole spacing 40
Front inlet hole size 20
Front outlet hole fixing hole size M6
Front outlet hole fixing hole spacing 35
Front outlet hole size 15
Inner max. gallon per minute 17.8
Inner maximium litres per minute 67.5
Length mm 216.6
Outer max. gallons per minute 12.7
Outer maximium litres per minute 48
Pump rotation Anti-Clockwise
Pump type Tandem Pump
Rear Inlet Hole Fixing Hole Size M6
Rear Inlet Hole Fixing Hole Spacing 40
Rear Inlet Hole Size 20
Rear Outlet Hole Fixing Hole Size M6
Rear Outlet Hole Fixing Hole Spacing 35
Rear Outlet Hole Size 15
Tariff Code 8413603190
Top hole spacing 106

Models

Case IH
CS100 (CS Series), CS78 (CS Series), CS80 (CS Series), CS86 (CS Series), CS90 (CS Series), CS94 (CS Series)

Manufacturer Part Numbers

Bosch
0510765351
Case IH
132375101, 1-32-375-101
Steyr
132375101, 1-32-375-101
