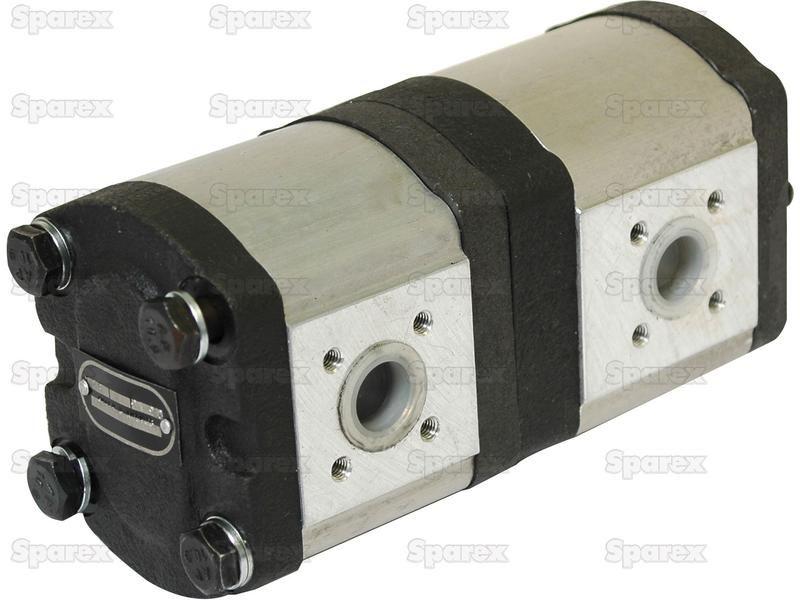

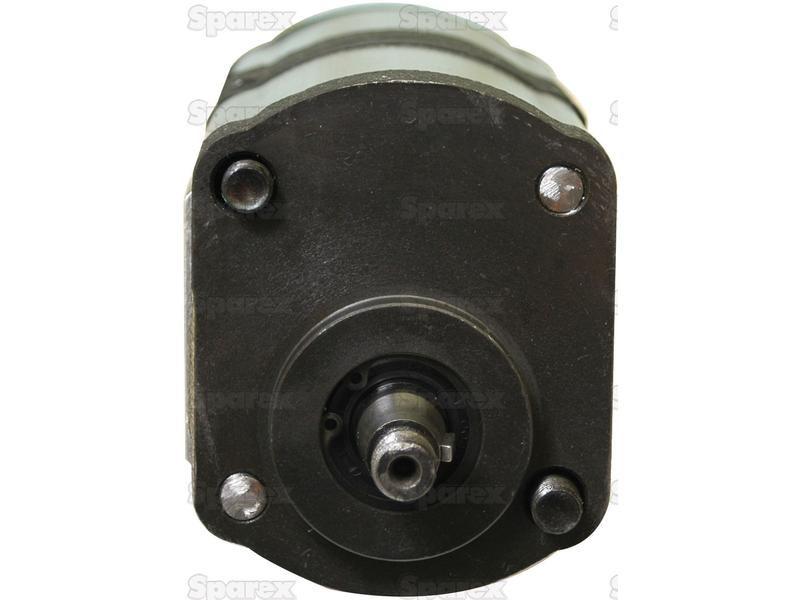

Tandem Hydraulic Pump for Deutz-Fahr DX4.70 (DX4 Series)

Part Number: S.34425Categories: Hydraulics
Tandem Hydraulic Pump for Deutz-Fahr DX4.70 (DX4 Series)
Tandem Hydraulic Pump for Deutz-Fahr DX4.70 (DX4 Series)
Tandem Hydraulic Pump for Deutz-Fahr DX4.70 (DX4 Series)
Tandem Hydraulic Pump for Deutz-Fahr DX4.70 (DX4 Series)

Part Number: S.34425

Grade: Replacement

Part Details

Tandem Hydraulic Pump

Technical Information

Brand Sparex

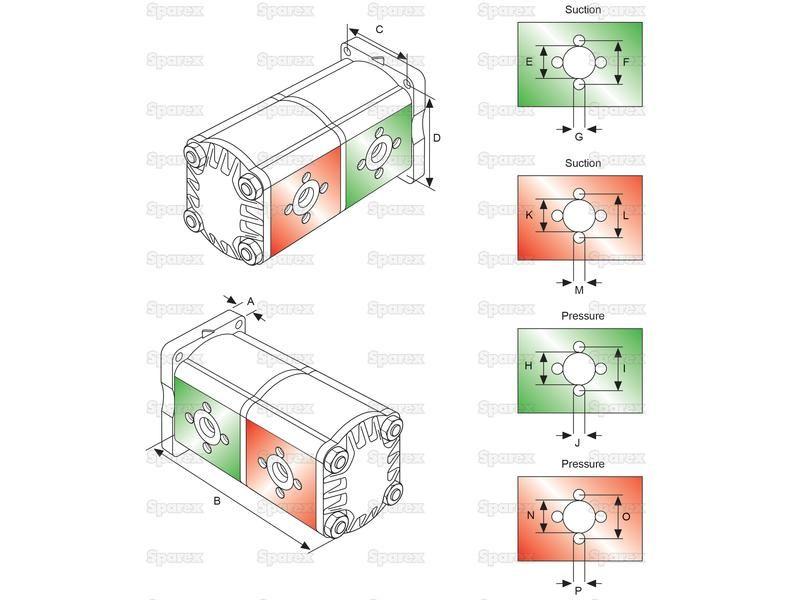

Diagram specifications A: , - B (mm): 206, - C: 60, - D: 60, - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M6, - K: 20, - L: 40, - M: M6, - N: 15, - O: 35, - P: M6.
Front inlet hole fixing hole size M6
Front inlet hole fixing hole spacing 40
Front inlet hole size 20
Front outlet hole fixing hole size M6
Front outlet hole fixing hole spacing 35
Front outlet hole size 15
Inner max. gallon per minute 12.68
Inner maximium litres per minute 48
Length mm 206
Outer max. gallons per minute 8.72
Outer maximium litres per minute 33
Pump rotation Anti-Clockwise
Pump type Tandem Pump
Rear Inlet Hole Fixing Hole Size M6
Rear Inlet Hole Fixing Hole Spacing 40
Rear Inlet Hole Size 20
Rear Outlet Hole Fixing Hole Size M6
Rear Outlet Hole Fixing Hole Spacing 35
Rear Outlet Hole Size 15
Side hole spacing 60
Tariff Code 8413603190
Top hole spacing 60

Manufacturer Part Numbers

Bosch
0510 665 382, 0510665382, 510665382
Case IH
155700750002, 155700750003
Deutz-Fahr
01174410, 01176000, 4345364
Fendt
G380940010110
