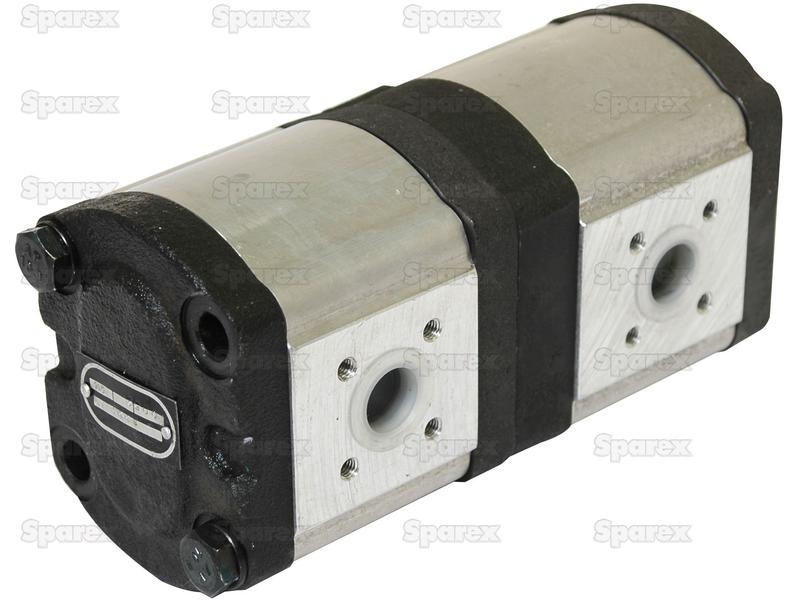

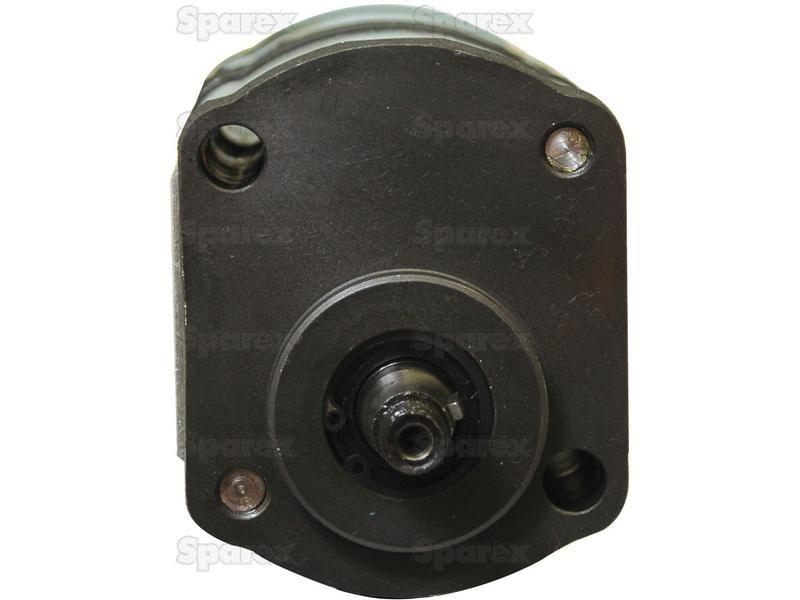

Tandem Hydraulic Pump for Deutz-Fahr DX6.30 (DX6 Series)

Name: Tandem Hydraulic Pump for Deutz-Fahr DX6.30 (DX6 Series)
SKU: ABLXS.34345
Price: 348.16 GBP
Availability: OutOfStock

Part Number: S.34345Categories: Hydraulics

Part Number: S.34345

Grade: Replacement

Part Details

Tandem Hydraulic Pump

Brand	Sparex

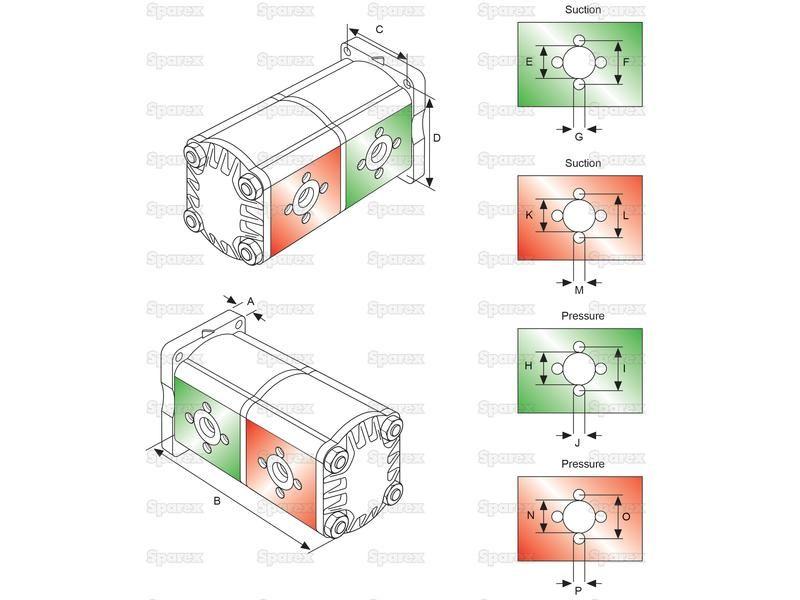

Diagram specifications	A: , - B (mm): 200.4, - C: 60, - D: 60, - E: 15, - F: 35, - G: M6, - H: 20, - I: 40, - J: M6, - K: 15, - L: 35, - M: M6, - N: 20, - O: 40, - P: M6.
Front inlet hole fixing hole size	M6
Front inlet hole fixing hole spacing	35
Front inlet hole size	15
Front outlet hole fixing hole size	M6
Front outlet hole fixing hole spacing	40
Front outlet hole size	20
Inner max. gallon per minute	12.68
Inner maximium litres per minute	48
Length mm	200.4
Outer max. gallons per minute	11.1
Outer maximium litres per minute	42
Pump rotation	Anti-Clockwise
Pump type	Tandem Pump
Rear Inlet Hole Fixing Hole Size	M6
Rear Inlet Hole Fixing Hole Spacing	35
Rear Inlet Hole Size	15
Rear Outlet Hole Fixing Hole Size	M6
Rear Outlet Hole Fixing Hole Spacing	40
Rear Outlet Hole Size	20
Side hole spacing	60
Tariff Code	8413603190
Top hole spacing	60
