Tandem Hydraulic Pump for Case IH, Bosch

Part Number: S.34411Categories: Hydraulics
Tandem Hydraulic Pump for Case IH, Bosch
Tandem Hydraulic Pump for Case IH, Bosch
Tandem Hydraulic Pump for Case IH, Bosch
Tandem Hydraulic Pump for Case IH, Bosch

Part Number: S.34411

Grade: Replacement

Part Details

Tandem Hydraulic Pump Max. LPM: 45.1 | 32.8, Max. GPM: 11.91 | 8.66,Pump rotation: Anti-Clockwise.

Technical Information

Brand Sparex

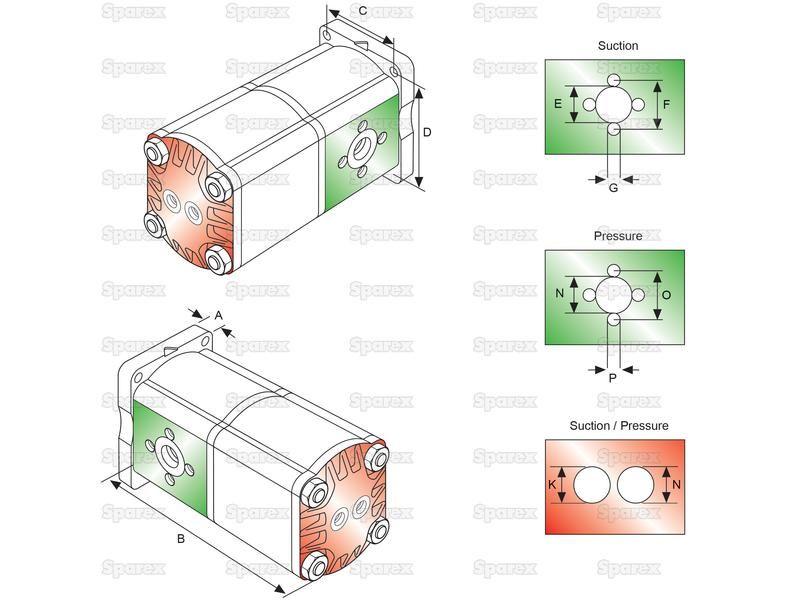

Diagram specifications A: , - B (mm): 178.1, - C: 60, - D: 60, - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M6, - K: M18 x 1.5, - L: , - M: , - N: M18 x 1.5, - O: , - P: .
Front inlet hole fixing hole size M6
Front inlet hole fixing hole spacing 40
Front inlet hole size 20
Front outlet hole fixing hole size M6
Front outlet hole fixing hole spacing 35
Front outlet hole size 15
Inner max. gallon per minute 11.91
Inner maximium litres per minute 45.1
Length mm 178.1
Outer max. gallons per minute 8.66
Outer maximium litres per minute 32.8
Pump rotation Anti-Clockwise
Pump type Tandem Pump
Rear Inlet Hole Size M18 x 1.5
Rear Outlet Hole Size M18 x 1.5
Side hole spacing 60
Tariff Code 8413603190
Top hole spacing 60

Models

Case IH
1055 (55 Series), 1055XL, 1056 (56 Series), 1056XL, 955 (55 Series), 955XL, 956 (56 Series), 956XL

Manufacturer Part Numbers

Bosch
0510565362, 0510565396
Case IH
3220221R91, 3223932R93, 3223932R94
